Carbonated Soft Drinks PET Bottling line

Line capacity:
– 36,000 bph @ 1.5L water
– 35,000 bph @ 1.5L soft drinks – sweet
– 32,000 bph @ 1.5L soft drinks – light

Status of the line: Dismantled and packed in sea containers + wooden boxes
Used for filling: Water and CSD with 7.5 g of CO2
Cap type: 28 mm, custom design of the factory
Packages: Film only (3×2)
Condition: Very good condition, regularly serviced

The line is composed of:

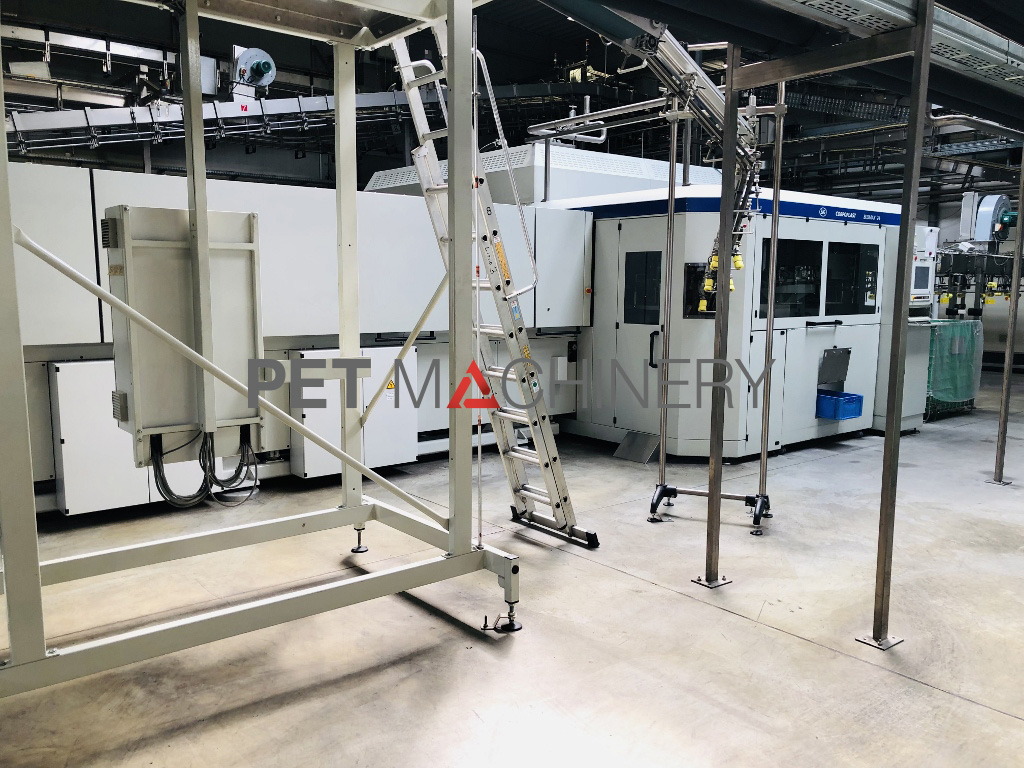

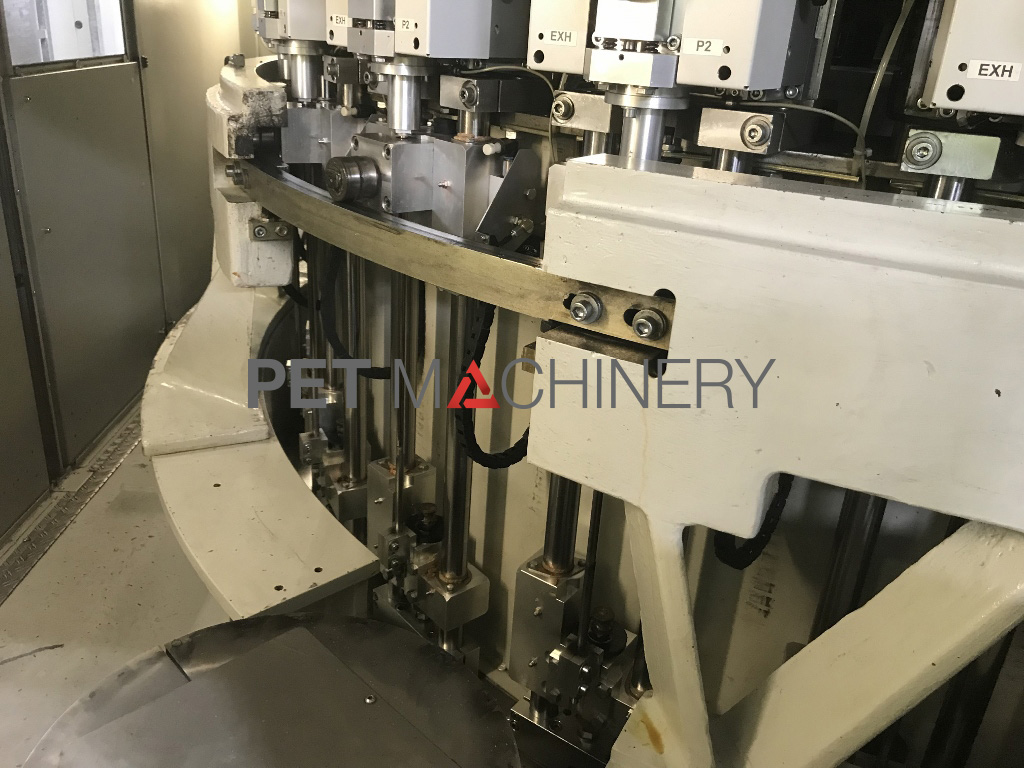

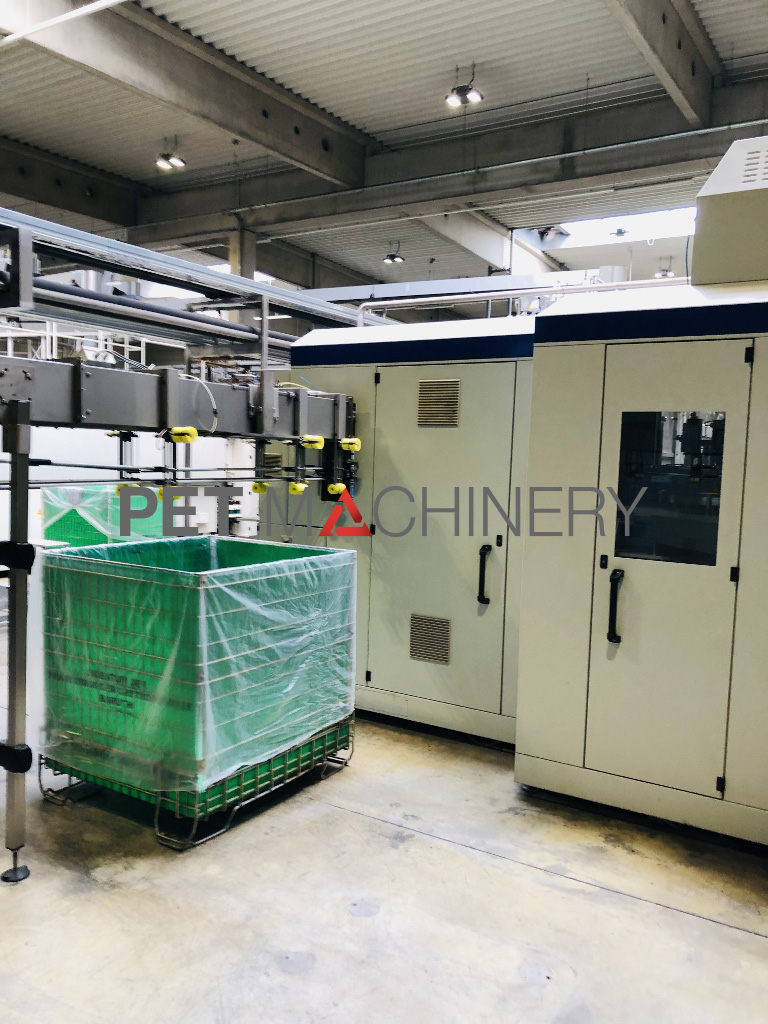

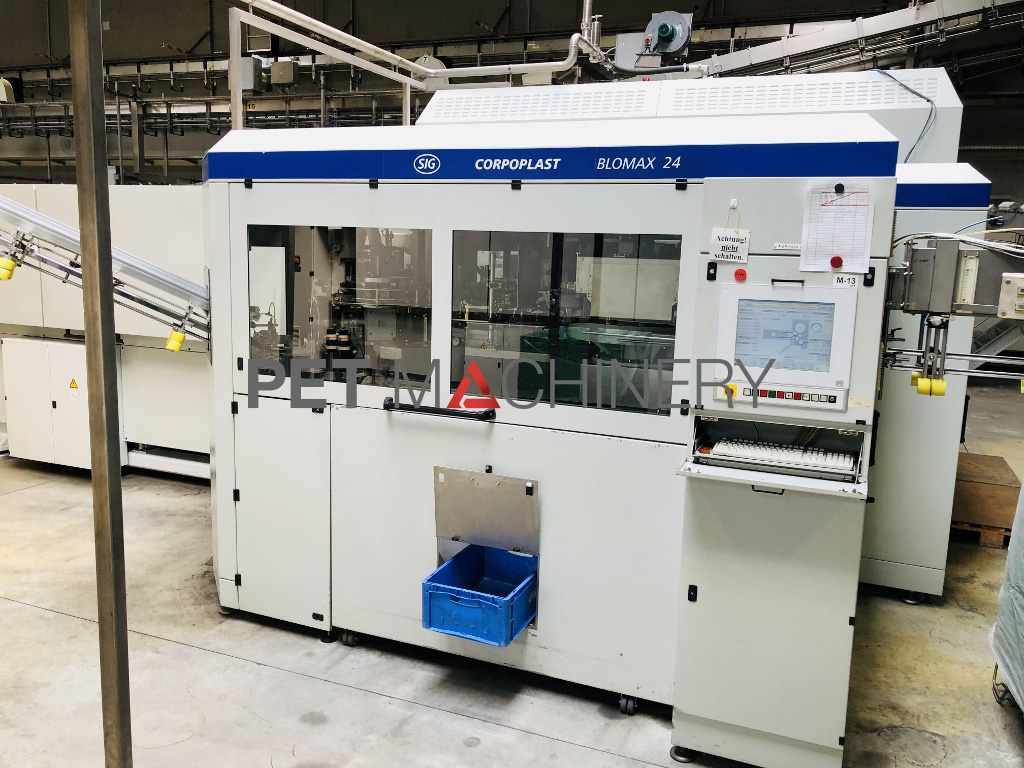

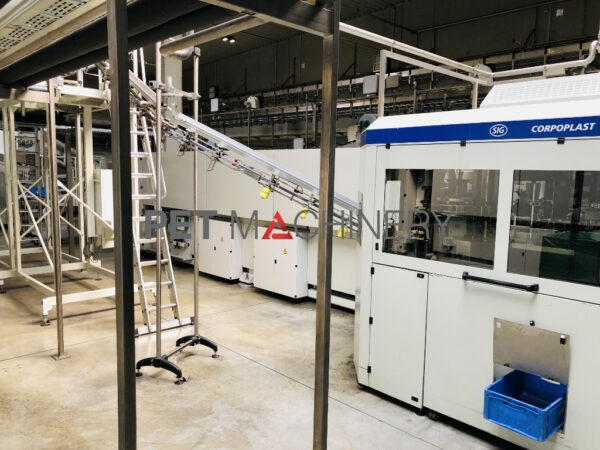

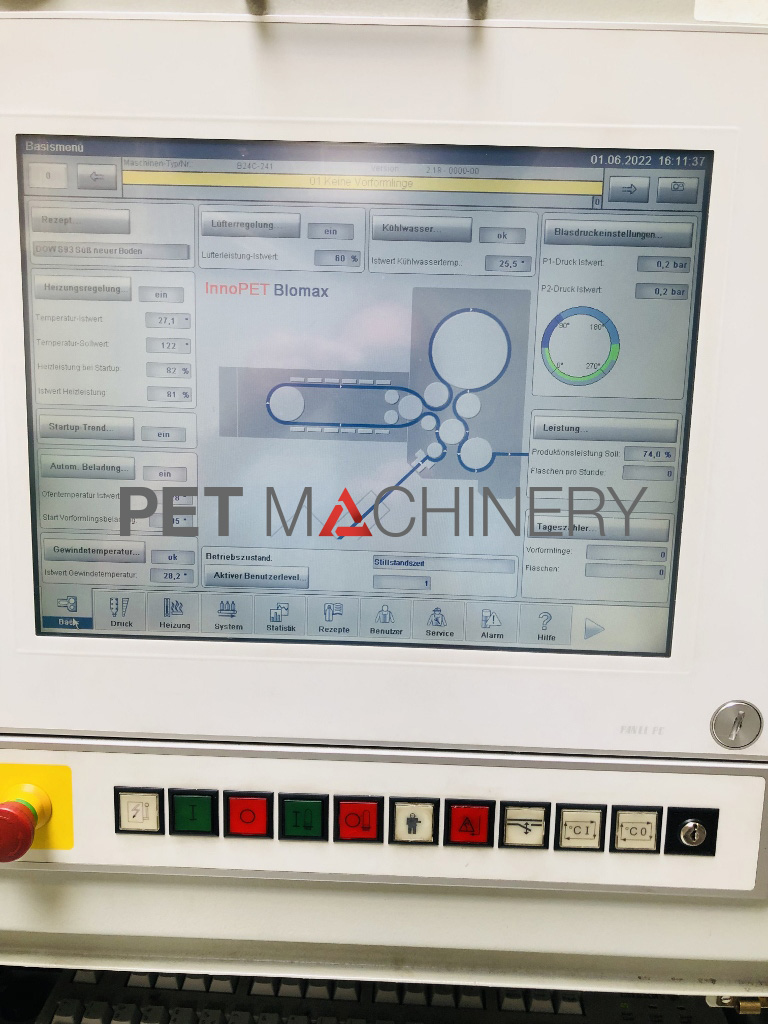

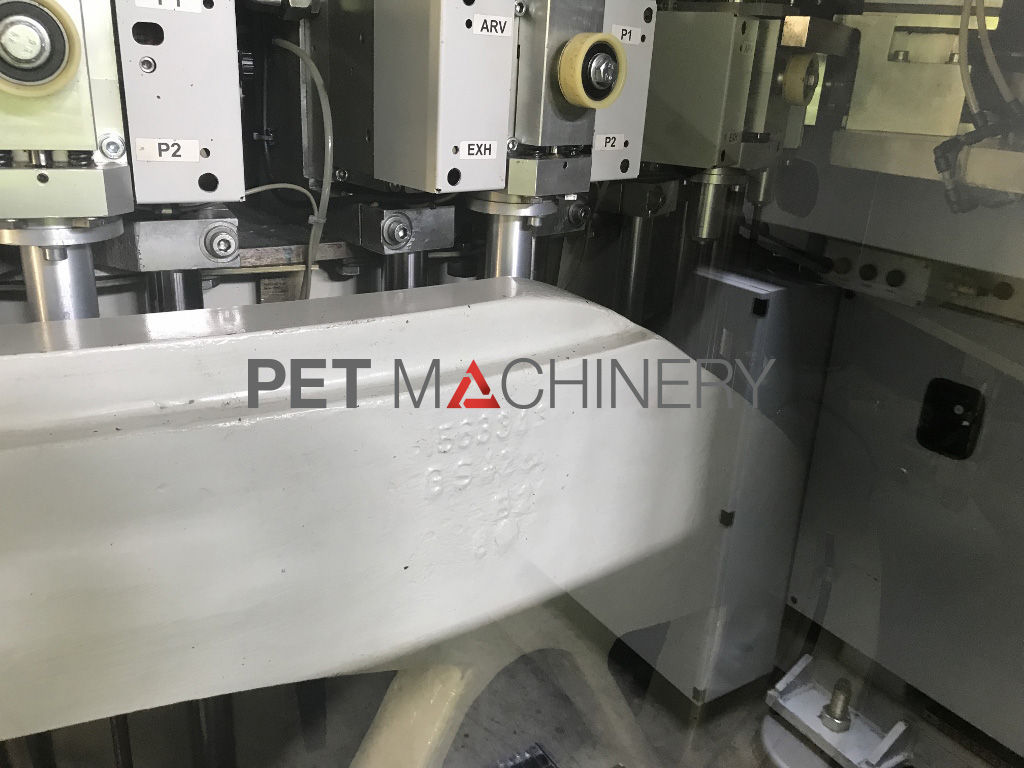

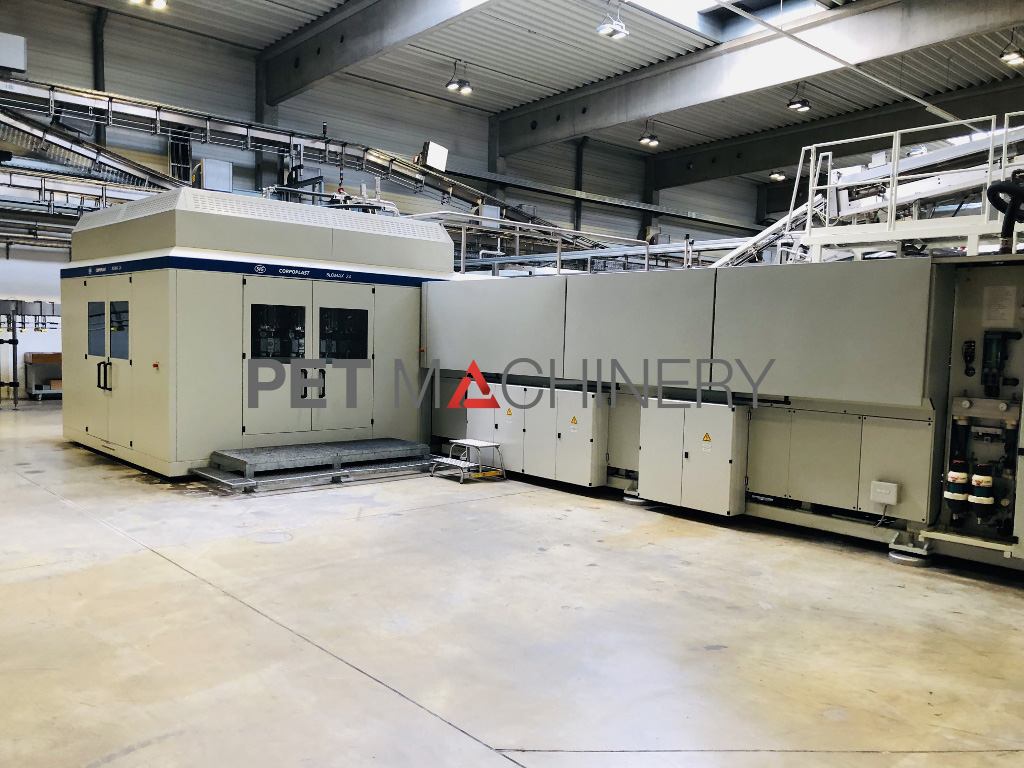

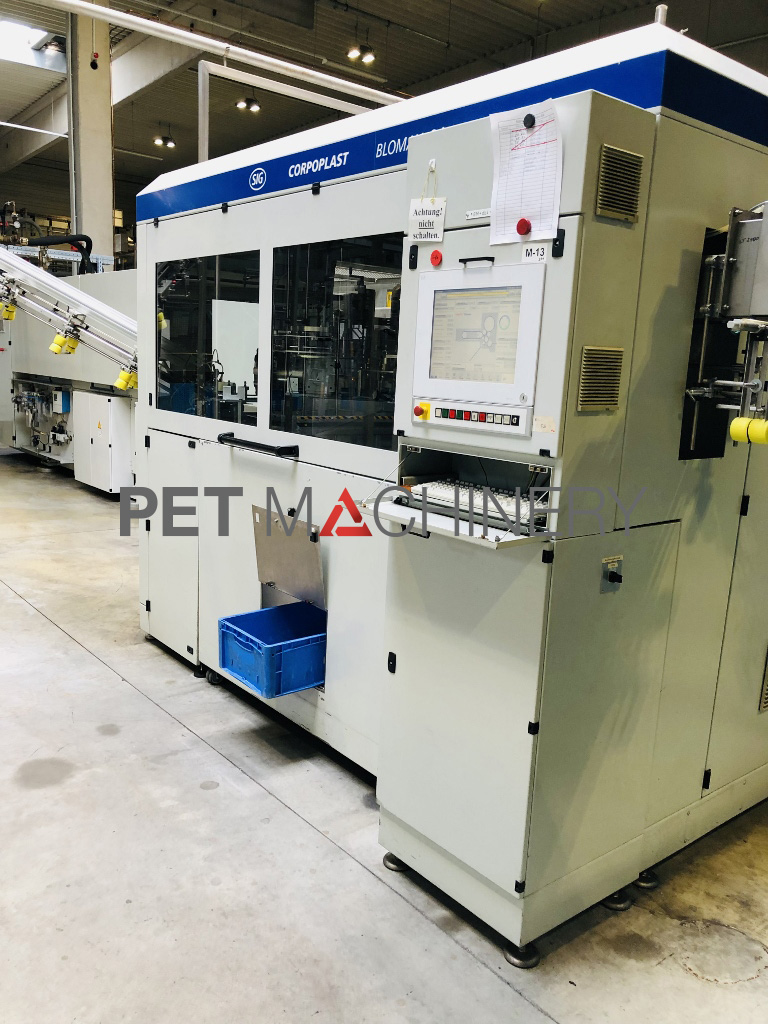

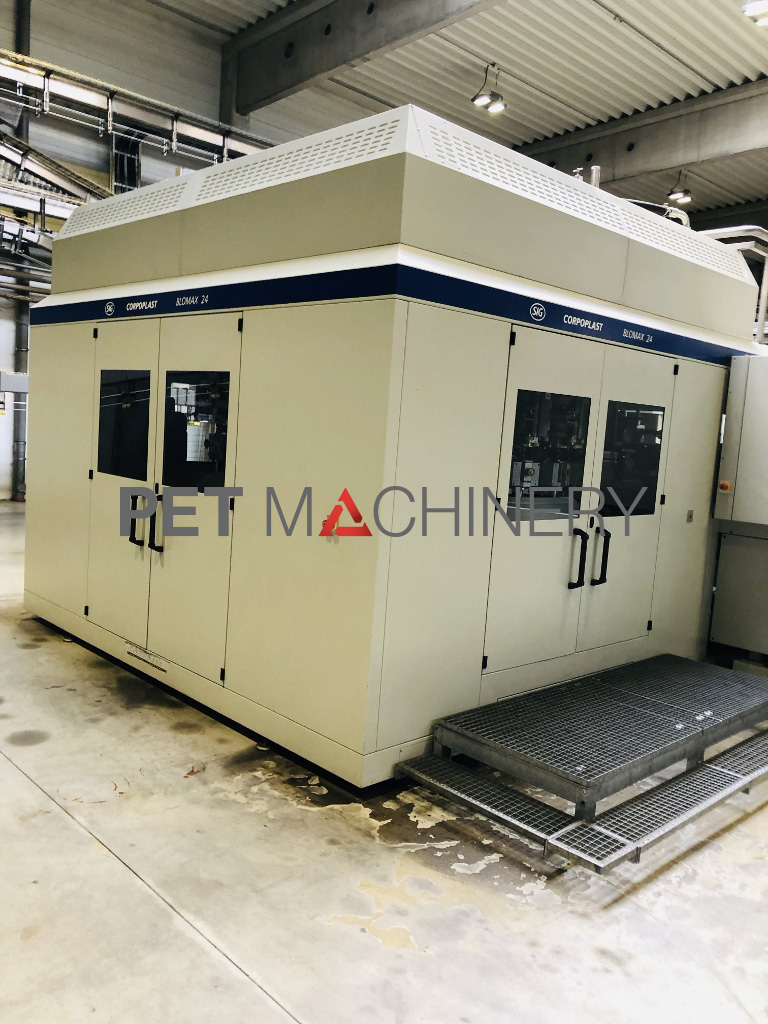

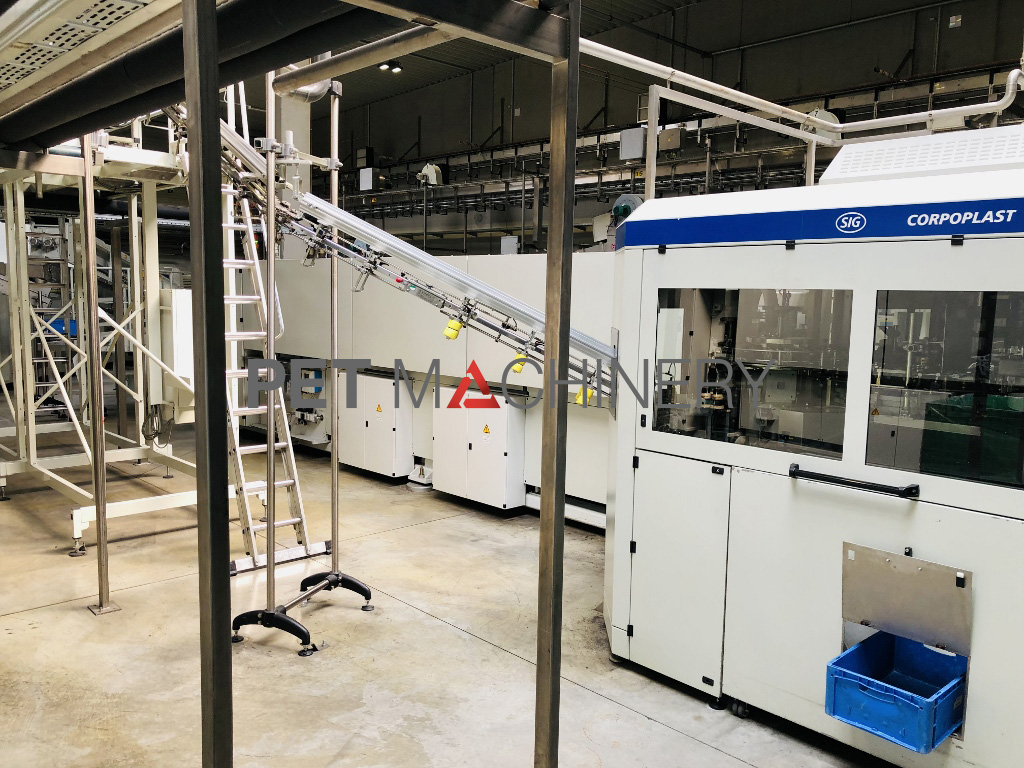

* KHS Blomax 24 PET stretch blow moulding machine (2008)
– blow moulds included: No
– Includes: Preform tipper Mucki MD3 (2001), preform hopper SBT, preforms elevator HFT, preform conveyor RGTD, strapping band RFT, chute ASTK (Tanner) (2008)

* KHS Innofill EV-VF Filler – Capper (2000)
– No. of filling valves: 176, electronical filling system
– No. of capping heads: 22
– Features: Clean room housing with doors.
– Caps feeding system NSM, 2 storage positions with tipper. Foam cleaning with ECOLAB (2001) 3 dosing units with hot steam.

* KHS Contimix 65/6/T20 Mixer (2001)
– Capacity: 65.000 l/h, 5 components
– Features: Brix measurement (Anton Paar), pumps (Hilge)

* KHS Innocheck CUB Cap and fill level control (2013)
– Features: All-round detection with camera system, pusher in container

* Sacmi Opera 300 RF 26T/R S1/E1 labeller (2012)
– Label position: wrap-around, 1 labelling station with label from reel
– Other remarks: 26 bottle plates

KHS Innocheck CUB label control (2015)
– Features: Light barrier on the carousel of the labeling machine. Pusher in container.

* KHS Kisters Innopack SP060V shrink packer and tunnel (2001)
– Packing: Film only, double lane 3×2
– Capacity: 60 cycles/minute

* KHS Innopack CMS 70/2 handle applicator (2009)
– Output capacity: 70 cycles/min., double-track processing
– Laminated handle self-adhesive from the roll, magazines for label strips.

* Conveyor systems:
– Air conveyors: Included (NTS, Mistral blowers, year 2000, pneumatical adjustable rail for 0.5 L and 1.5 L bottles)
– Bottle conveyors: Included (KHS, plastic chain, rigid railings, dry lubrication)
– Pack conveyors: Included (Paxona + Schaefer, year 2009)

* Palletizer: NOT AVAILABLE
* Pallet wrapper: NOT AVAILABLE

The above line has been dismantled and packed in sea containers + wooden boxes in December 2023, and has been moved to a warehouse near European port.
Photos available of the marking & dismantling, as well as the packing & loading of the equipment.
Immediately available.
