Complete PET Bottling line for Carbonated Soft Drinks
Year of Manufacture | 2002 - 2012 |
---|---|
Condition | Very Good |
Availability | Immediate |
Sold Status | Sold |
View More Images
Login or Register to view 228 images for this product.

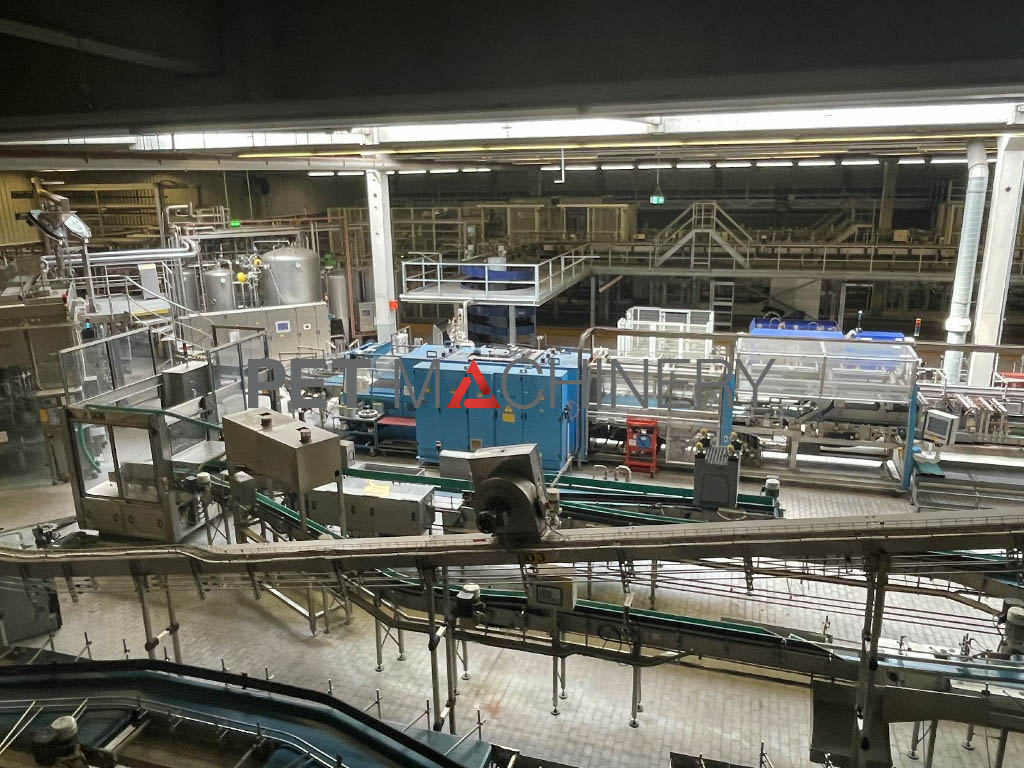

Complete PET Bottling line for Carbonated Soft Drinks
Line capacity
28,000 bph @ 1.5L CSD
32,000 bph @ 1.0L CSD
32,000 bph @ 0.5L CSD
Status of the line: Stopped in June 2022, available immediately
Used for filling: CSD / Water
Cap type: 28 mm, short neck PCO1881
Pack formats: Film only Euro 1.200 x 800mm, DüDo 600 x 800mm, Industrial 1.200 x 1.000mm
Condition: Very good condition, regularly serviced
The line consists of:

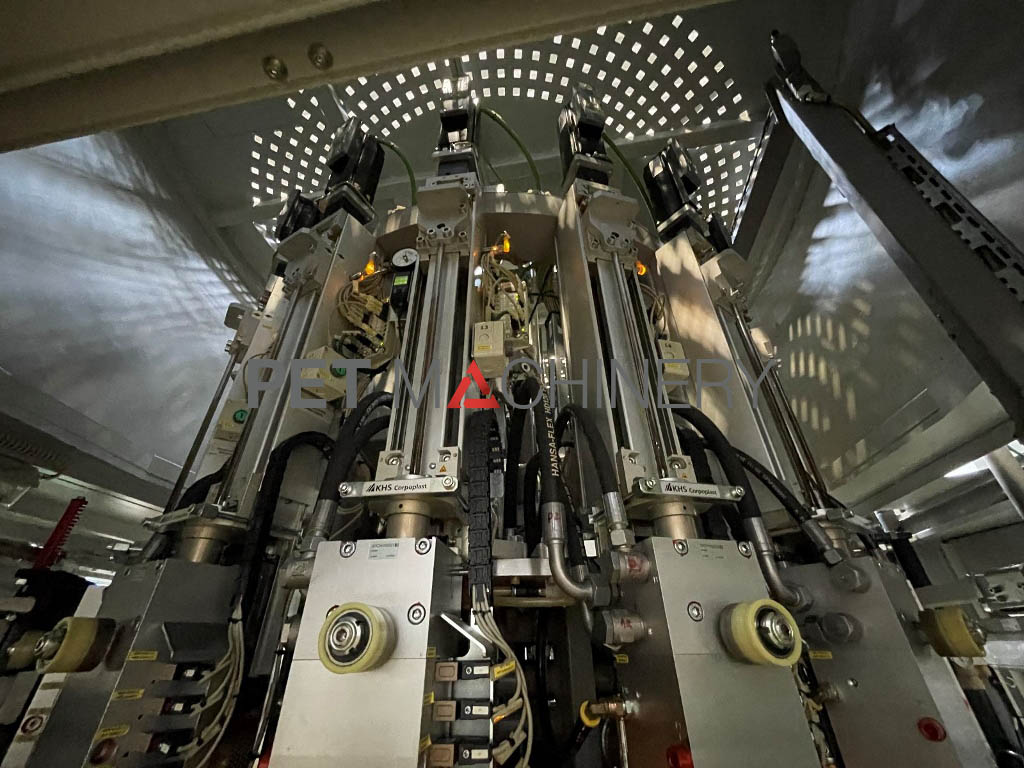

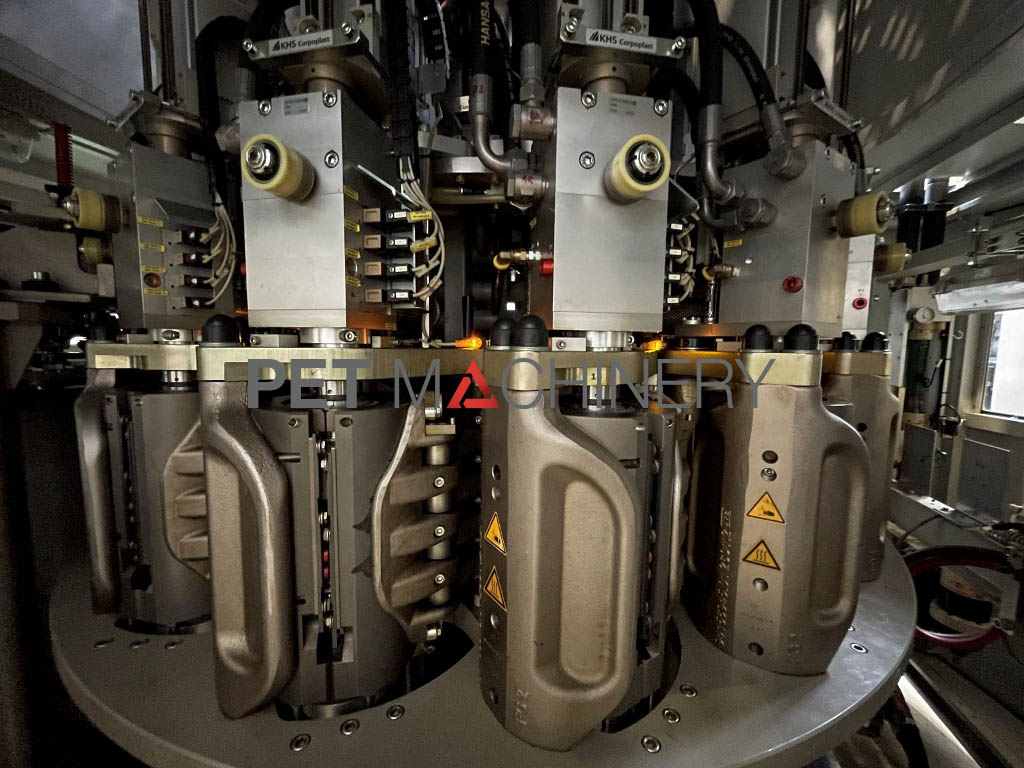

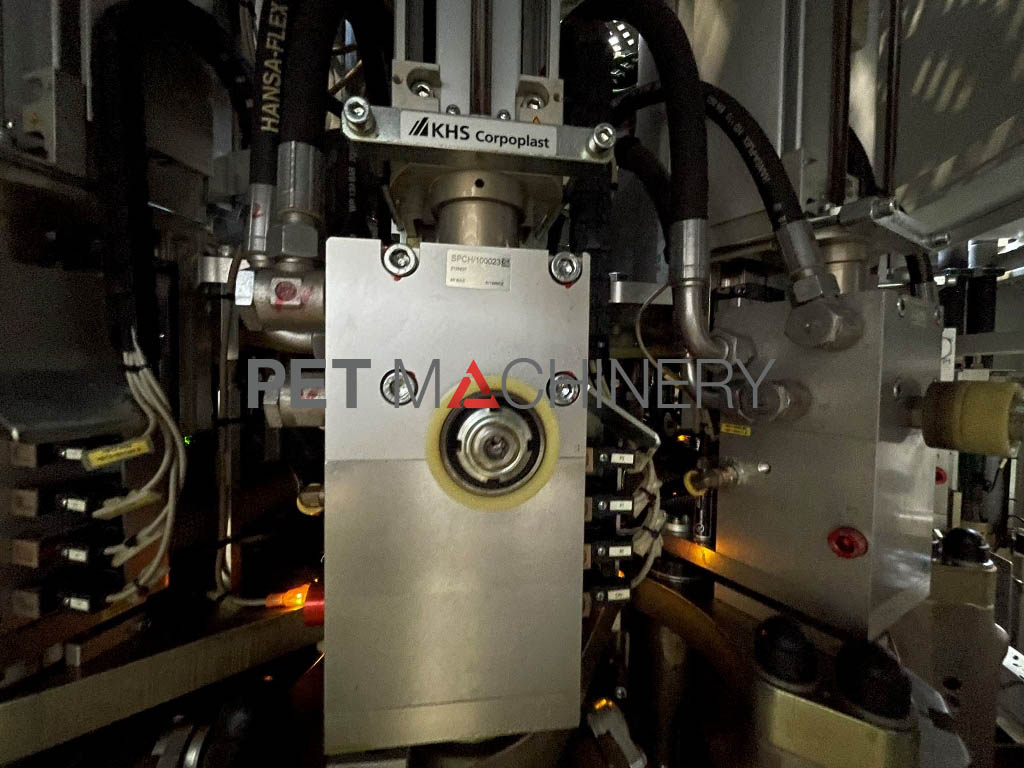

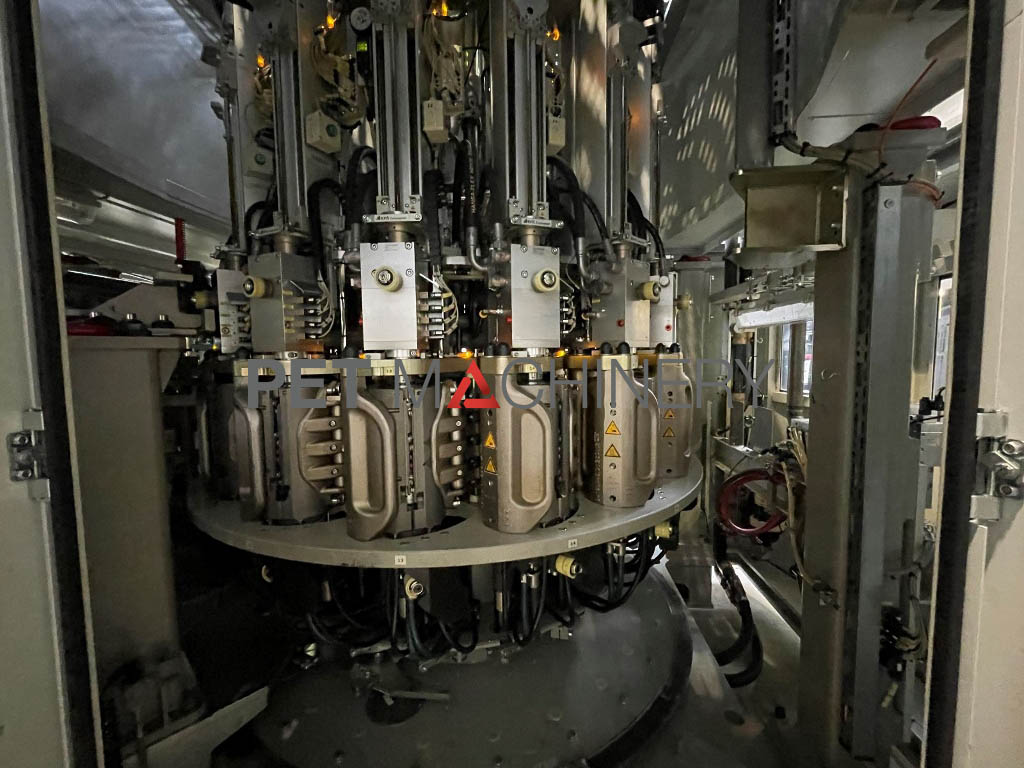

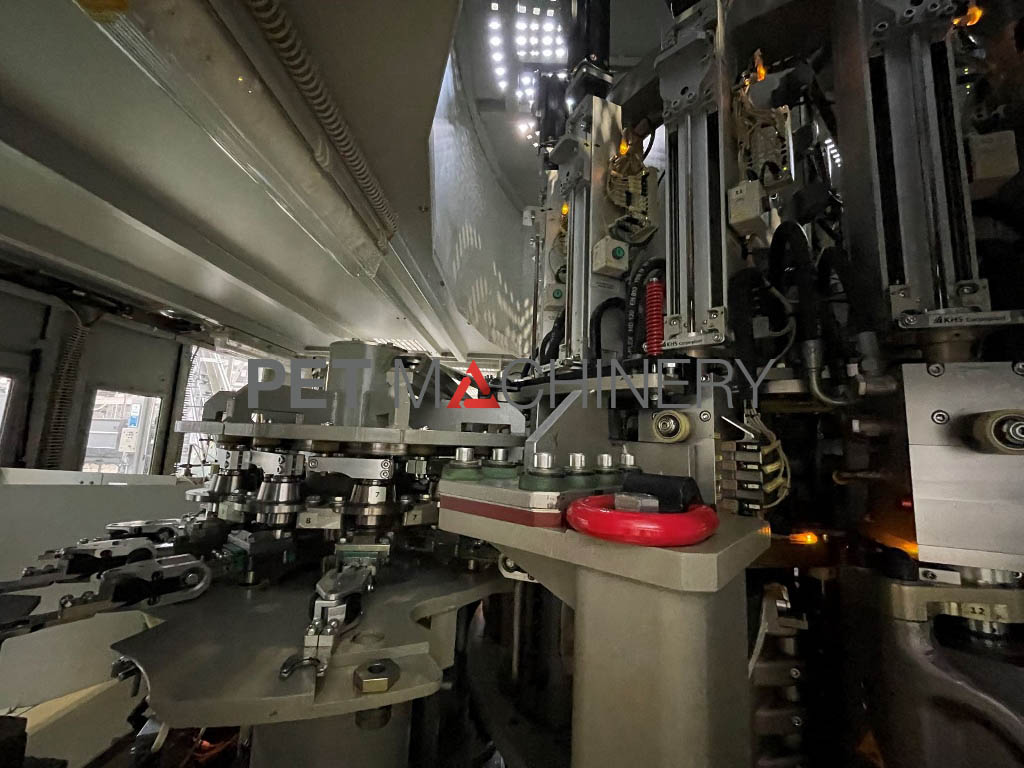

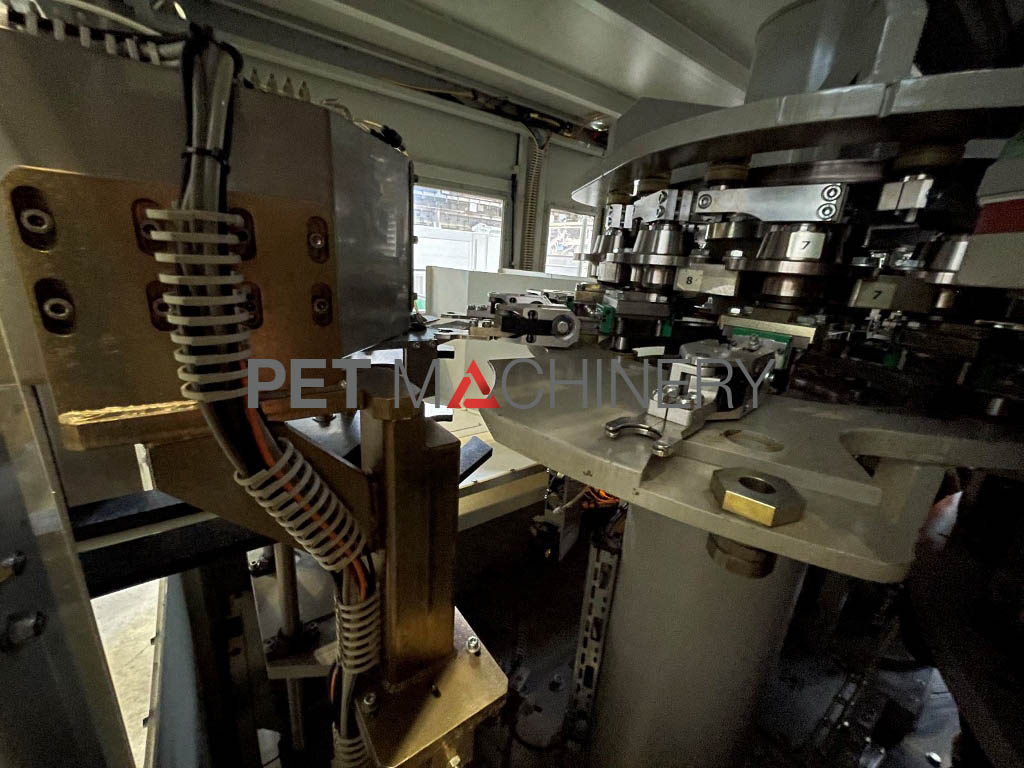

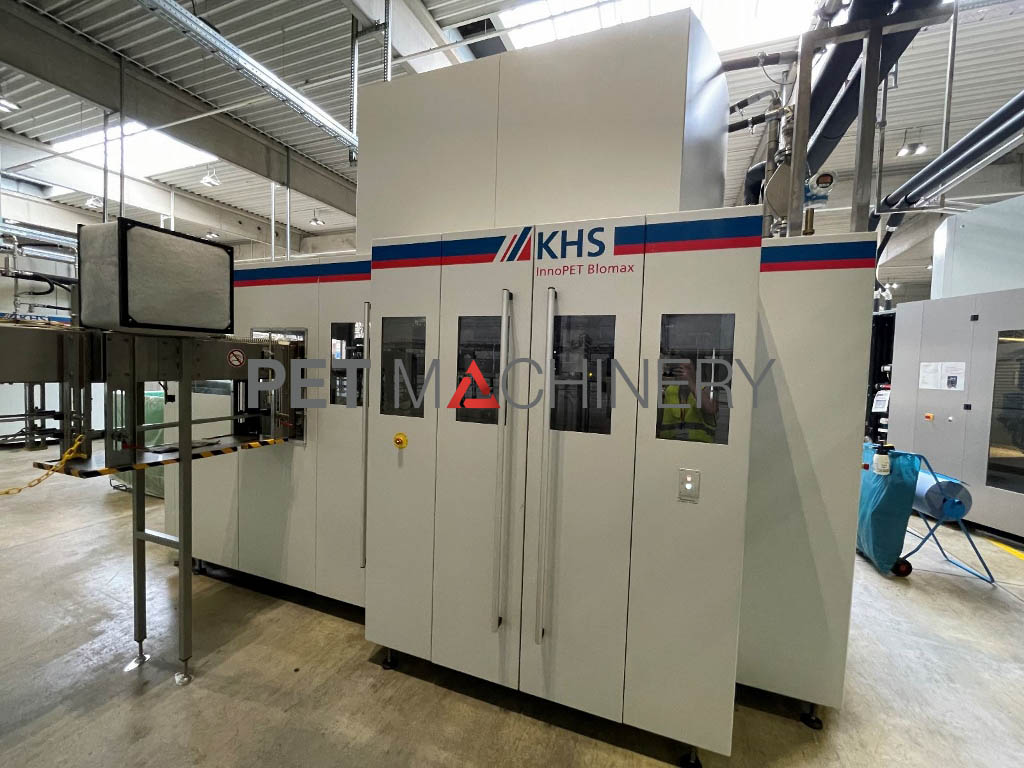

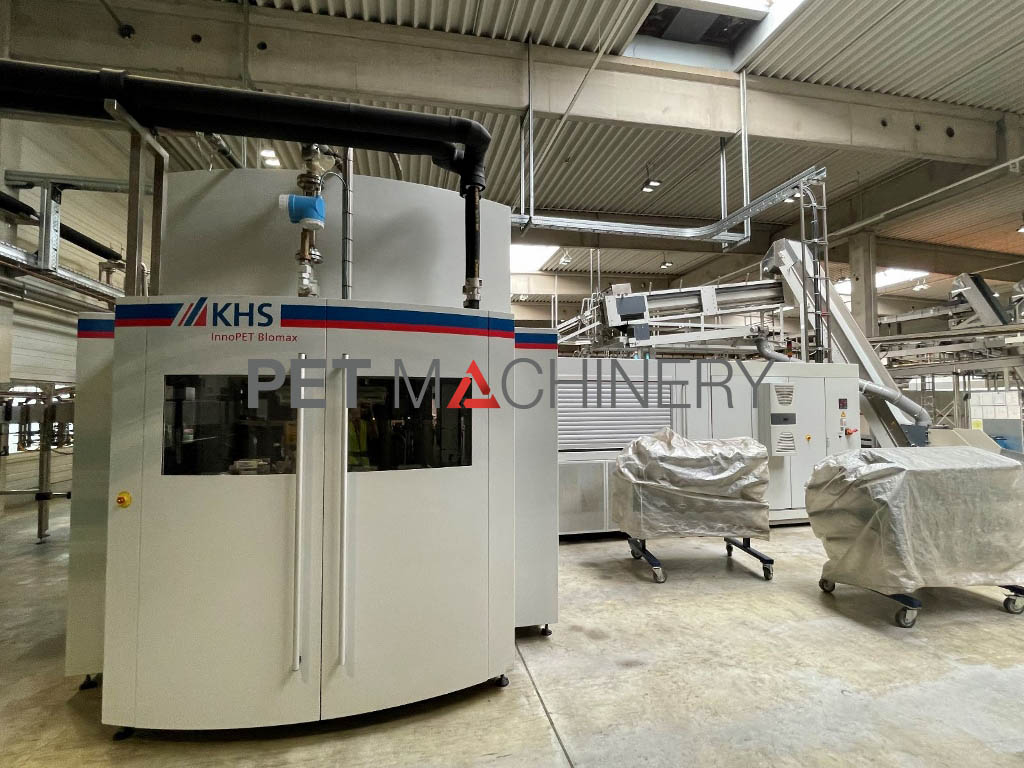

* KHS Blomax 16S PET stretch blow moulding machine (2012)
– Pre-blowing pressure 12 bar, final blowing pressure 23 bar, air conveyor rigid railings.
– Includes: preform tipper (Mucki), preform hopper/elevator (Tanner), preform orientation (KHS InnoPET F40S).
– Blow moulds: not included.
* KRONES VODM-PET 5.040-154-103-SV22 Filler/Capper (2002)
– No. of filling valves: 154, pitch 103mm, nitrogen injector
– No. of capping heads: 22

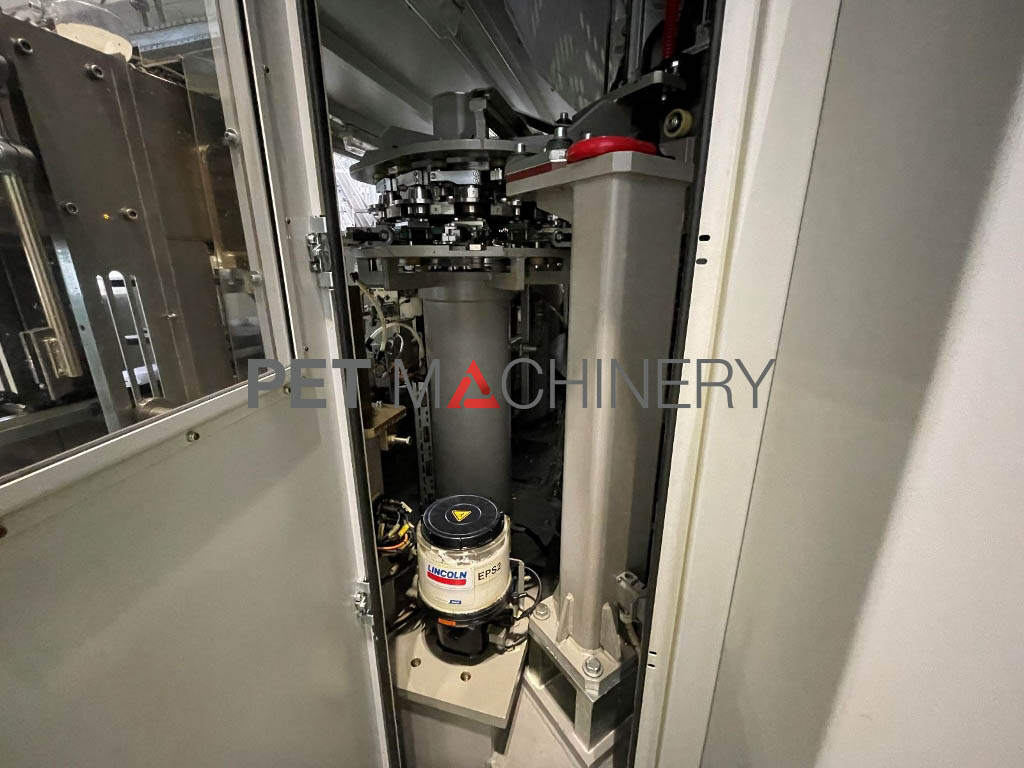

– Solitaire glass-housing, clean room roof, central lubrication.
– Incl. cap feeder (NSM) with 2 positions for cardboard box on pallets.
* KHS Innocheck CUB Cap and fill level control (2012)
– All-round detection with camera system, pusher in container.
* Videojet 3320 Laser date coder
* Sacmi Opera 300 RF 26T/R S1/E1 labeller (2012)
– Label position: wrap-around, 1 labelling station with label from reel.
– parallel bottle transport, 26 bottle plates.
* KRONES Checkmat FE-G Label control (2002)
– Gamma detection system, linear rejection.
* KHS Kisters Innopack SP060V Shrink packer (2002)
– Packing: Film only, double lane 3×2
– Capacity: 60 cycles/minute
* KHS Innopack CMS Handle applicator (2009)
– double-lane handling, 2 laminated tapes, 2 magazines for paper stripes with transparent foil.
* KRONES Pressant Universal palletizer (2002)
– With retrofitted 2-module Robobox (year 2008). Layer pad inserter with linear carriage, elevator machine with loading station. Row pusher for complete layer, max. 1.200 x 1.000mm, roller shutter, motorized centering.
* Strema A5000BII Pallet wrapper (2008)
– double head, 2 foil coils, lifting and hold-down device.
* Conveyor systems:
– Air conveyors: included
– Bottle conveyors: included
– Pack conveyors: included
