KHS PET Bottling line for CSD Beverages

Year of Manufacture 2001 - 2015
Condition Very Good
Availability January 2023
Sold Status Sold

Price Estimate

There may be an estimate available for this product.
Login or Register to find out more.

Login or Register to add this item to your Watch List.

KHS PET Bottling line for CSD Beverages

Available in January 2023. Can be seen in production until then.

Line capacity:
29,500 bph @ 1.5L with Orange Lemonade
34,800 bph @ 1.5 L with Sparkling Water

Status of the line: In operation. Will be available in January 2023
Used for filling: CSD / Water
Cap type: 28 mm, custom design of the factory
Packages: Film only (3×2) Euro 1.200 x 800mm; DüDo 600 x 800mm
Condition: Very good condition, regularly serviced

Consists of:

* KHS Blomax B24C Blow moulding machine, year 2008
– Blow moulds included: No
– Includes preform tipper Mucki MD3, year 2001; silo SBT, overhead conveyor FBT, preform feeder ZVT, horizontal belt RFT, Preform-channel ASTK, Tanner, year 2008, stainless steel execution.

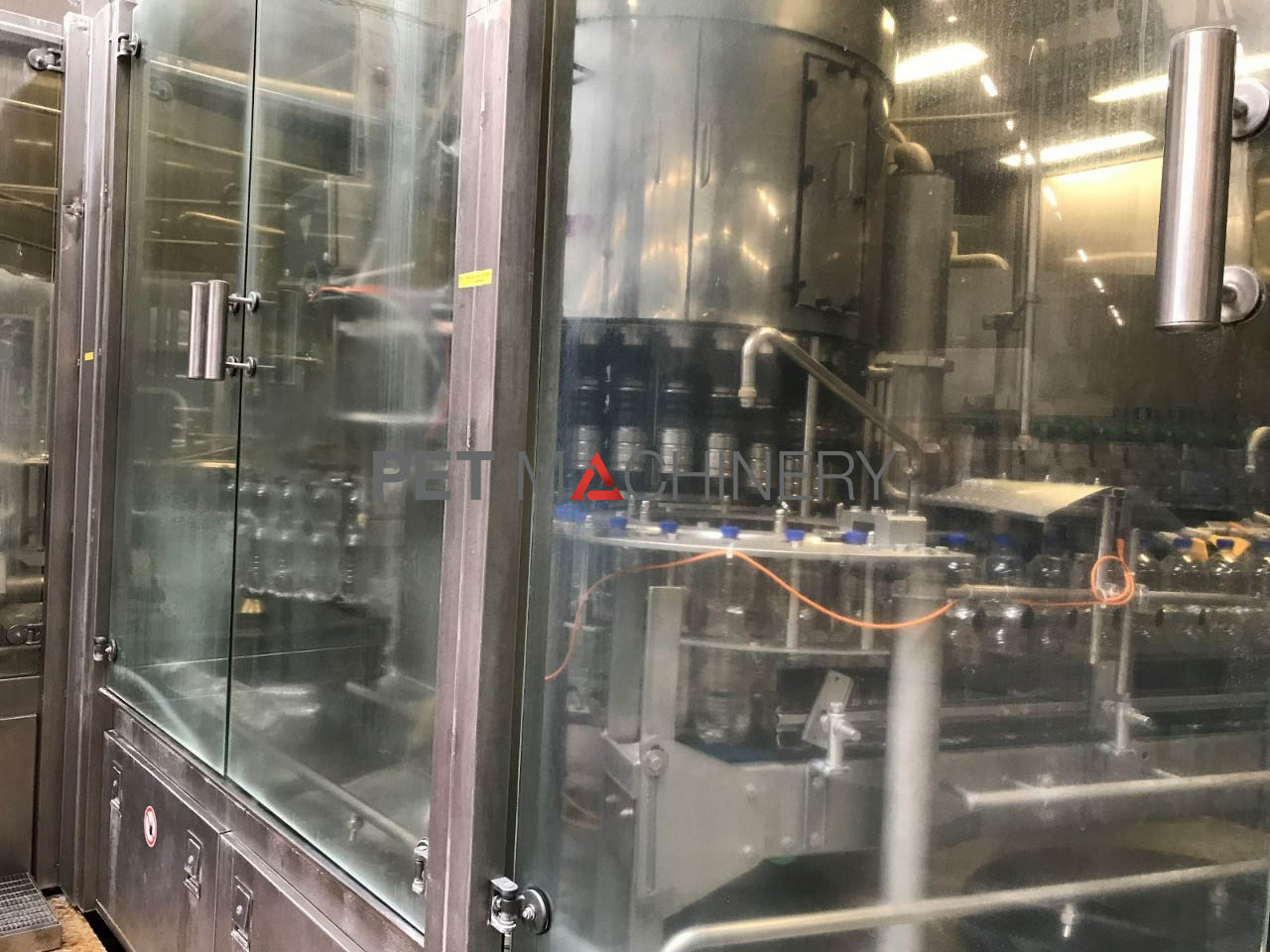

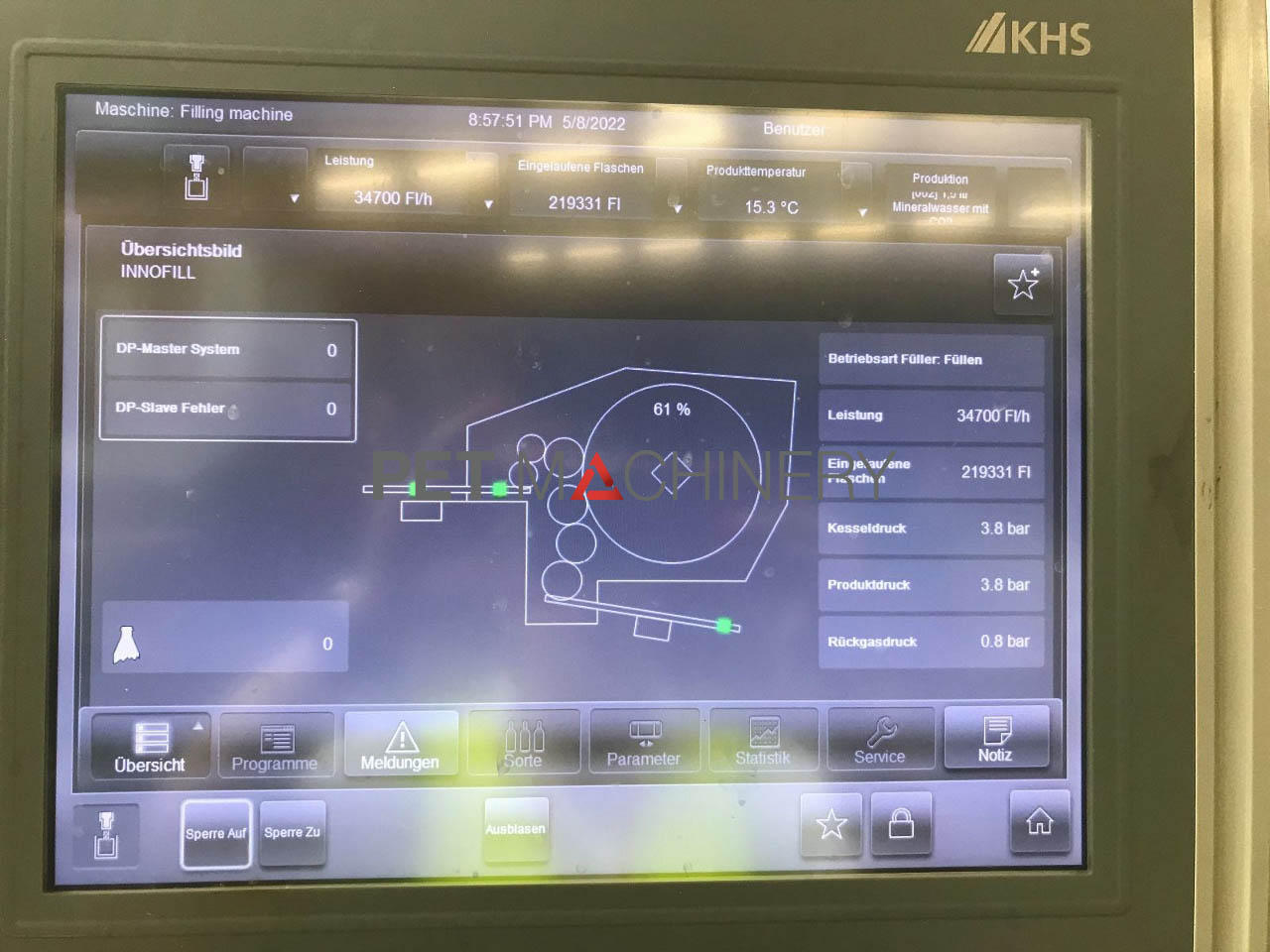

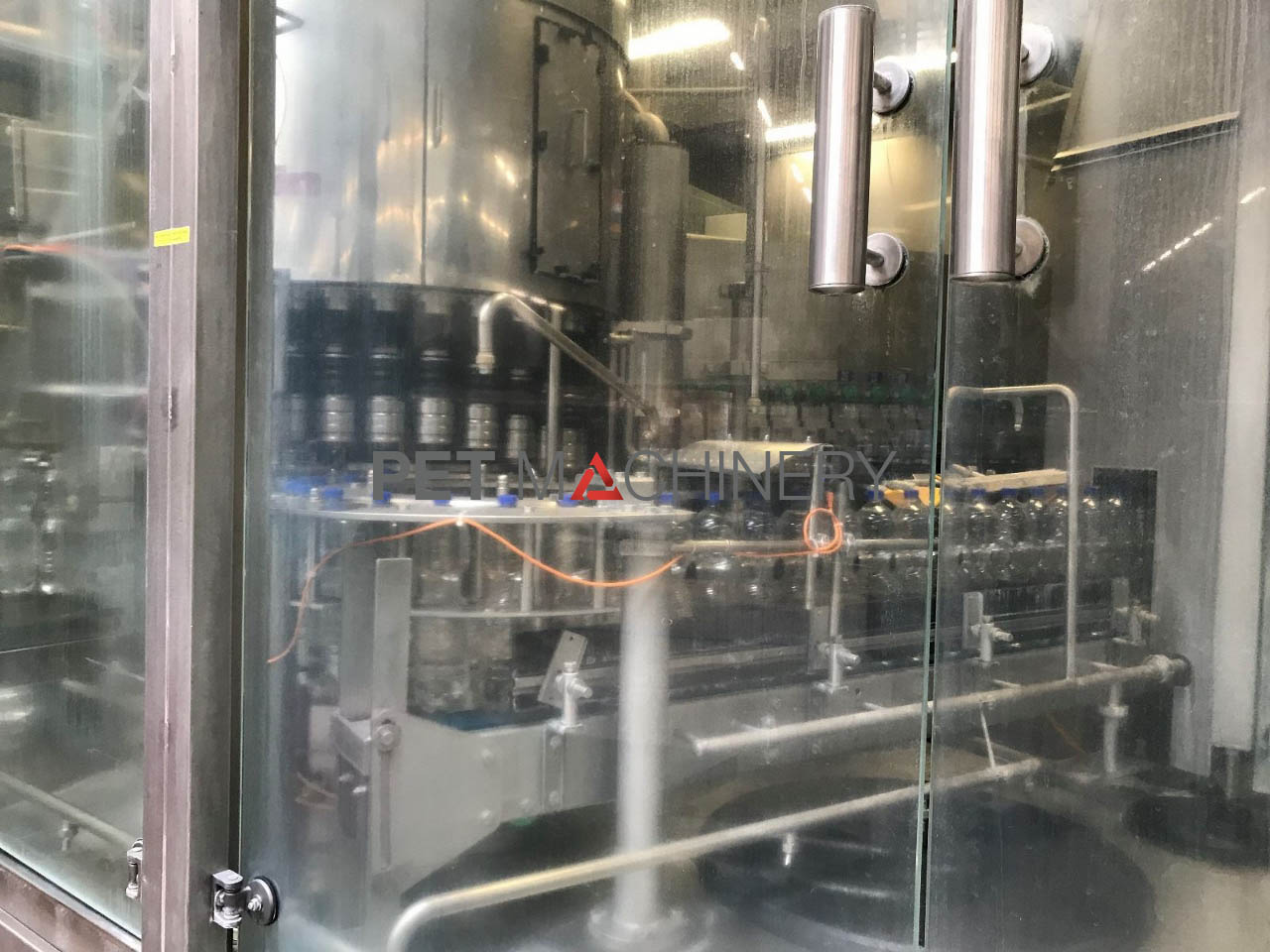

* KHS Innofill DRV-VF-PET Filler/Capper, year 2000
– No. of filling valves: 176, electronical filling system.
– No. of capping heads: 27
– L-R rotation
– Pitch: 102 mm
– Foam cleaning, clean room with full housing.

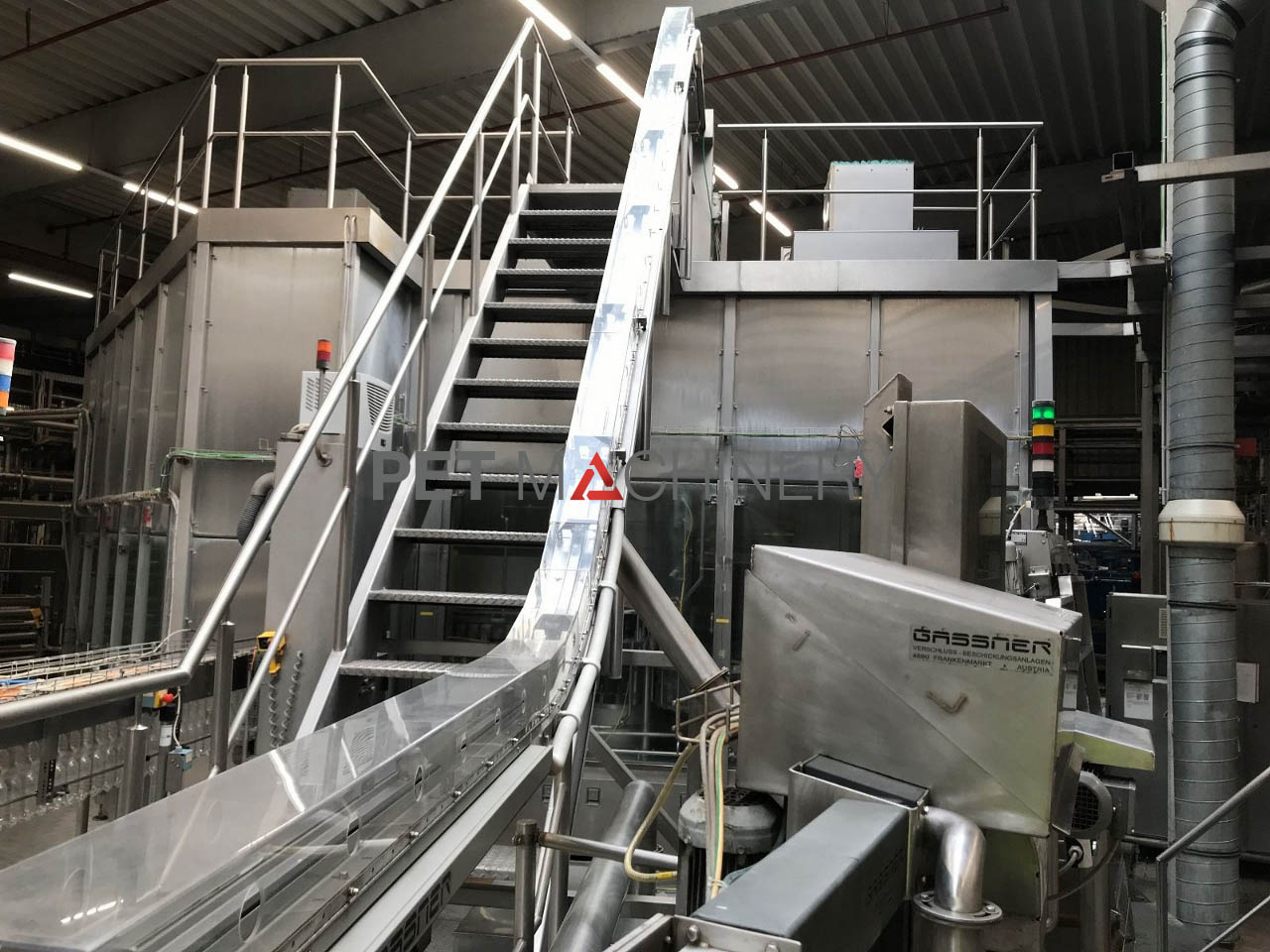

– Cap feeder Gassner DS600, year 2011, 2 chutes, cascade elevator, sorting feed in closed groove.

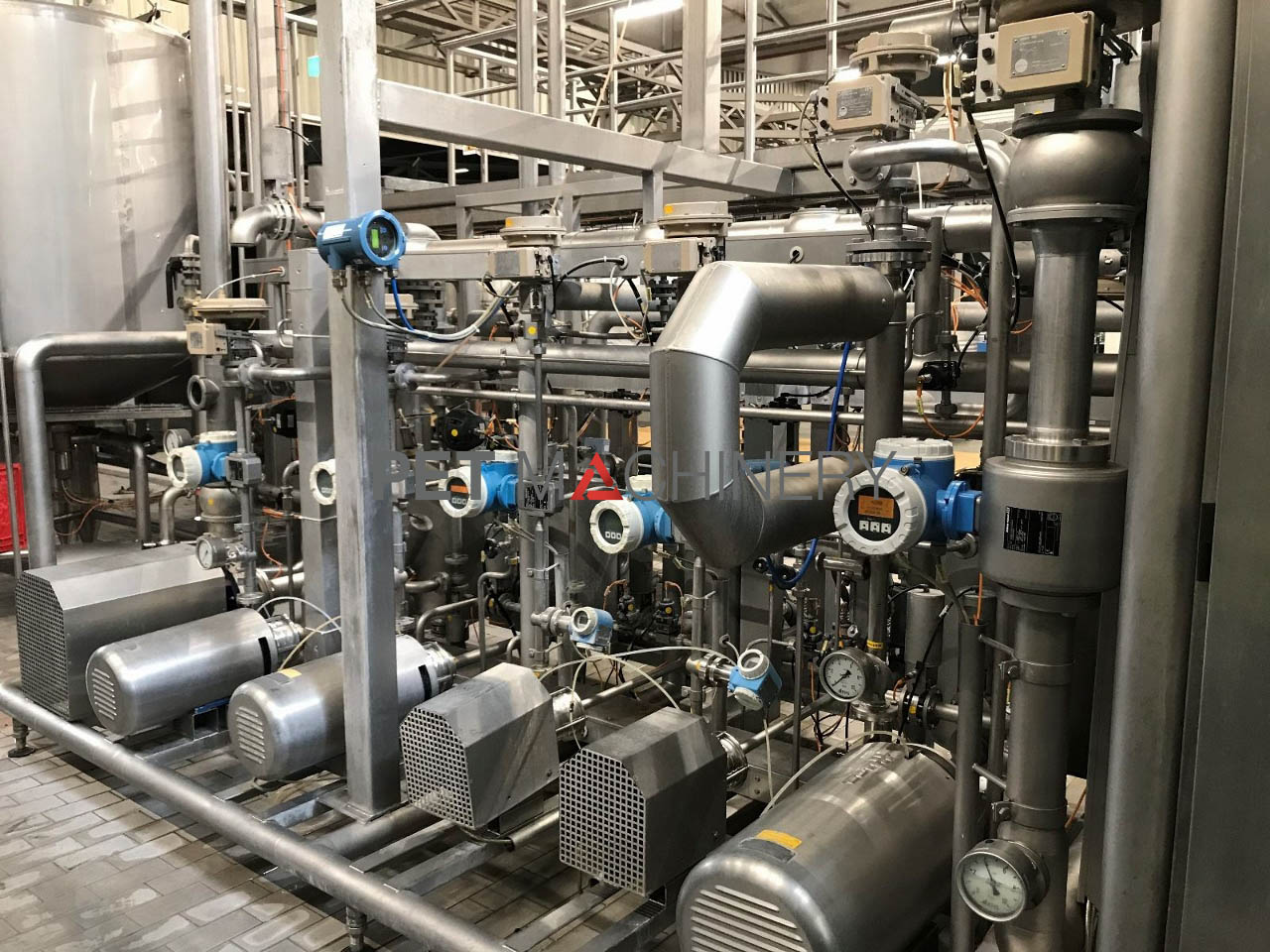

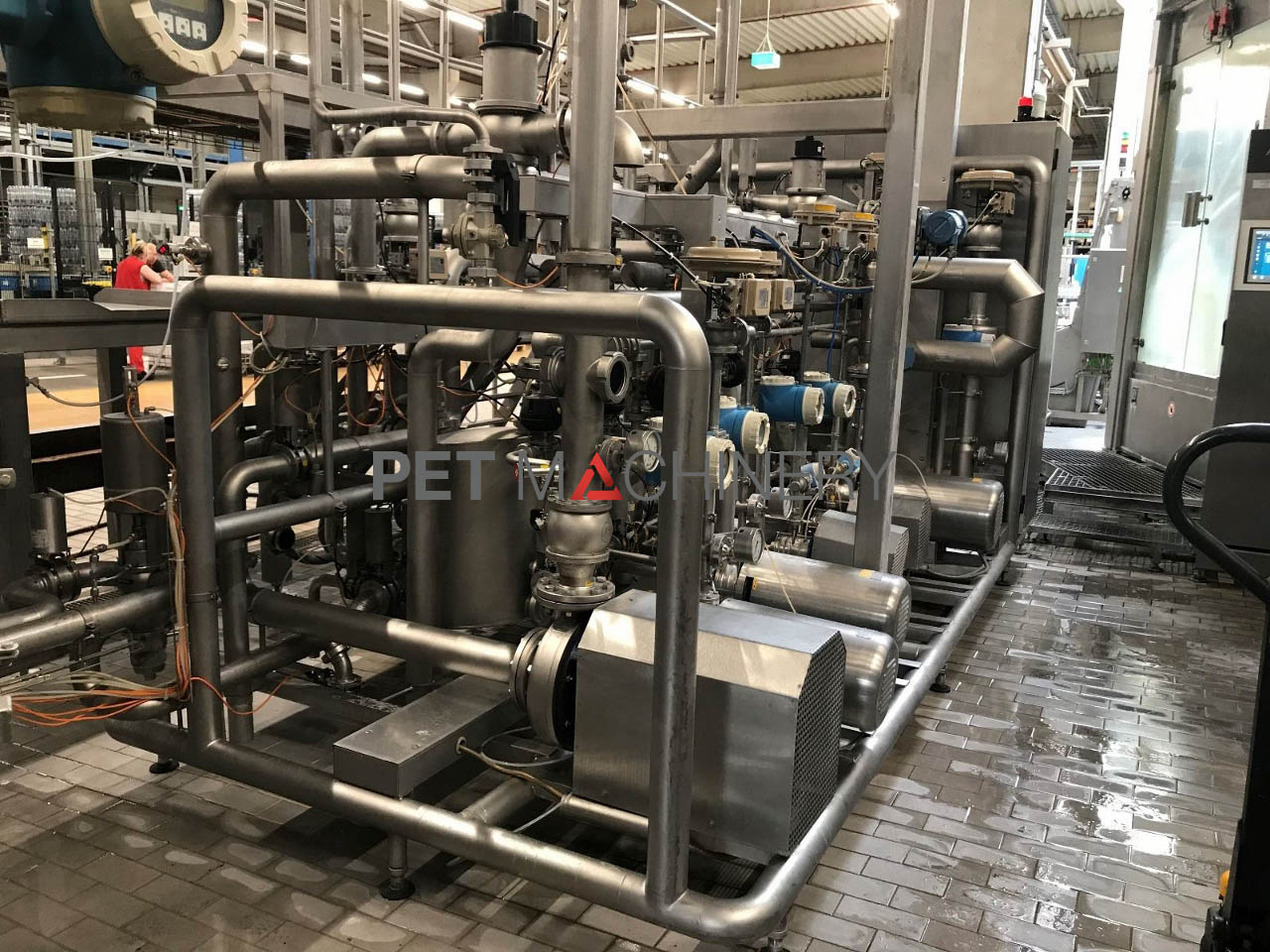

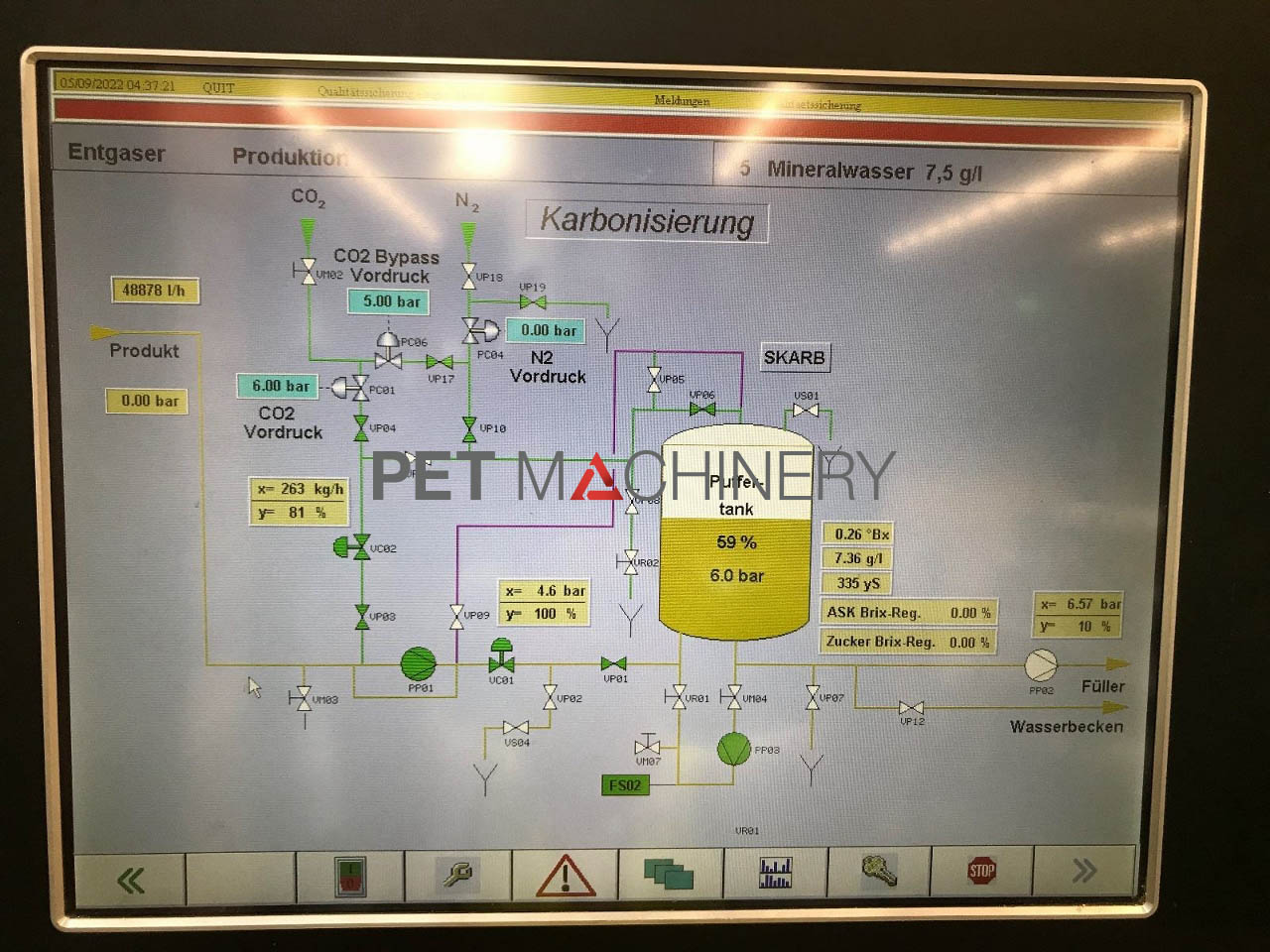

* KHS Contimix 65/6/T20 Mixer, year 2001
– Capacity: 65.000 l/h, 6 components
– Brix measurement (Anton Paar), pumps (Hilge).

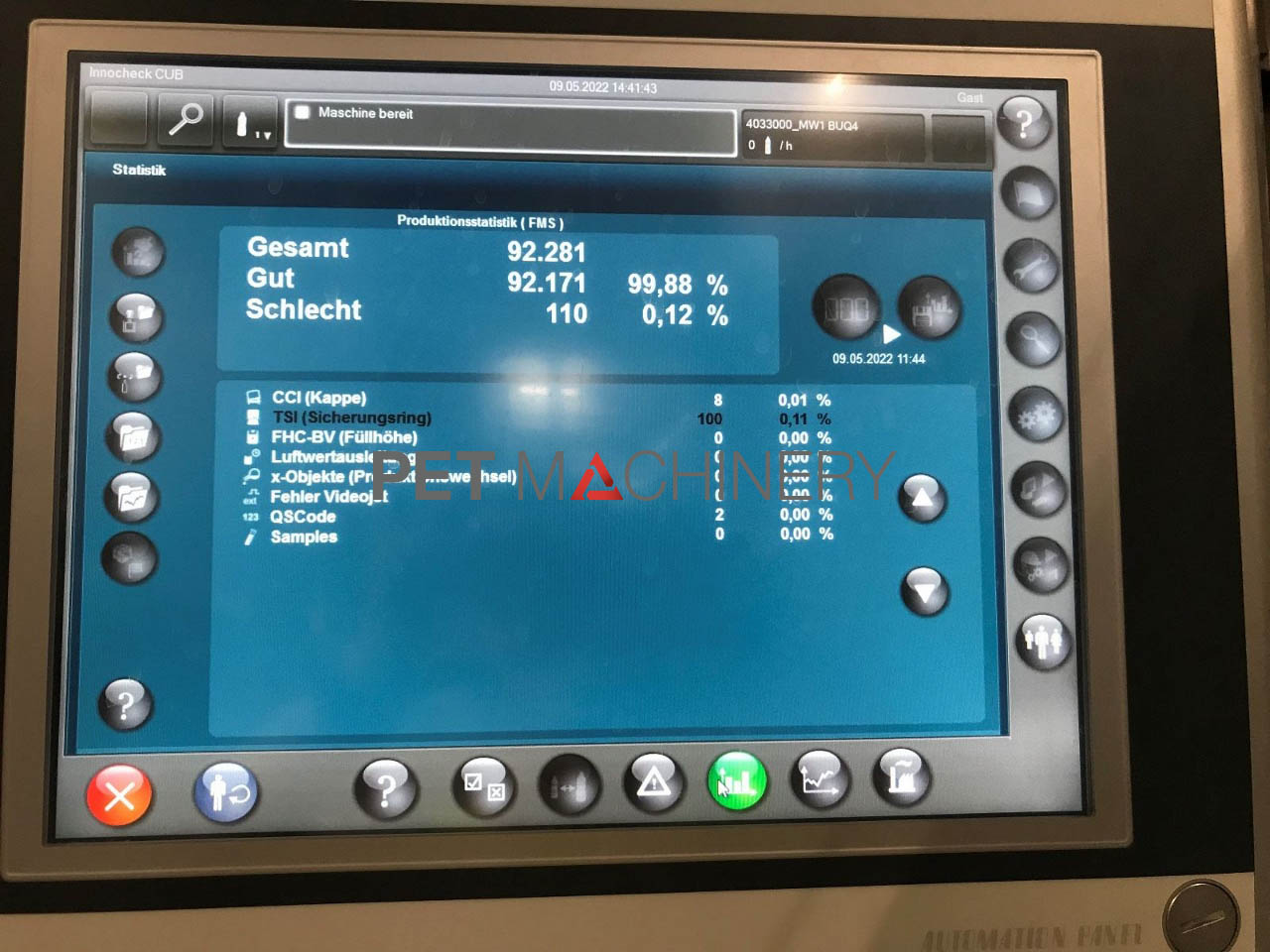

* KHS Innocheck CUB Cap and fill level control, year 2013
– All-round detection with camera system, pusher in container.

* Videojet Laser date coder, year 2013

* Sacmi Opera 300 RF 26T/R S1/E1 Labeller, year 2012
– Label position: wrap-around, 1 labelling station with label from reel
– 26 bottle plates

* KHS Innocheck CUB Label Control, year 2015
– Light barrier on the carousel of the labeling machine. Pusher in container.

* KHS Kisters Innopack SP060V Shrink packer, year 2001
– Packing: Film only, double lane 3×2
– Capacity: 60 cycles/minute

* KHS Innopack CMS 70/2 Handle applicator, year 2011
– 70 cycles/min., double-track processing
– Laminated handle self-adhesive from the roll, magazines for label strips.

* Schaefer MultiRob-HighS Palletizer, year 2011
– Infeed of packs 2-lane on 1-lane grouping station, loading head as 2-part sliding plate with centering unit.
– Layer inserter with layer stack on scissor lift table, protective fence (Troax).

* 2x Strema A5000BII Pallet wrappers, year 2011
– double head, 2 foil coils, lifting and hold-down device.

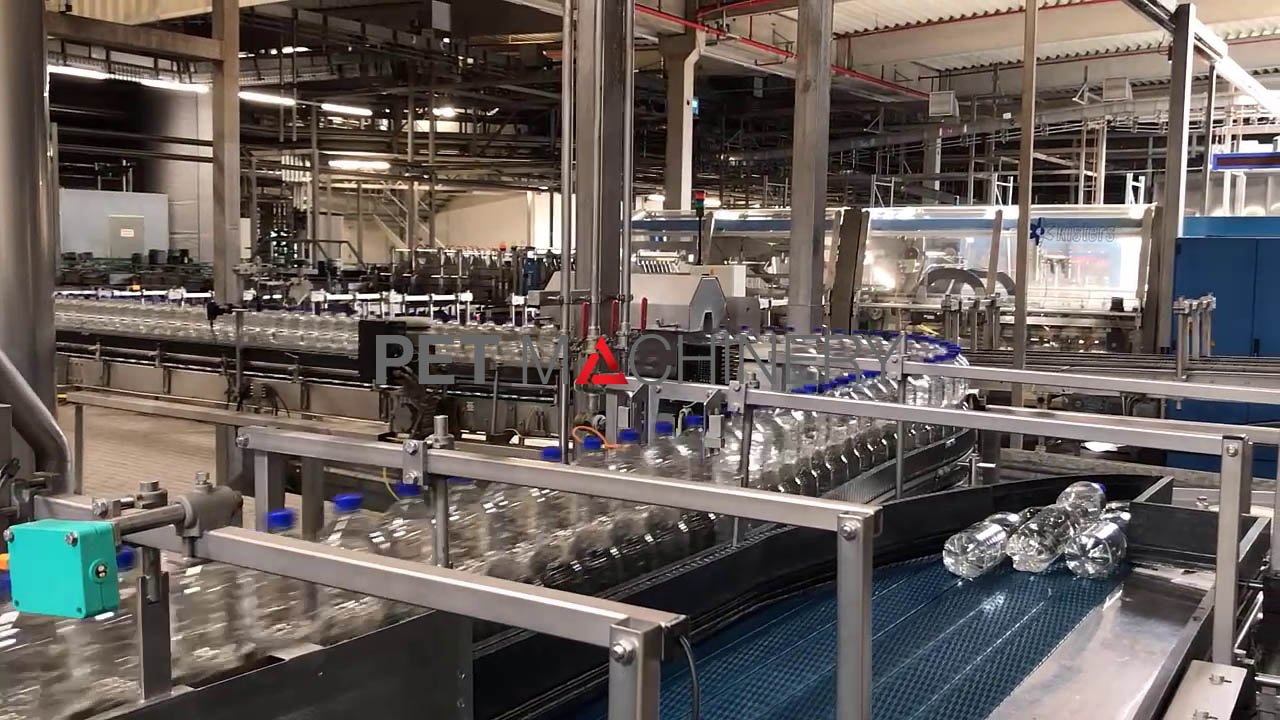

* Conveyor systems:
– Air conveyors: included
– Bottle conveyors: included (KHS, plastic chain, rigid railings, dry lubrication)
– Pack conveyors: included (Schaefer, year 2011)
– Pallet conveyors: included (Schaefer, year 2011)
