Reifenhauser Cast Film Line MIDEX 3-80/150/80-2500

Year of Manufacture 2003
Condition Very Good
Availability Immediate
Sold Status For Sale

Price Estimate

There may be an estimate available for this product.
Login or Register to find out more.

Login or Register to add this item to your Watch List.

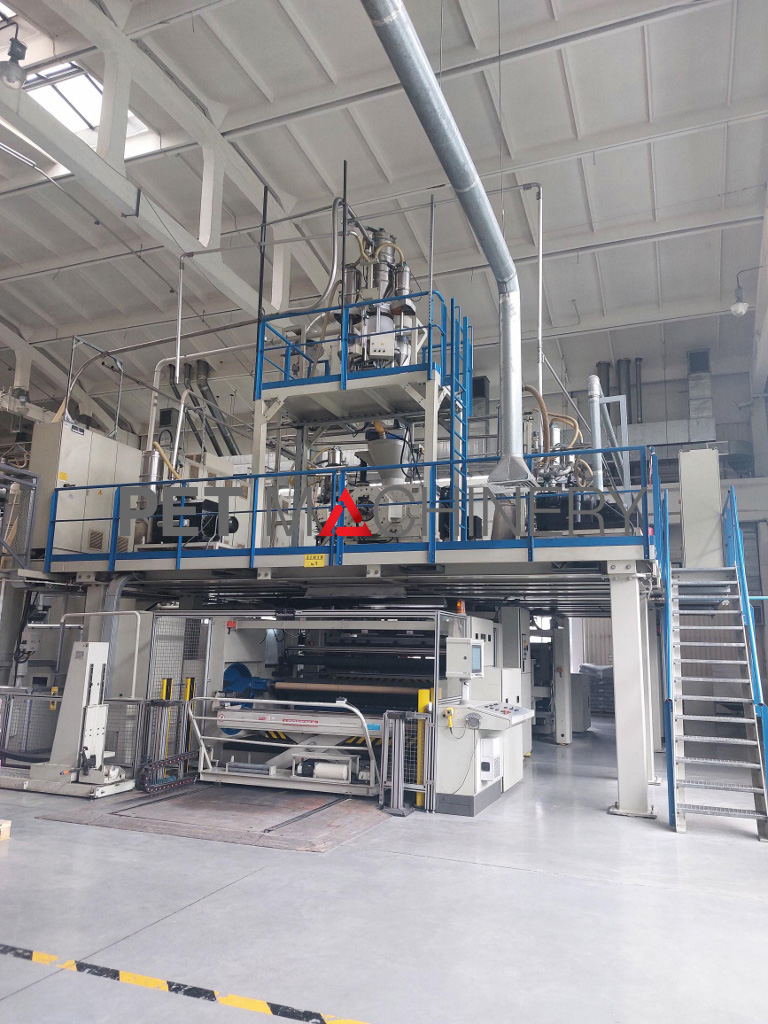

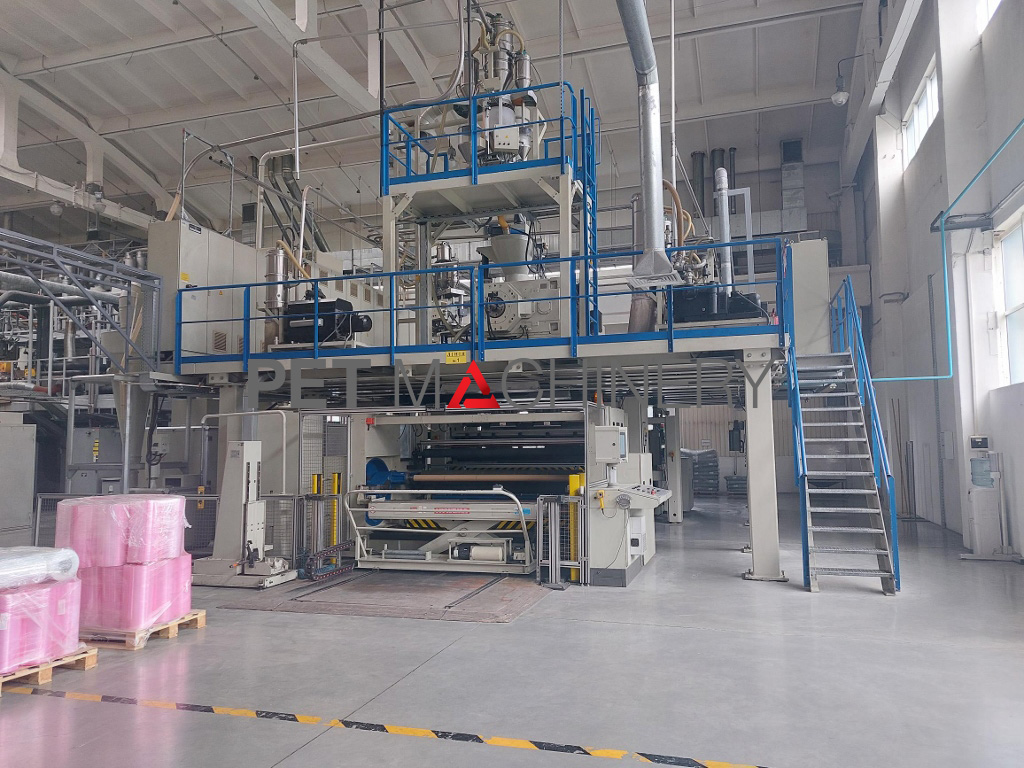

Reifenhauser Cast Film Line MIDEX 3-80/150/80-2500, year 2003

Product details:
Materials to be processed: LDPE, LLDPE, PP
Finished Products: Stretch film, PP film 12 – 60 mkm
Number of layers: 3
Film width (mm): 2500

Technical details:
Speed: 50-400 m/min
Die Lips width: 2900 mm
Output: Up to 1200 kg/hour depending on material formulation
Cast line die: Flat die type
Lip gaps adjustable: 400-800 microns
Heating: ≤600 kW
Dosing Station: 3 pieces, 1 piece above each extruder, for 3 components each
Extruder 1: layer ref: A, 180 mm, L/D=30
Extruder 2: layer ref: B, 100 mm, L/D=30
Extruder 3: layer ref: C, 100 mm, L/D=30
Head description: Automatic die

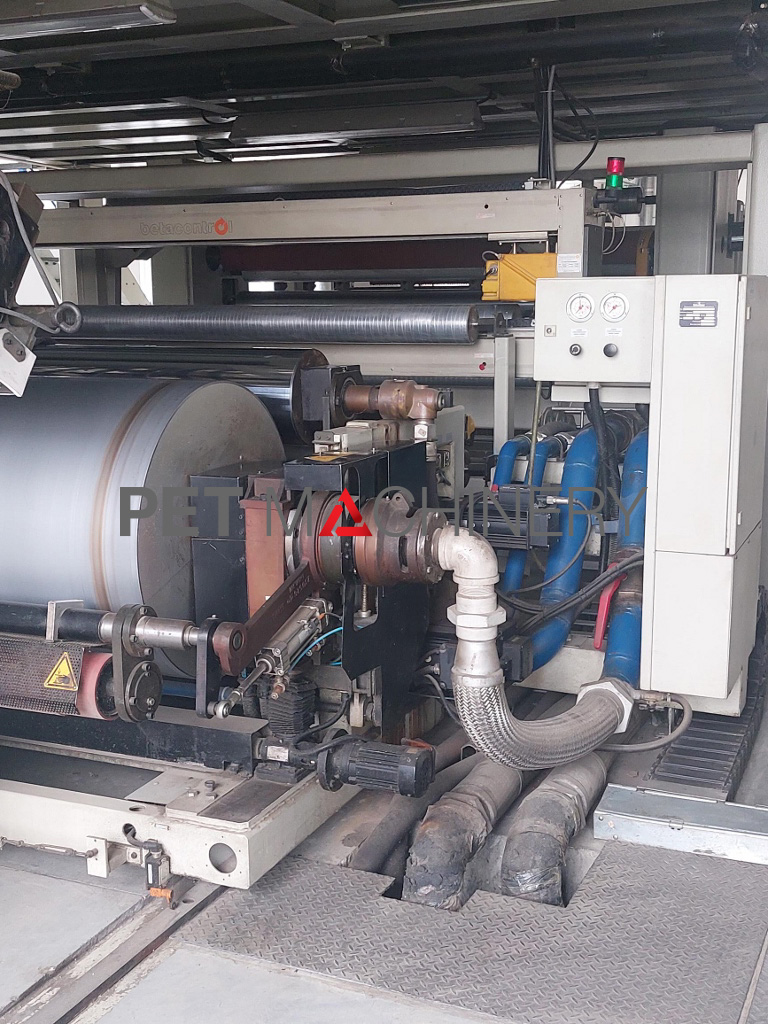

Chill roll unit: chill roll width 3000mm; first chill roll diameter 800mm; second chill roll diameter 290mm;
Thickness controll system: Automatic.

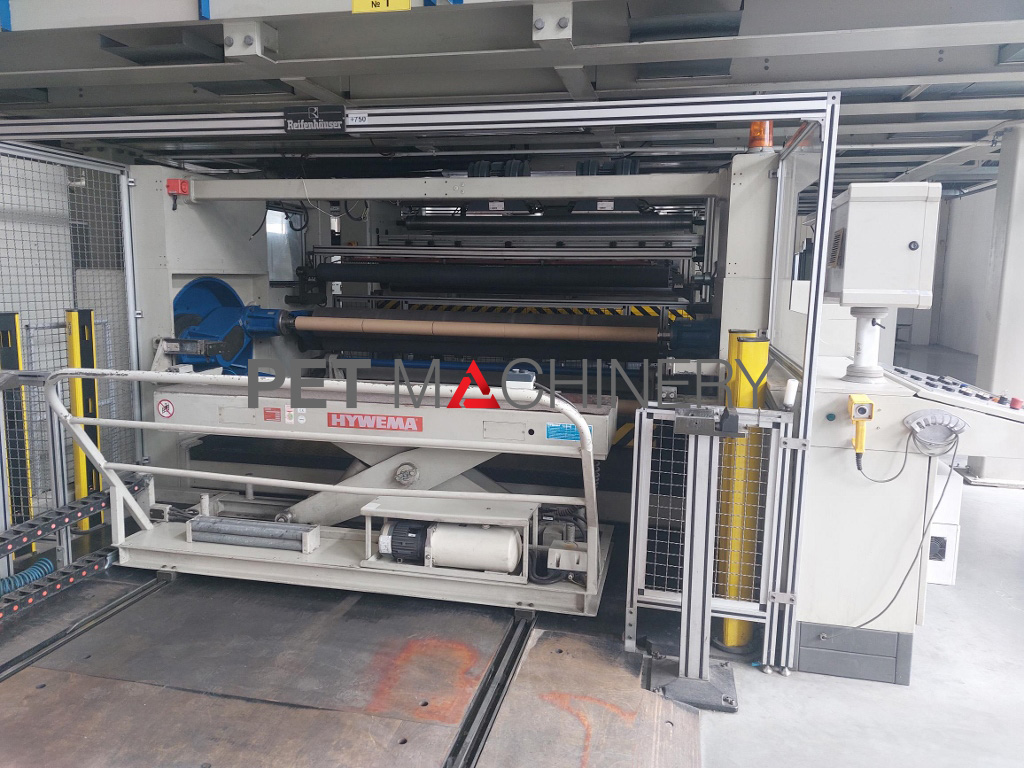

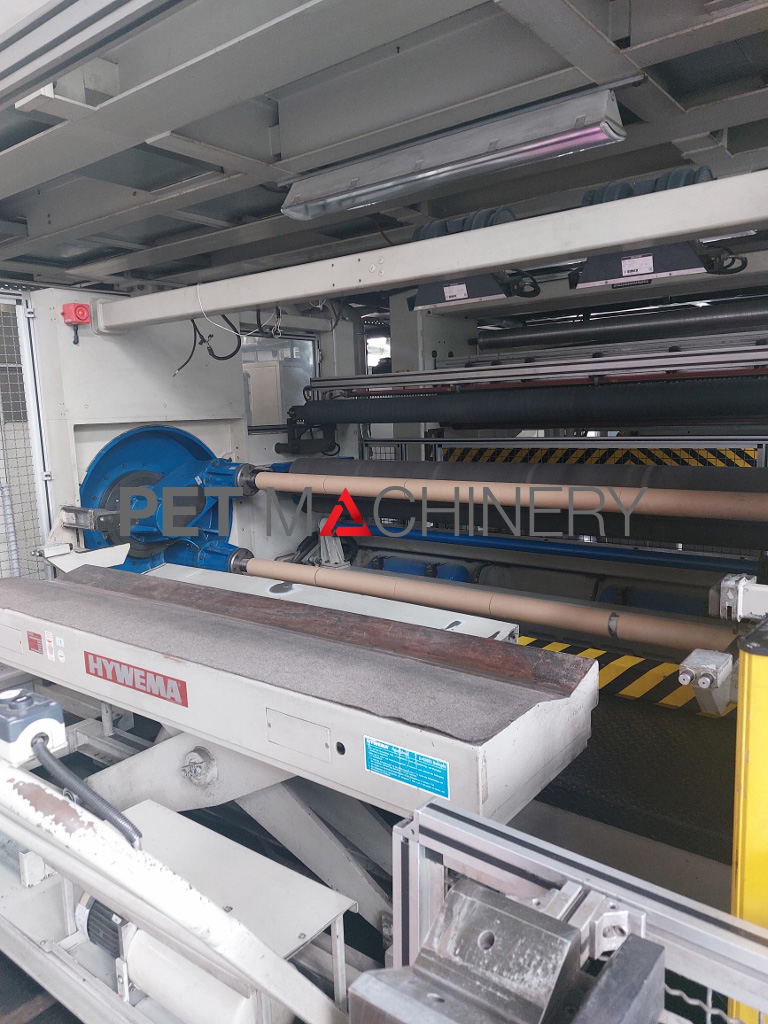

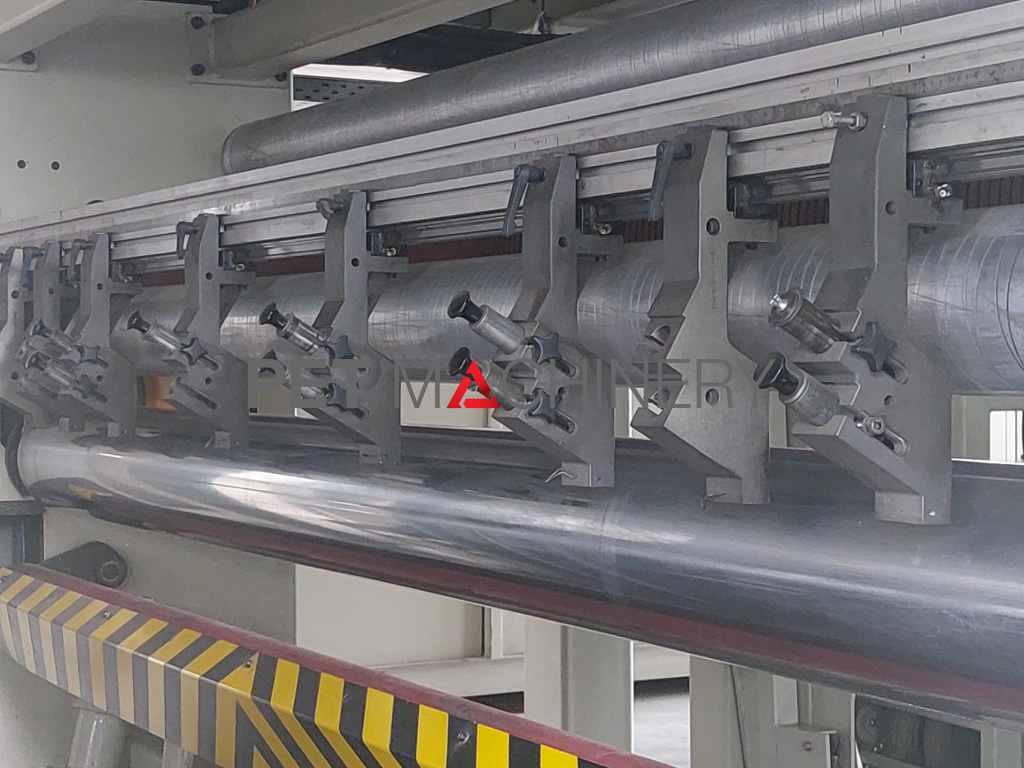

Rewinder description: Rewinder for Jumbo reels and machine reels. Automatic reel change, reels extraction and new core position system
Winder: Manual roll change

Line is still set up and connected to power. Can be inspected prior appointment.
Immediately available.
