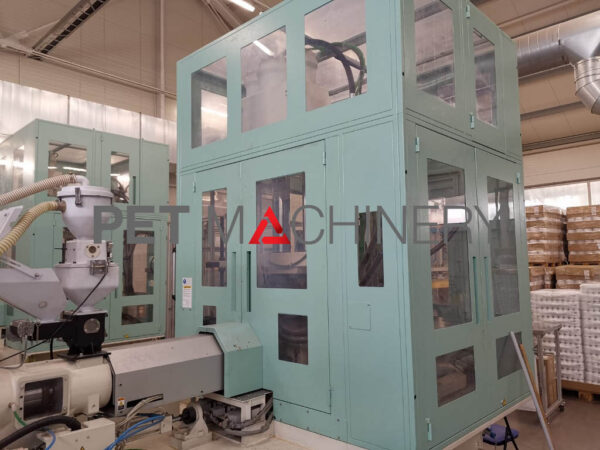

Aoki AL 250LL-50S Injection Stretch Blow Moulding machine

Year of Manufacture 2021
Condition Excellent
Availability November 2022
Sold Status For Sale

Price Estimate

There may be an estimate available for this product.
Login or Register to find out more.

Login or Register to add this item to your Watch List.

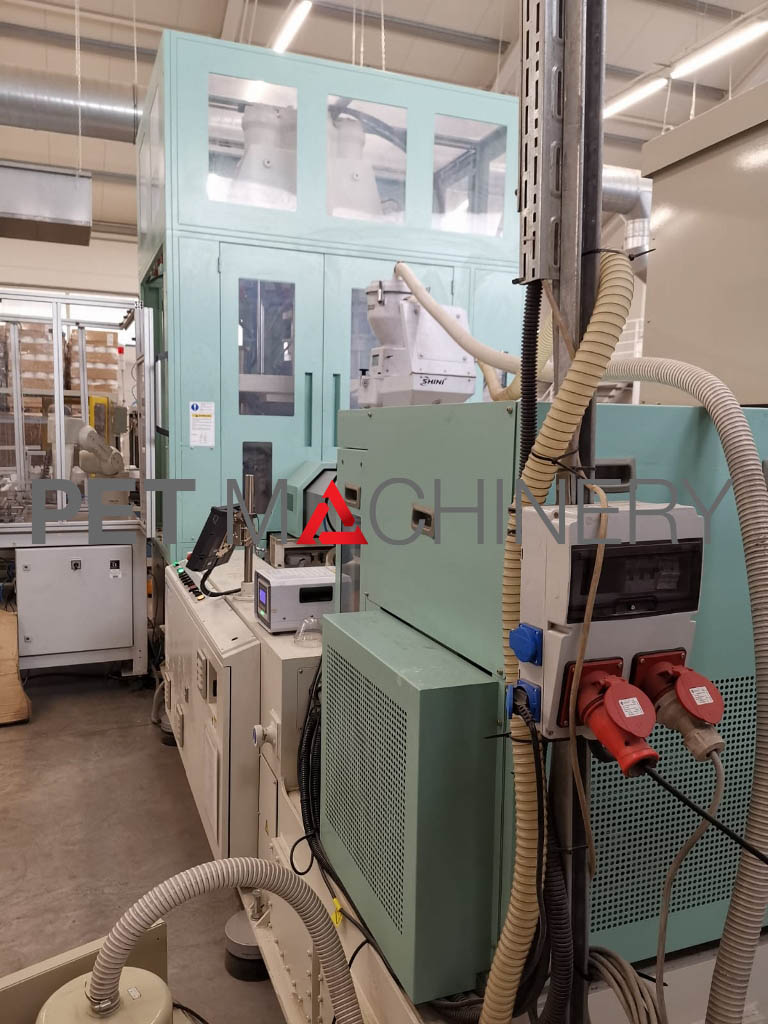

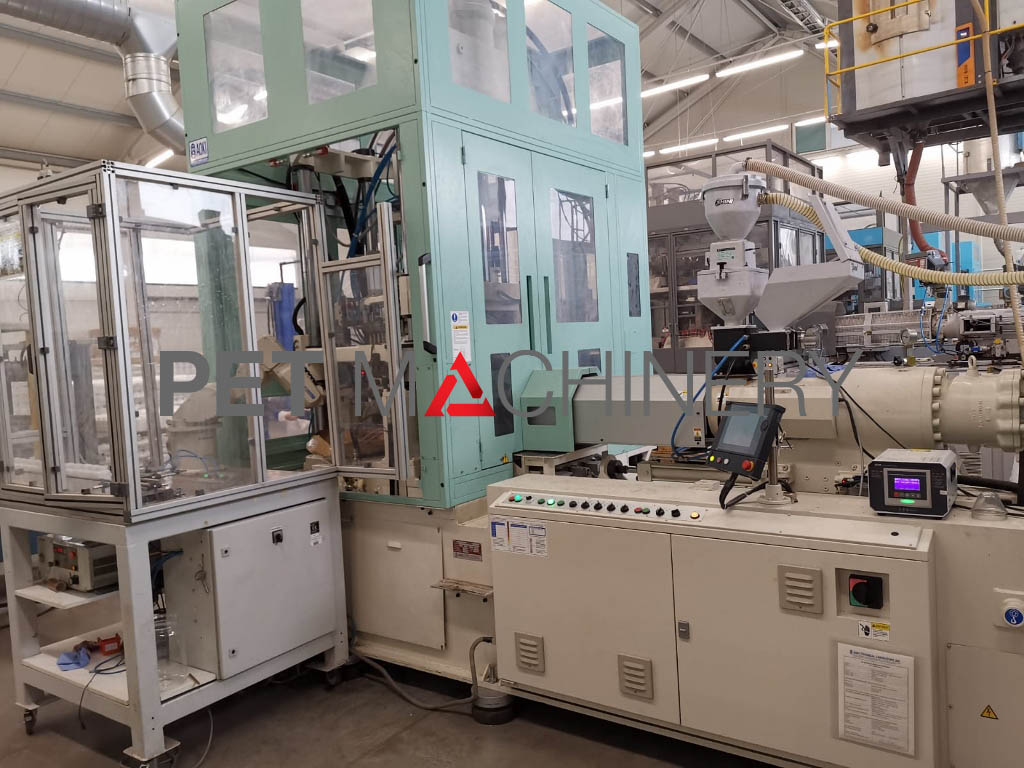

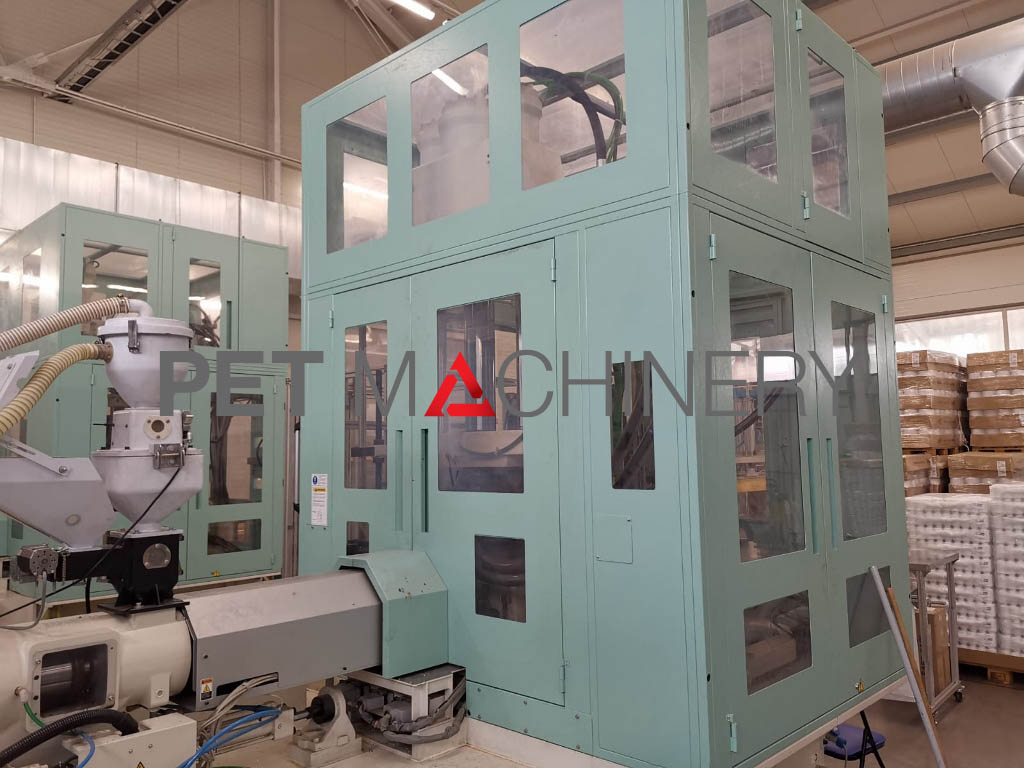

Aoki AL 250LL-50S Injection Stretch Blow Moulding machine, year 2021

Working hours: approx. 9,000 hrs (October 2022)

Options included:
* EN (European Norm compatibility) specification
* Blow clamping short stroke
* Blow core short stroke
* Lip cooling circuit
* Blow & bottom mould chiller cooling

Possibility to include:
* Wittmann Drymax E60 Dehumidifying dryer (2013)

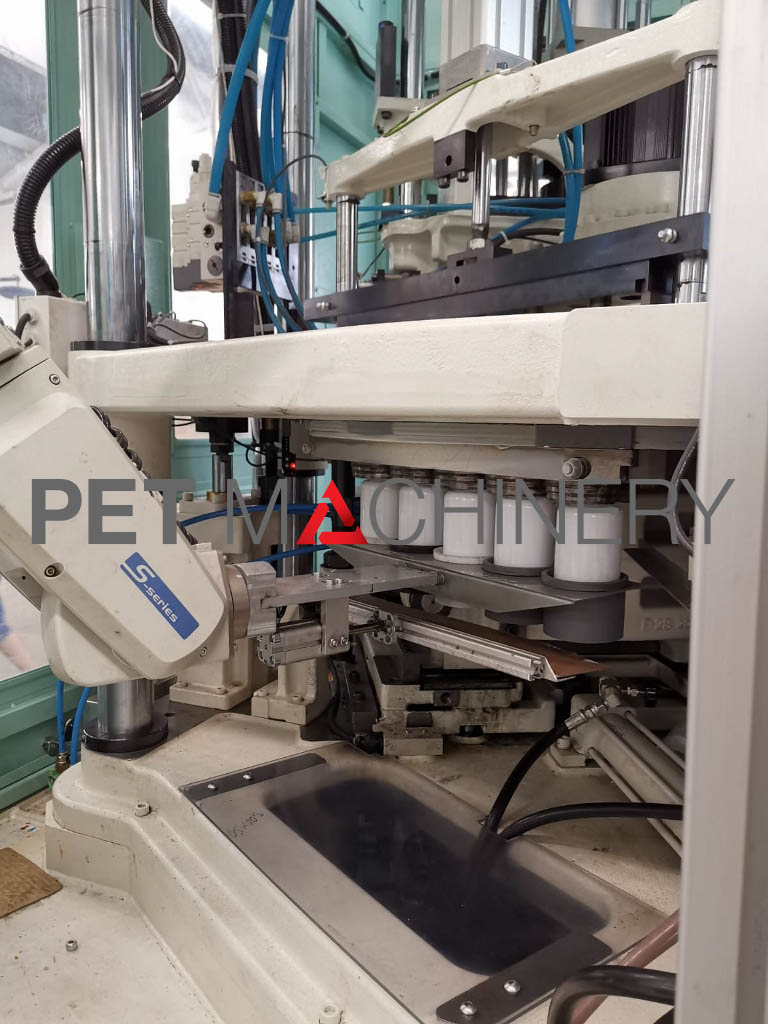

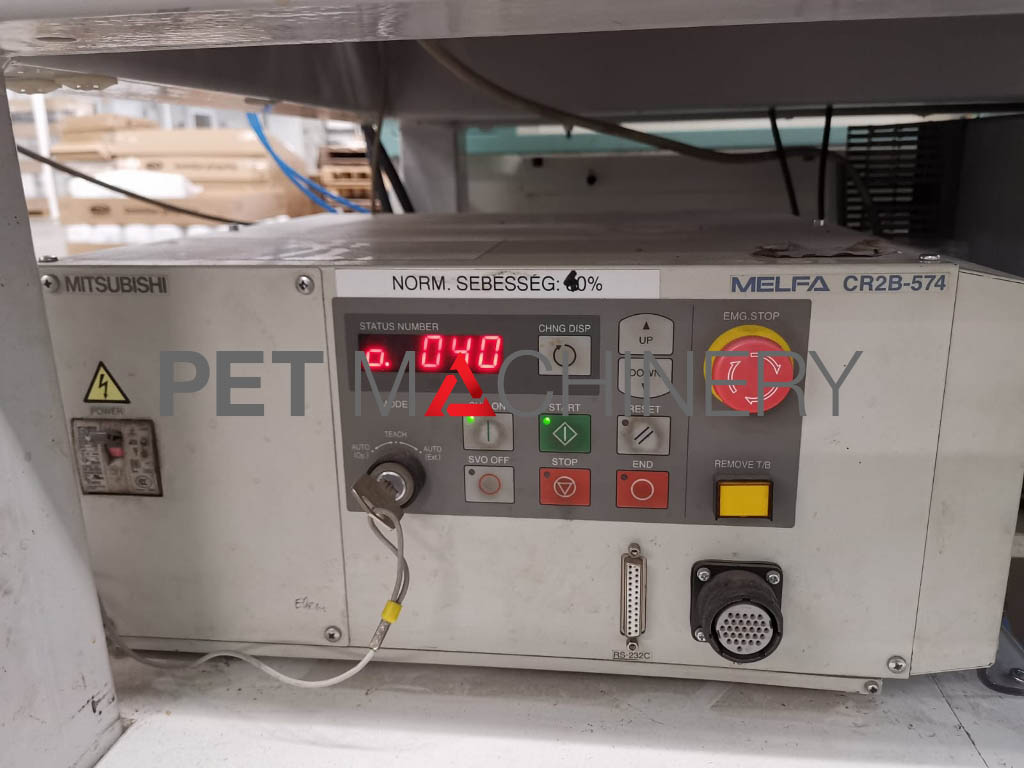

* Mitsubishi take-out robot (was developed internally)

Machine is in excellent condition and can be inspected in production until end November 2022.

Technical details:
Screw diameter: 64 mm
Injection capacity: 386 cm3/shot
Injection pressure: 123.4 MPa
Injection rate: 226.9 cm3/mp
Injection force: 396.9 kN
Screw stroke: 120mm
Screw speed (max.): 145 min-1
Nozzle touch force: 18.9 kN
Clamping force (injection form): 500.3 kN
Clamping stroke (injection form): 605 mm
Preform length under the stump: 160 mm
Blown form clamping force: 303.1 kN
Blown form clamping stroke: in all directions 65 mm
Lip shape stroke: in all directions 20 mm
Hydraulic supply power (max.): 17.5 MPa
Pneumatic supply power (max.): 3.0 MPa | 2333L/min
Pneumatic supply power (max.): 1.0 MPa | 422 L/min
Pump motor: 37 kW
