Complete Bottling Line (6.0L PET bottles) for Still Mineral Water

Year of Manufacture 2015
Condition Very Good
Availability Immediate
Sold Status For Sale

Price Estimate

There may be an estimate available for this product.
Login or Register to find out more.

Login or Register to add this item to your Watch List.

Complete Bottling Line (6.0L PET bottles) for Still Mineral Water

Beverages filled: still mineral water
Line capacity: 3,000 bph
Bottle size processed: 6.0L (5.0 to 7.0L possible as option)
Cap type: for 48 mm Bericap neck finish
Labelling: self-adhesive labels
Status of the line: dismantled and packed
Production stopped: early 2023
Average condition: machines regularly maintained & in good condition
Special conditions: full set of new OEM spare parts for maintenance supplied with the line

Line is composed of:

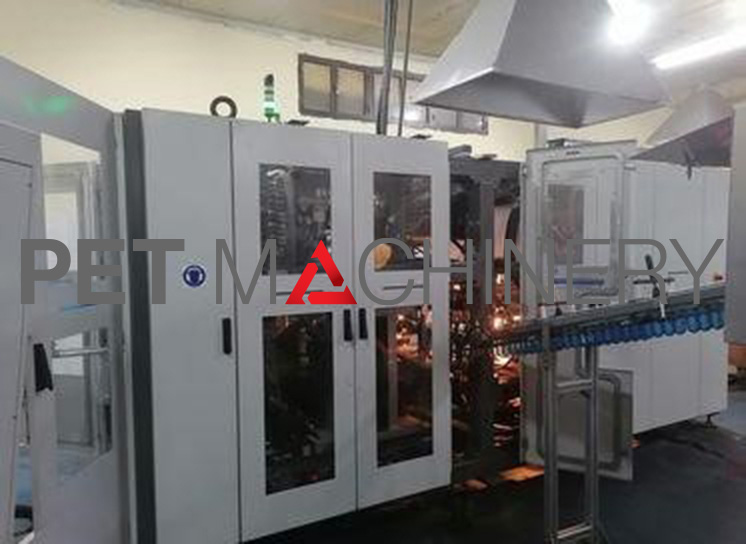

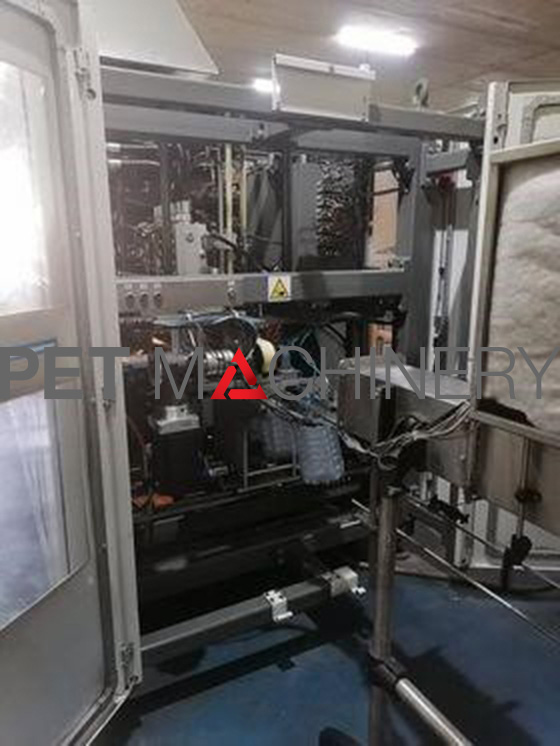

* STM (Poland) Blue line 3 PET stretch blow moulding machine (2015)
– capacity: 3,000 bph
– Number of cavities: 3 cavities
– includes preform hopper and infeed system
– include 6.0L blow mould
– with B&R control panel, EPI Eco power energy saving system, air recovery system

* Shinni mould water chiller (29 kw) (2015)

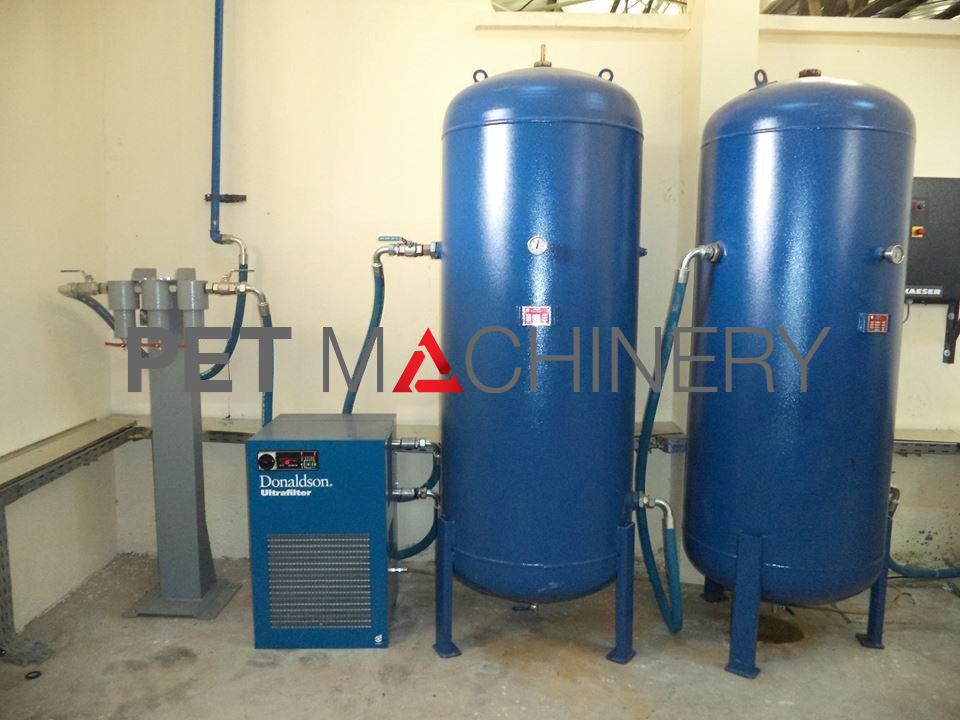

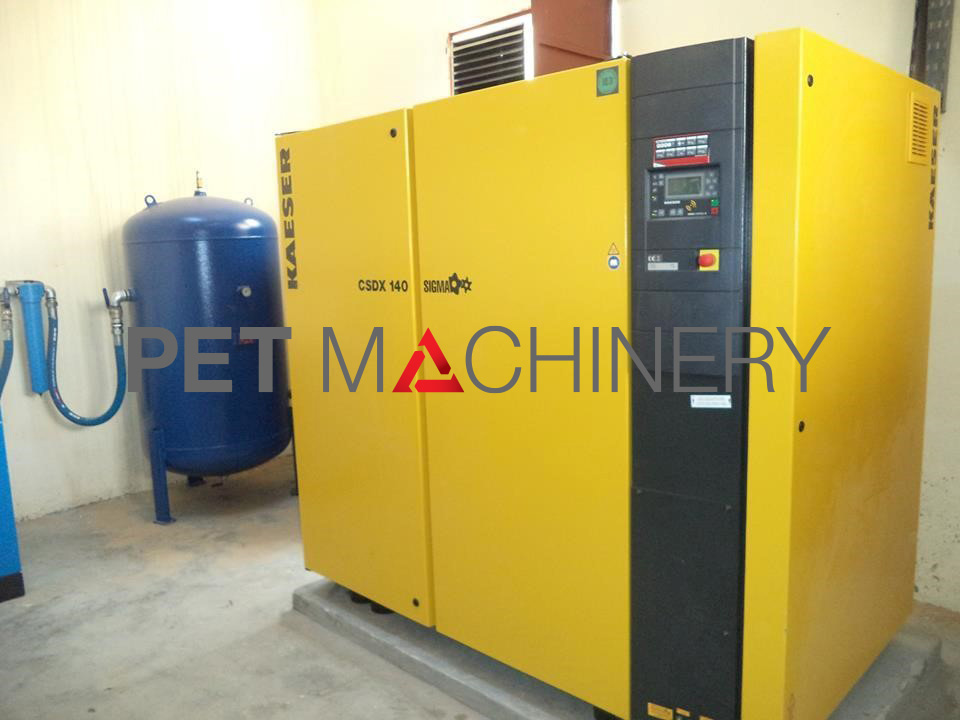

* KAESER complete compressed air unit (2015) composed of:
– low-pressure compressor up to 10 bar – CSD125
– high-pressure compressor 10 to 30 bar – N753- GC
– low-pressure air tank 5000 litres
– high pressure air receiver 2000 litres
– air dryer up to 10 bar
– air dryer up to 30 bar
– air filters
– fittings

* Air conveyor system (exit PET blower conveying the PET bottles to the filling tribloc)

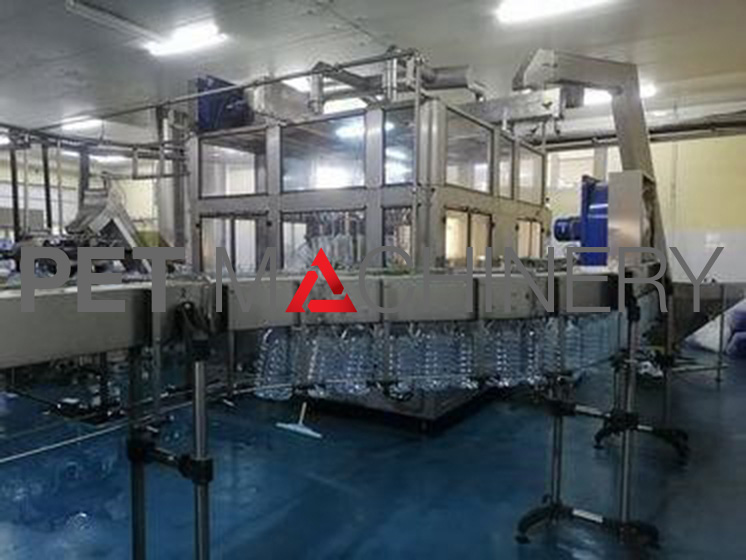

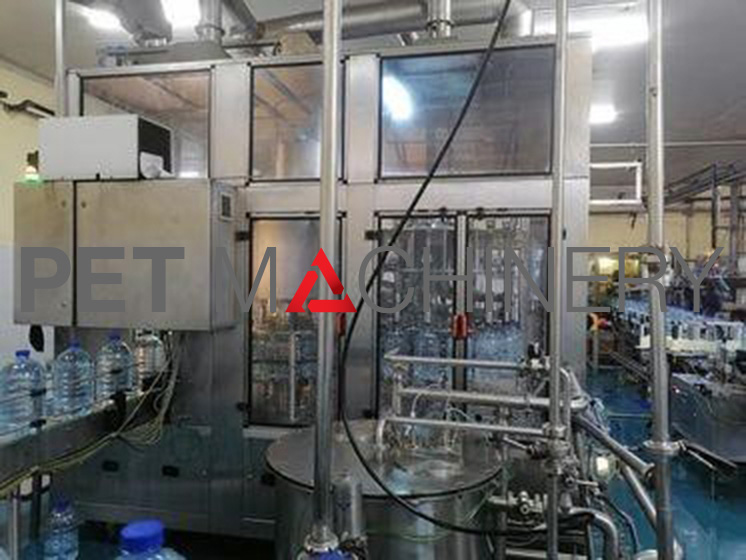

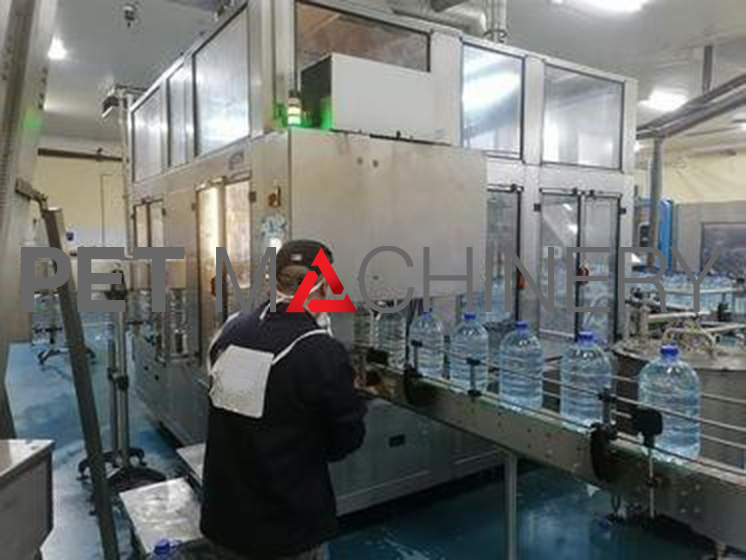

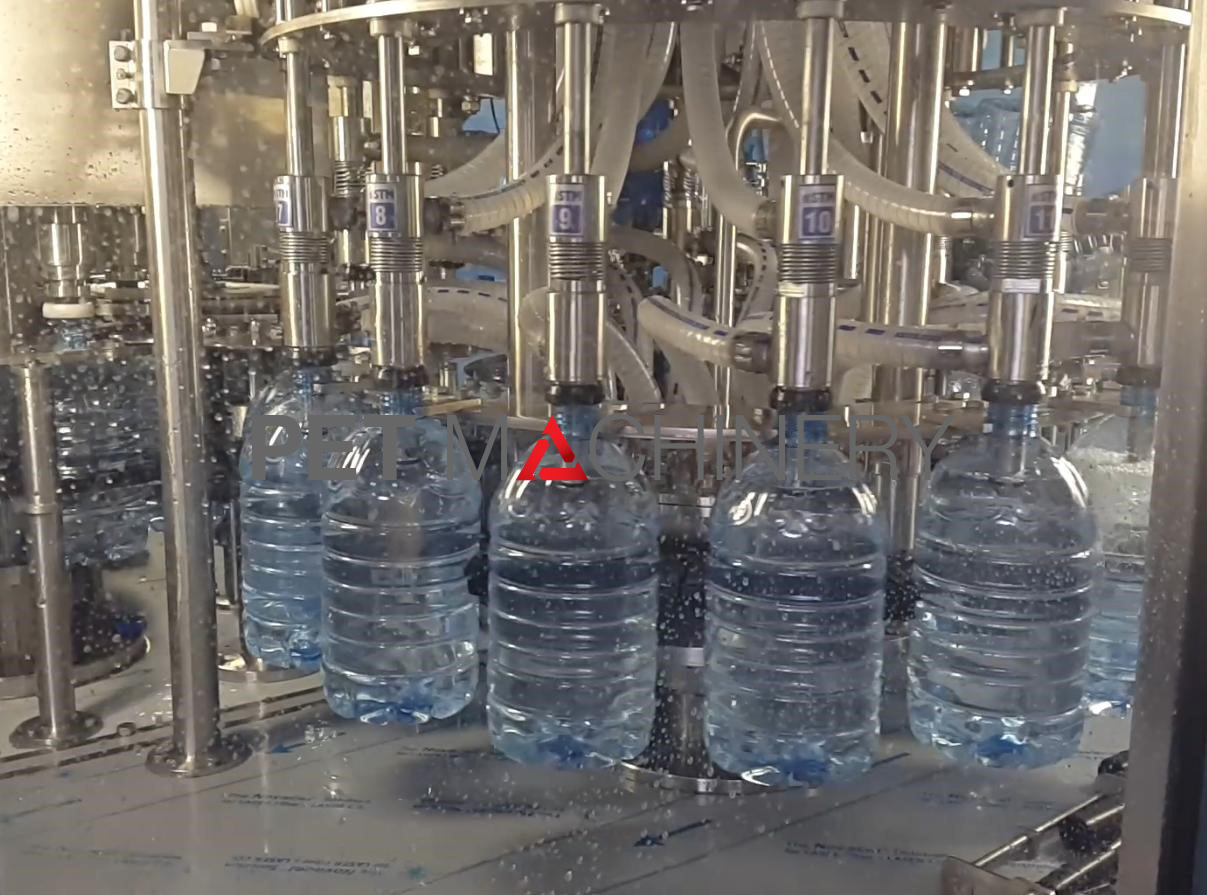

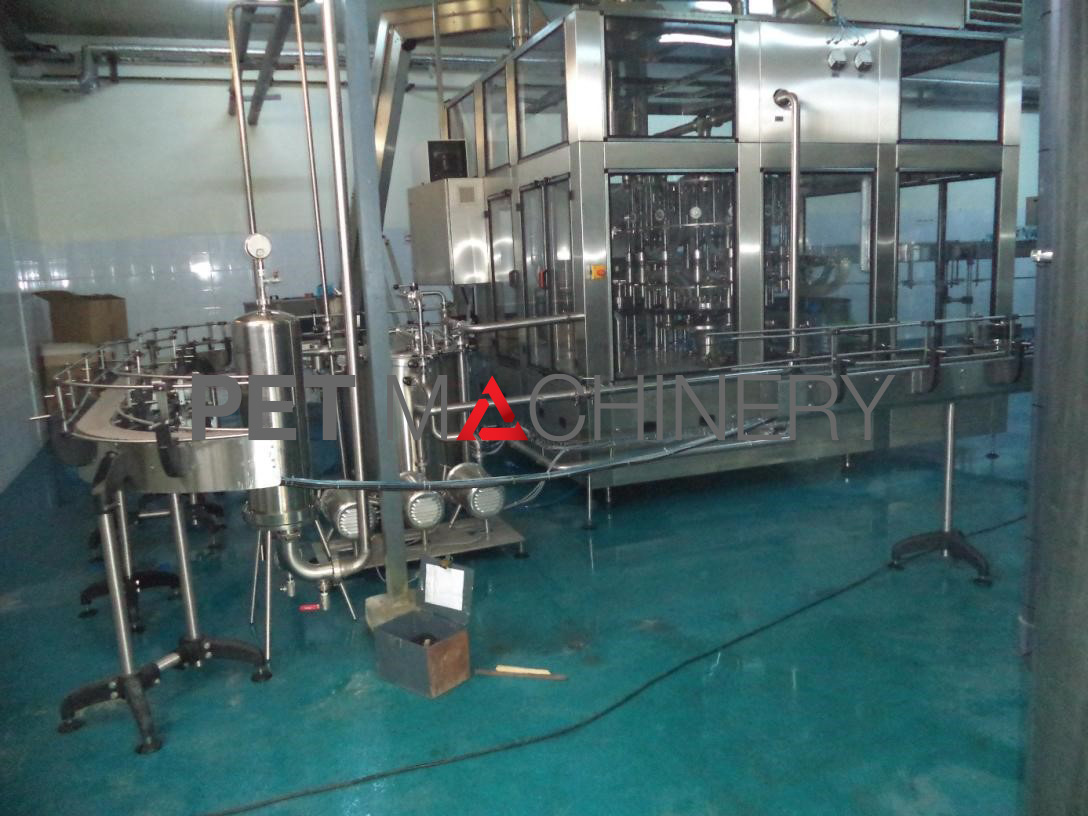

* Rinser / filler / capper Tribloc STM ARROW PET 16/16/6 NC/BIG
– rinser with 16 rinsing nozzles
– filler with 16 filling valves
– capper with 6 heads for 48 Bericap
– automatic caps feeder with buffer
– filling type – over-flow

includes the following equipment:
– buffer tank with pump
– B&R control panel
– caps feeder
– CE-compliant protections
– 6.0L bottle tooling
– 48 mm plastic cap tooling with helical thread
– control cabinet with air-conditioning
– guards with HEPA filters, air cleanliness level H13 (EU standards)

* CIP clean in place (2015)

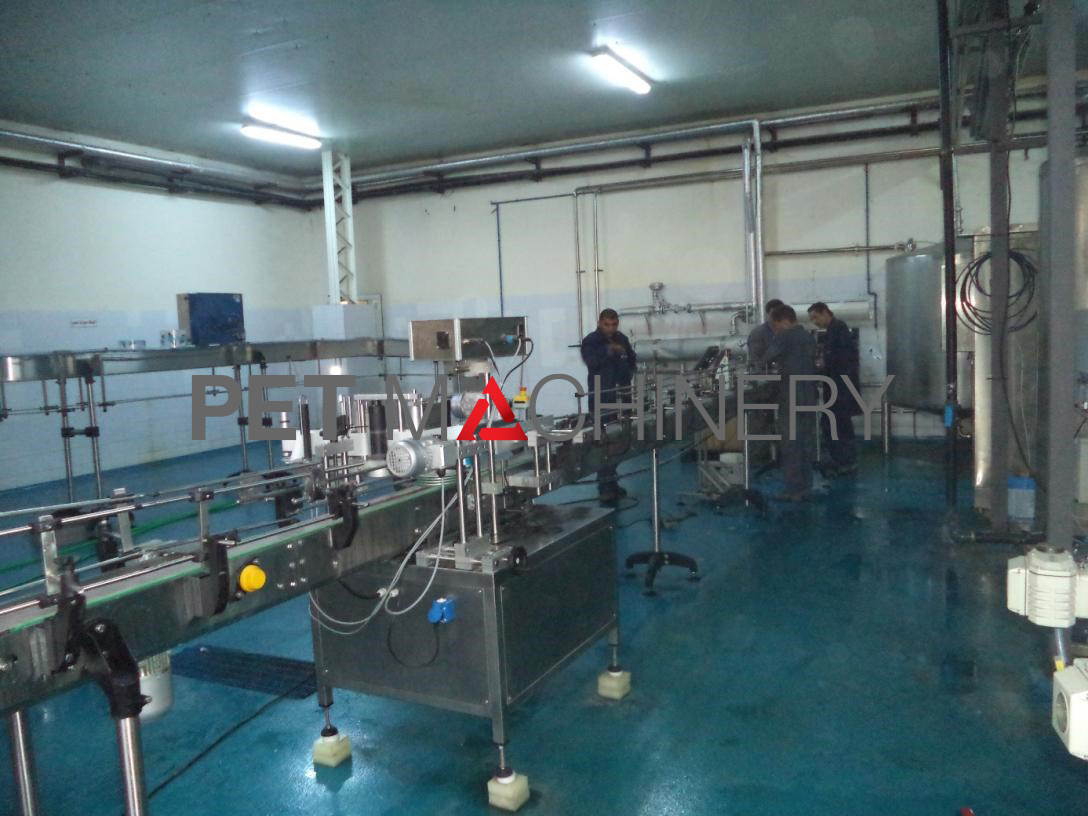

* Bottle conveying system from triblock to labeller
– Type of ribbon – plastic
– Maximum cylinder diameter – Ø175 mm
– Fluid regulation – variator
– control from tribloc box
– Configuration according to the layout

* UNO ADE roll-fed adhesive labeller (2016)
– max bottle diameter – 6.0L – Ø175 mm
– max bottle label dimensions 6.0 L- 50% contour height 130 mm

* Ersey Makina handle applicator (2015)
– with automatic handle feeding system and buffer

* Gravity roller conveyor system (2015)
– designed to direct bottles from the filling labelling handle setting area to the end of line.

* Ersey Makina full automatic palletiser (2015)
– single lane infeed,
– automatic layer-pad deposit system
– empty pallets storage unit
– pallets handling on belt conveyors

* Ersey Makina pallet wrapper (2015)
– stretch film pre-stretching
– incursion

Line is immediately available. Price includes the professional dismantling of the line.
Sea-worthy packing or loading costs not yet included, can be provided.
