Carbonated Mineral Water PET Bottling line

Year of Manufacture 1997 - 2005
Condition Very Good
Availability June 2020
Sold Status For Sale

Price Estimate

There may be an estimate available for this product.
Login or Register to find out more.

Login or Register to add this item to your Watch List.

Carbonated Mineral Water PET Bottling line

Output capacity:
12,500 bph @ 330 ml and 500 ml
10,400 bph @ 1.0L and 1.5L

Closure: PCO 28mm 1881 shorty cap and Sport cap based on PCO 28 mm 1881
Products: with and without Co², only water
CSD is also possible if we exclude the carbonator and include a mixer

Labelling: pre-cutted plastic labels by hot glue around the bottle
Packaging: 3 x 4 or 2 x 3 bottles shrinked into foil
Palletizing: manually

consisting of:

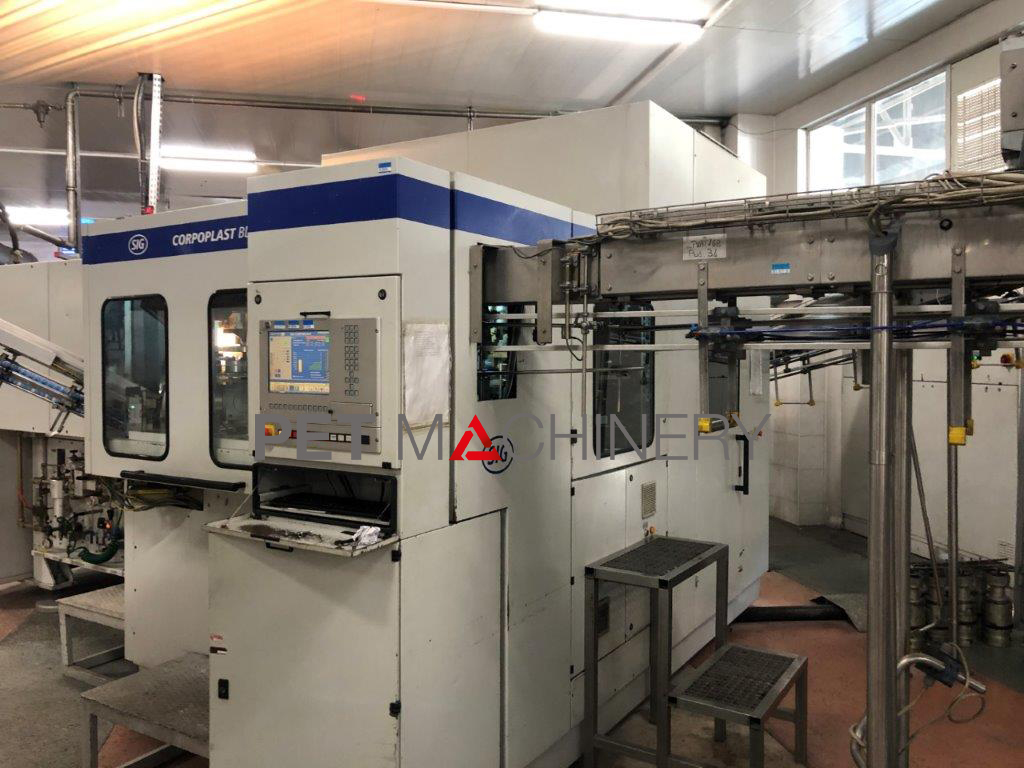

* KHS / SIG Blomax 8 III stretch blow moulding machine, year 2004
– output capacity: max. 13,000 bph
– includes preform infeed system

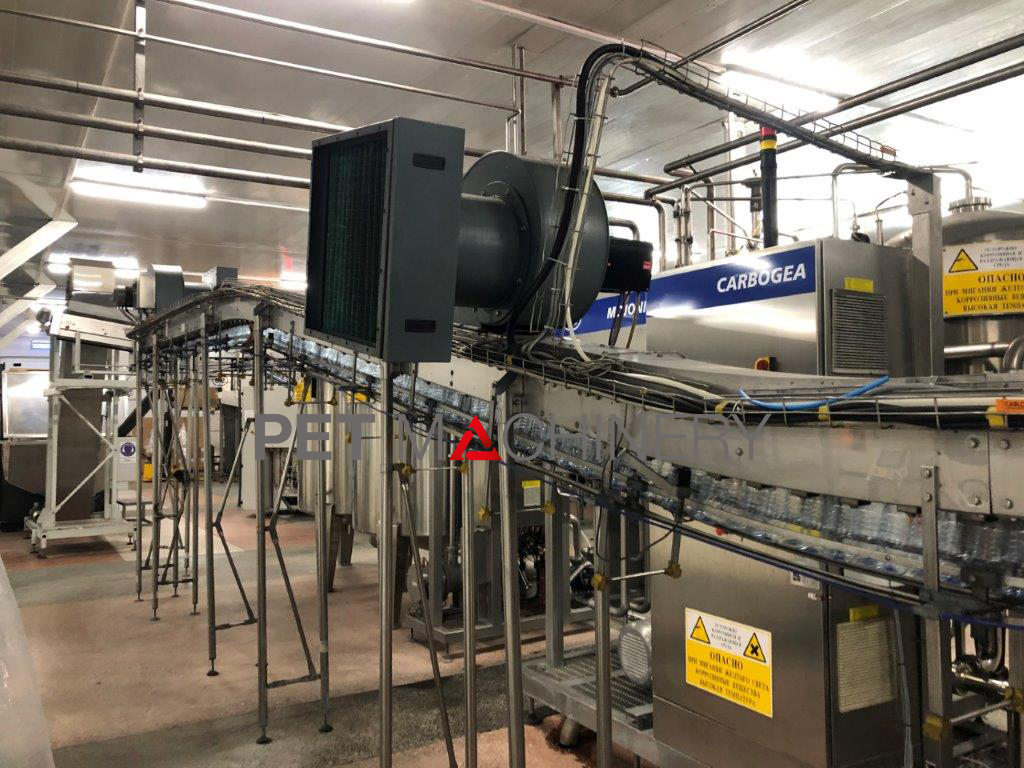

* Simonazzi TWN222 air conveyor, with control panel, year 2004
– pneumatically adjustable
– length approx. 80 mtr.
– including 10 blowers

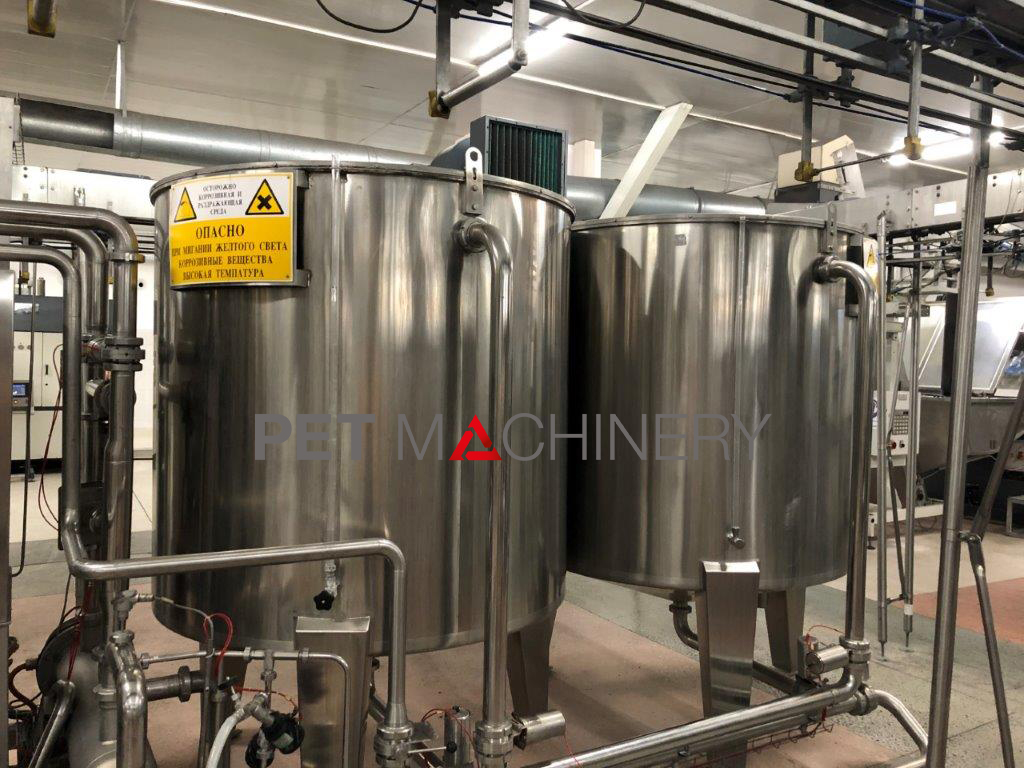

* Semi-Automatic CIP station, year 2005
* Simonazzi CARBOGEA 250 carbonator, year 2004
– capacity: max. 25.000 ltr./h

* Simonazzi EUROTRONICA FM 50/60/15 tribloc, year 2005
– rinser: 50 rinsing stations
– filler: 60 filling valves, volumetric
– capper: 15 capping heads and two sorting units
– bottle formats: 0,33 / 0,5 / 1,0 / 1,5 ltr.
– pitch: 115 mm
– safety (clean room) housing around the machine

* CBI 1502 Plastic chain bottle conveyors, with control panel, year 1997
* Krones Canmatic 600 – 110 labeller, year 1998
– output capacity: 18,000 bph
– bottle plates: 10
– glue type: hot glue
– label type: pre-cut BOPP

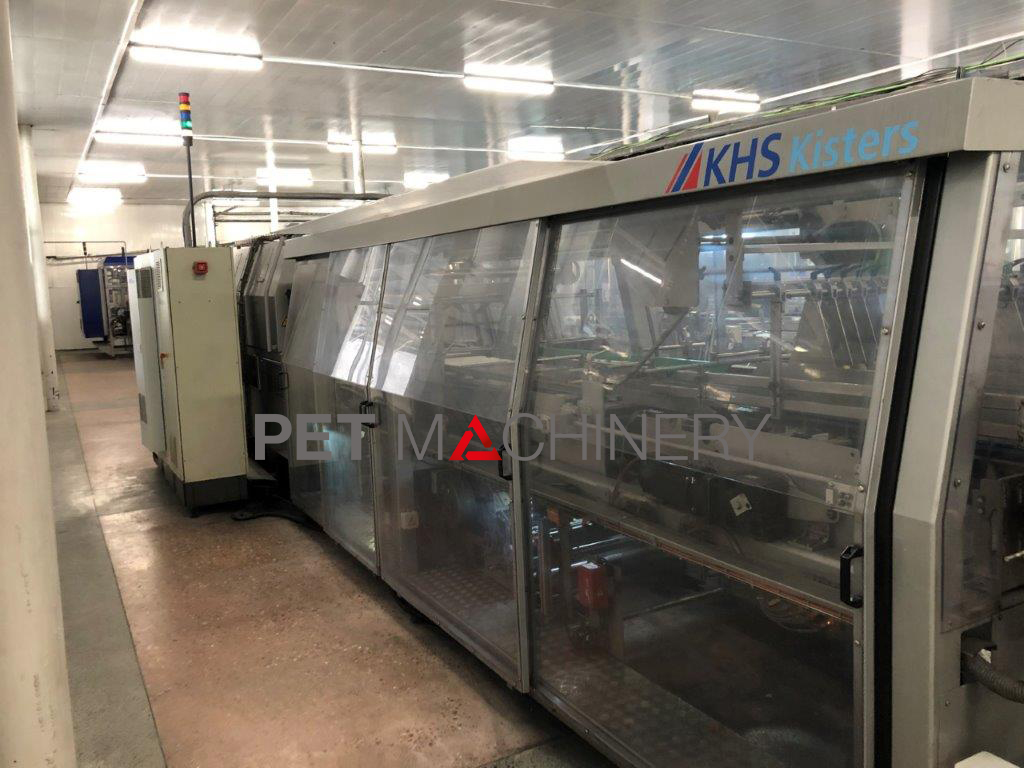

* KHS/Kisters SP-050 B shrink packer, year 2004
– Siemens S7 plc
– pack formats: 3 x 4 and 2 x 3 shrinked into foil

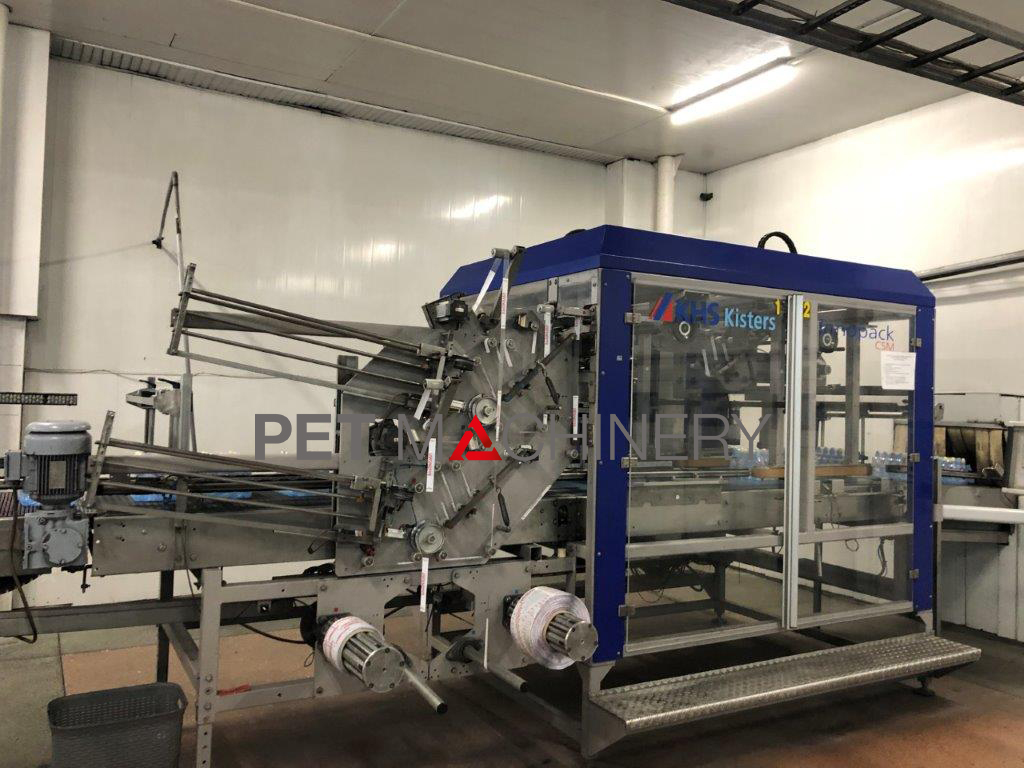

* KHS CSM-50-2-LM handle applicator, year 2004
– Siemens S7 plc

The line will be in production until approx. May/June 2020 and can be inspected.
