In conjunction with Hilco Global we are inviting offers for the following EKTAM HDPE Bottle Milk Bottling lines, year 2017
AVAILABLE IMMEDIATELY | EQUIPMENT IN WREXHAM, UK
all offers subject to 15% Buyer’s Premium.
Preview Information: Strictly by prior appointment only
Sale Contacts:
Anthony Thompson (anthony@petmachinery.com) – Tel. +44 (0)78175 32087
Erik van Bommel (erik@petmachinery.com) – Tel. +34 676 986 962
Ian Bacon (ibacon@hilcoglobal.eu) – Tel. +44 (0)121 285 8230
Year of manufacture: 2017
Condition: Excellent, never used
Availability: Immediate
Product: Milk
Filling temperature: 2 – 4°C
Rinser/Filler/Capper Nominal speed:
– 15,000 bph @ 2.272L (4 pint) HDPE bottle
– 15,000 bph @ 1.0L HDPE bottle
Bottle formats: 2.272L (4 pint), 2.0L, 1.136L (2 pint), 1.0L, 0.568L (1 pint), 0.189L and 3.408L (6 pint) HDPE bottles
Type of closure: Ø38 mm plastic screw cap (with aluminum foil inside)
Type of label: Wraparound OPP plastic label
Line consists of:

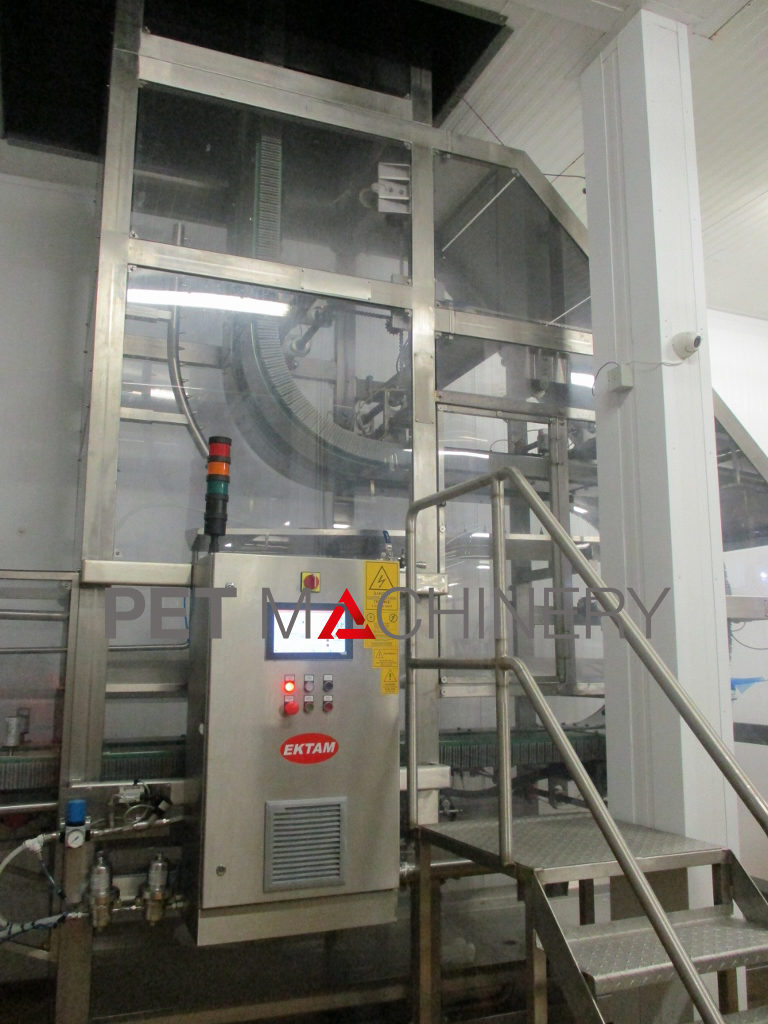

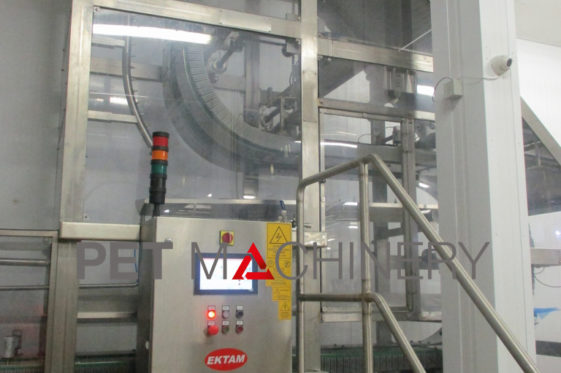

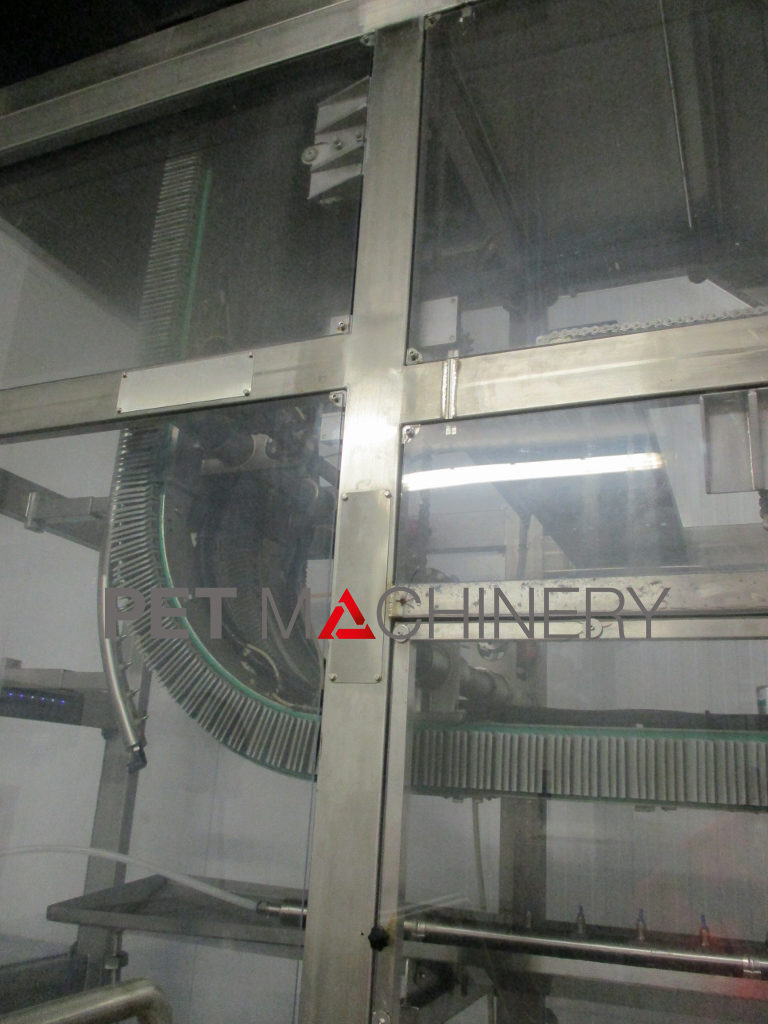

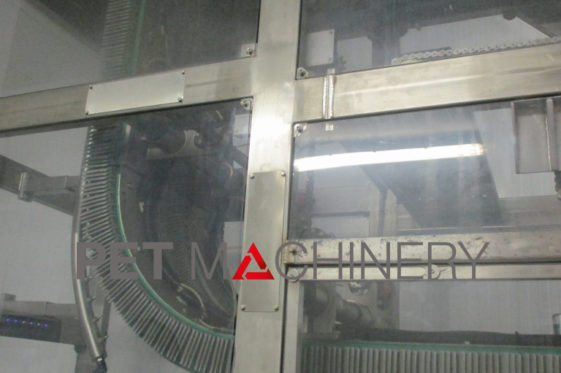

* (1) Ektam DIDIM Bottle Lowerator & Twister
– complete frame made of stainless steel
– automatic format changeover system
– air blowing nozzled to clean inside of bottles

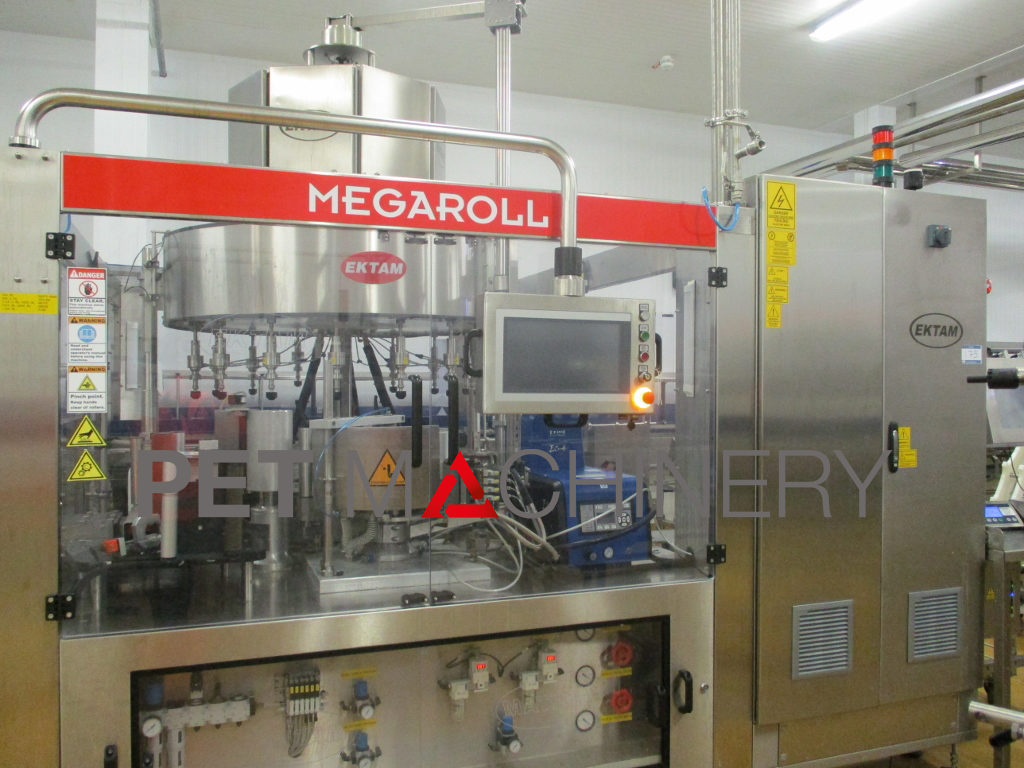

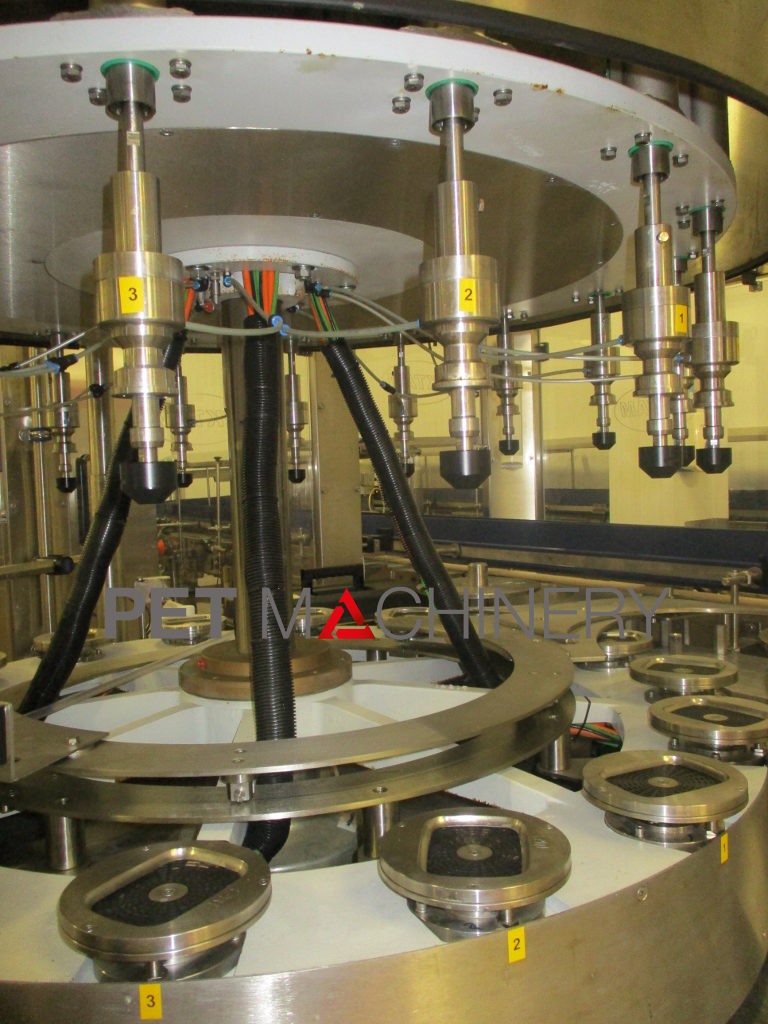

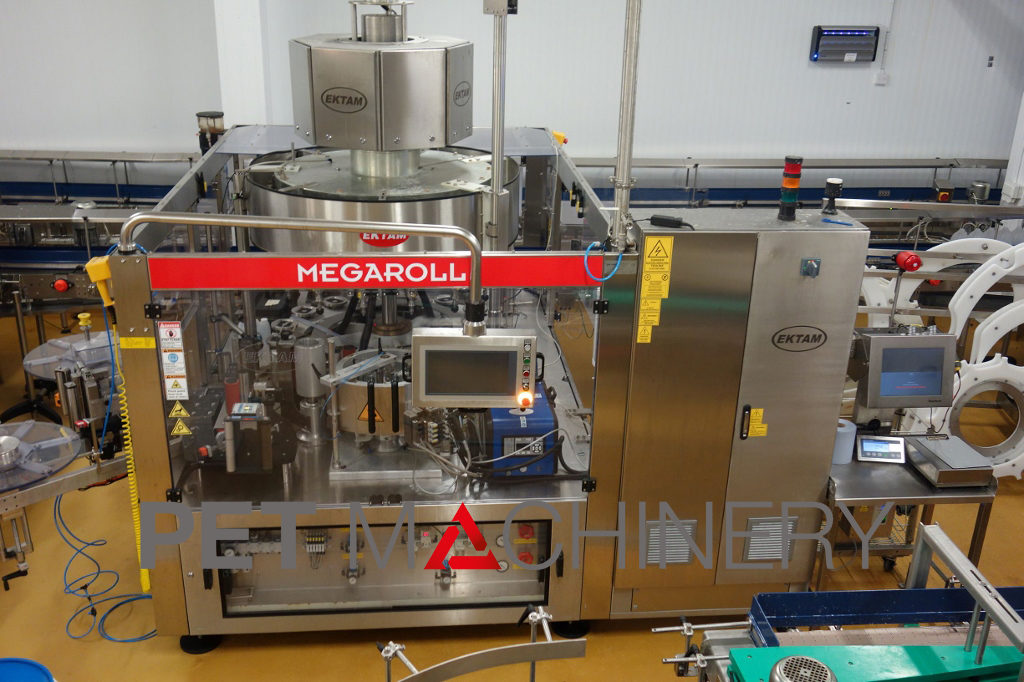

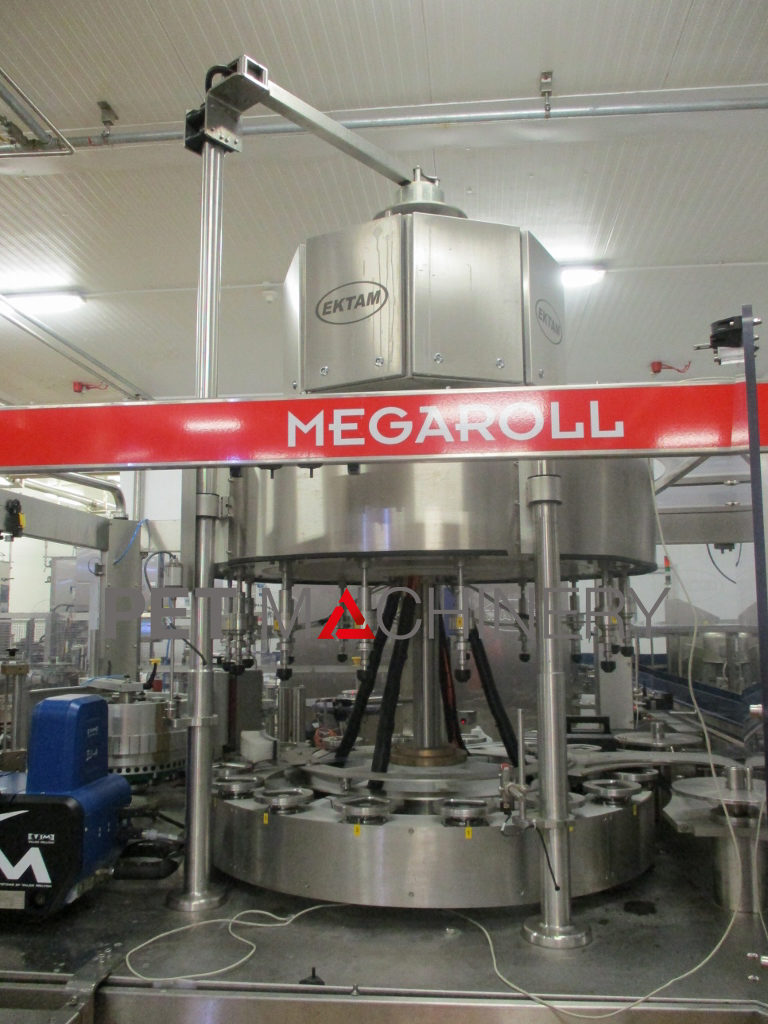

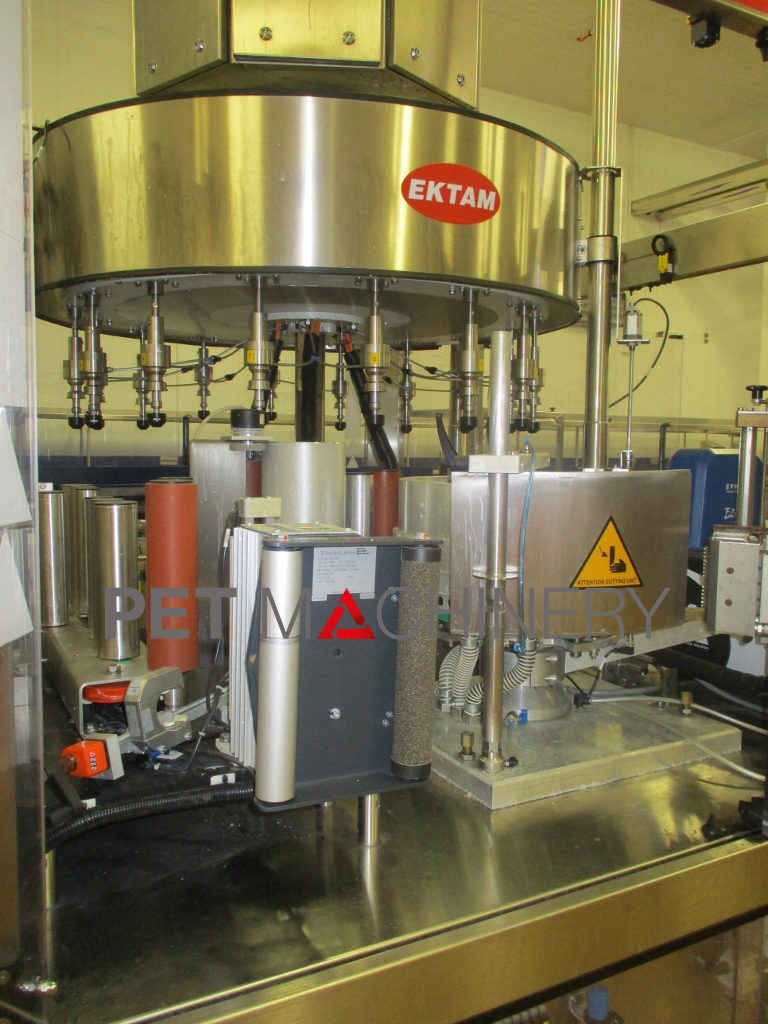

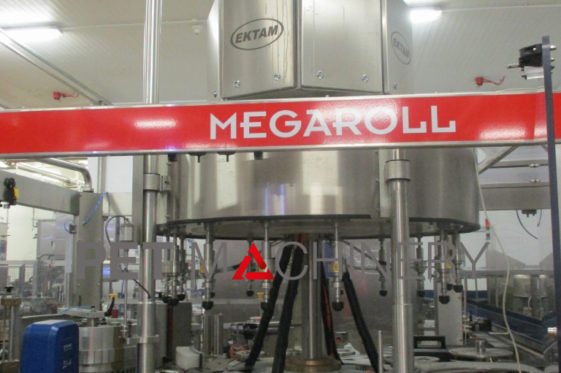

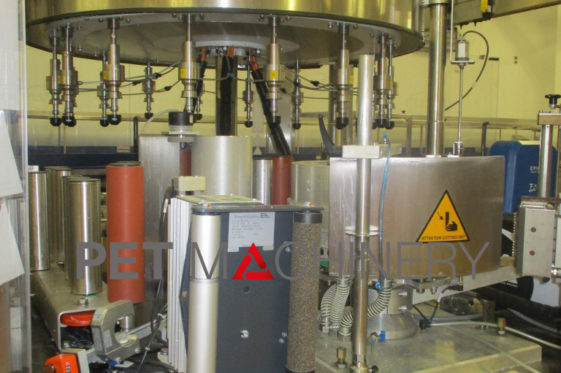

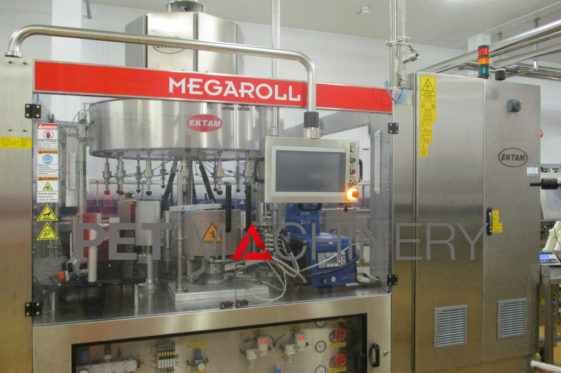

* Ektam Megarol RS-16 10 head Wraparound OPP plastic labeller for rectangular bottles
– with Valco Melton EC-4 melt unit
– “electronic motion control system” to enable applying label on rectangular bottles
– “air inflation system” for pressurizing empty bottles during labelling
– “double reel unroll stand” for quick change of label roll
– automatic height adjustment system for quick format change
– inspection and rejection system for label presence for once piece of label
– change parts for the various bottles run.

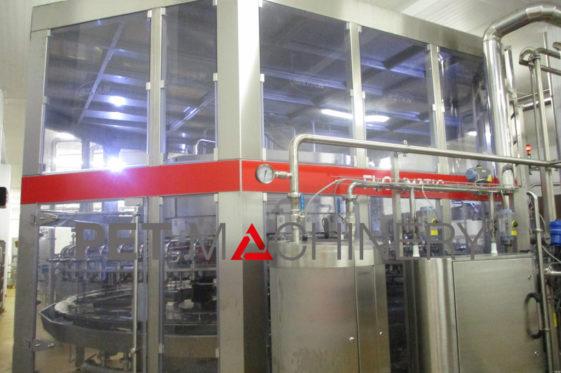

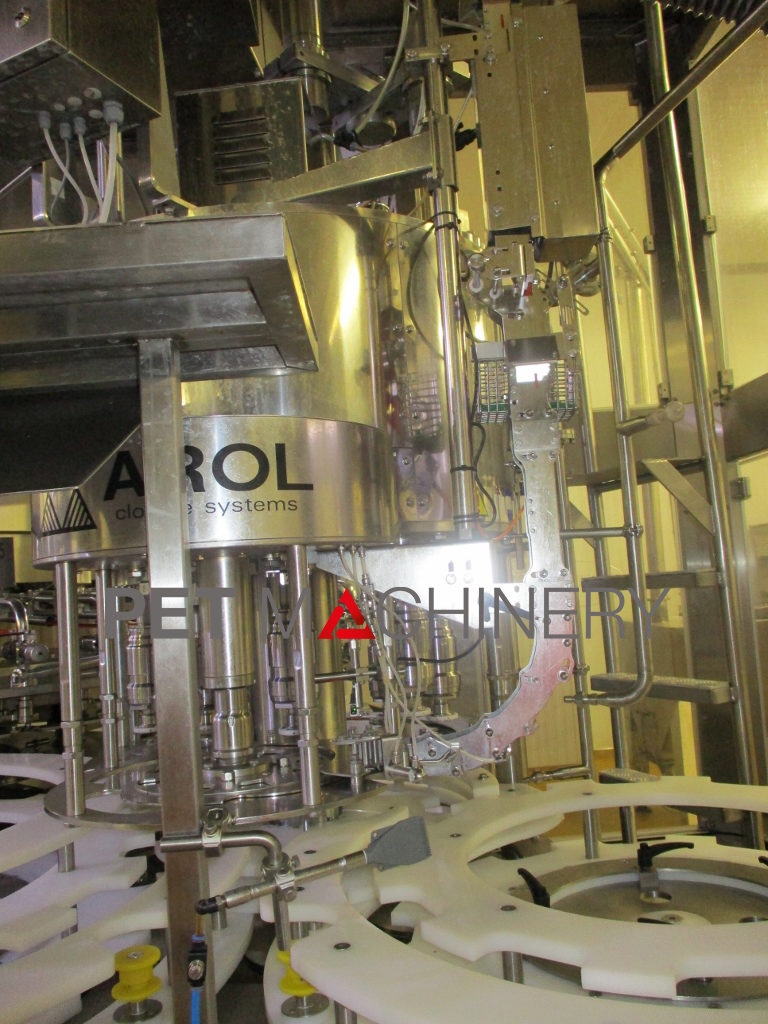

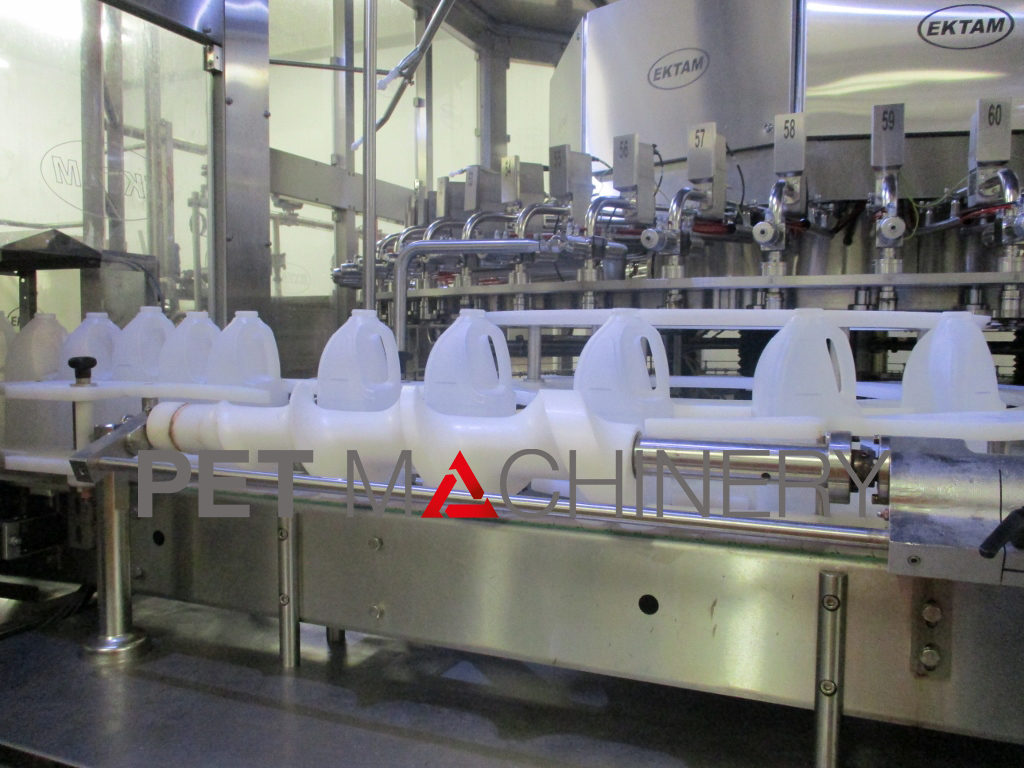

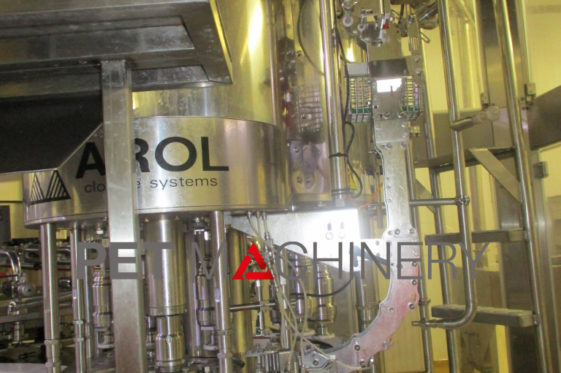

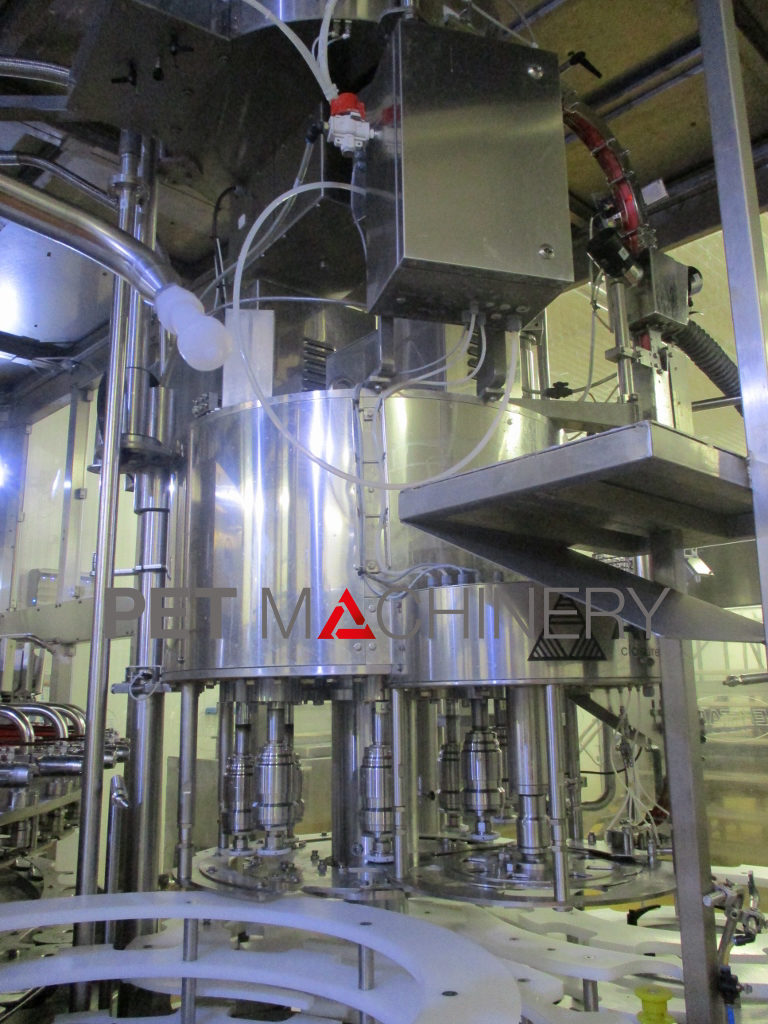

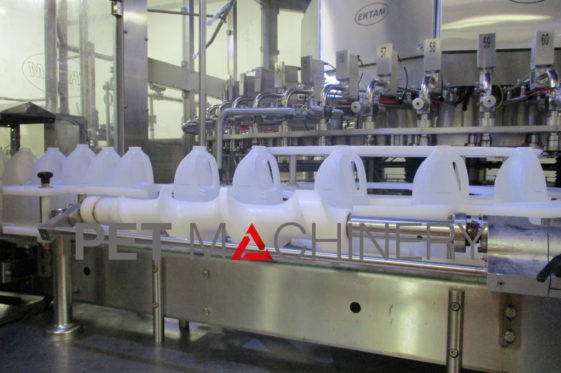

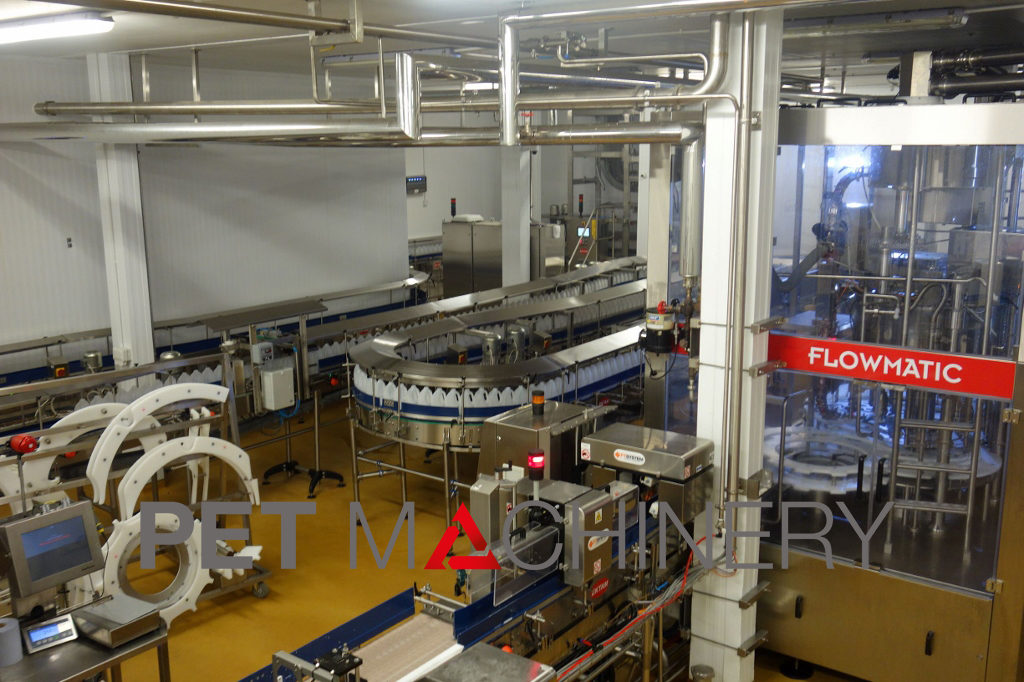

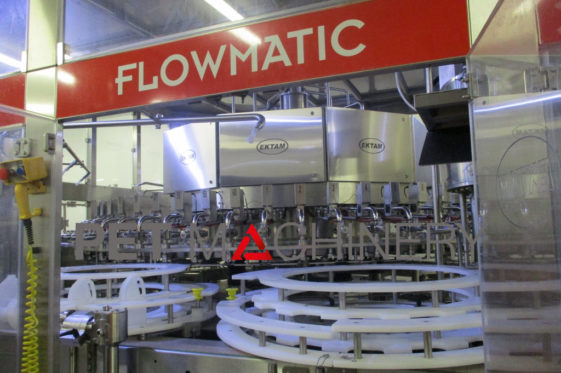

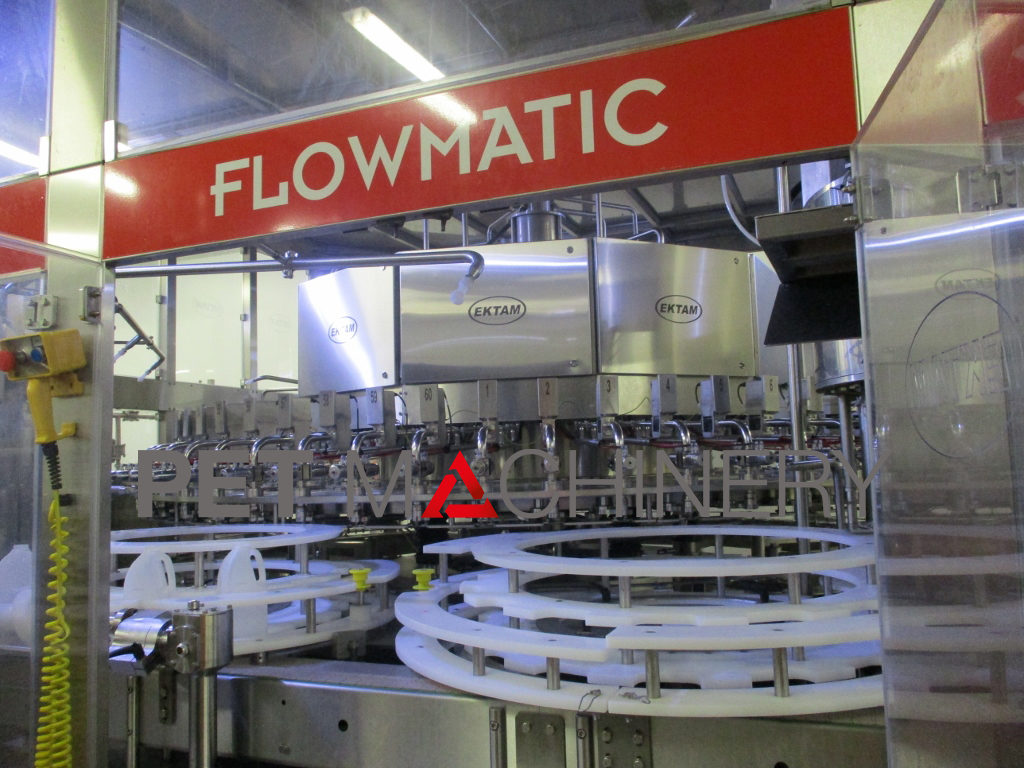

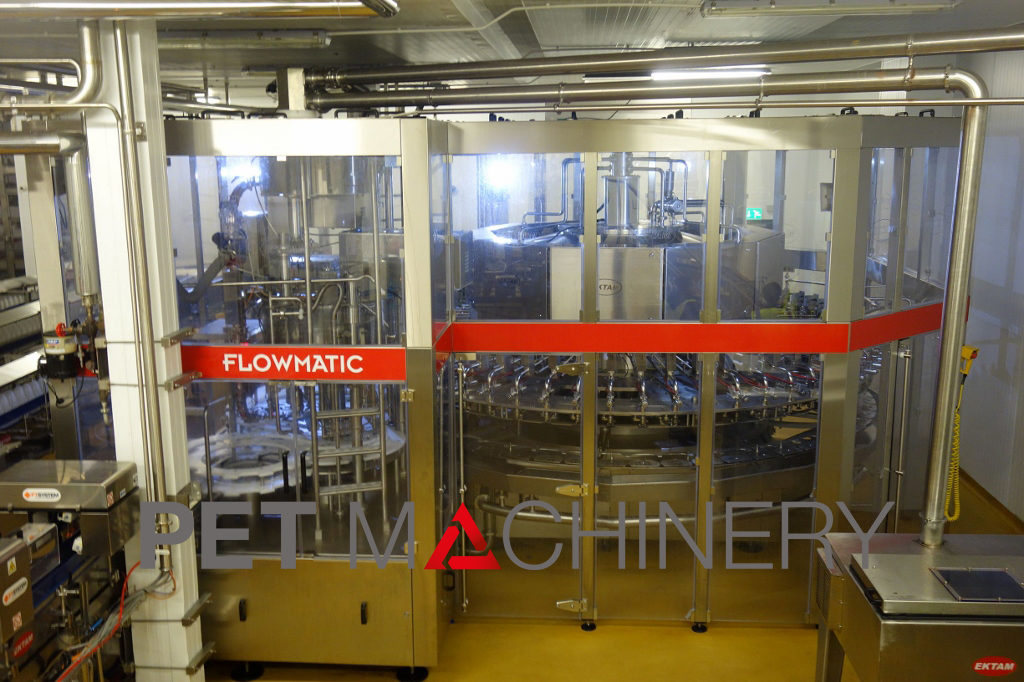

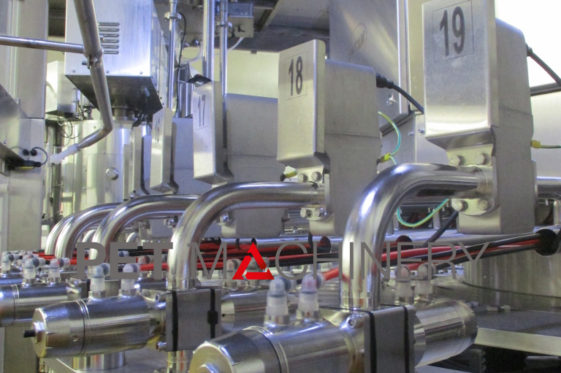

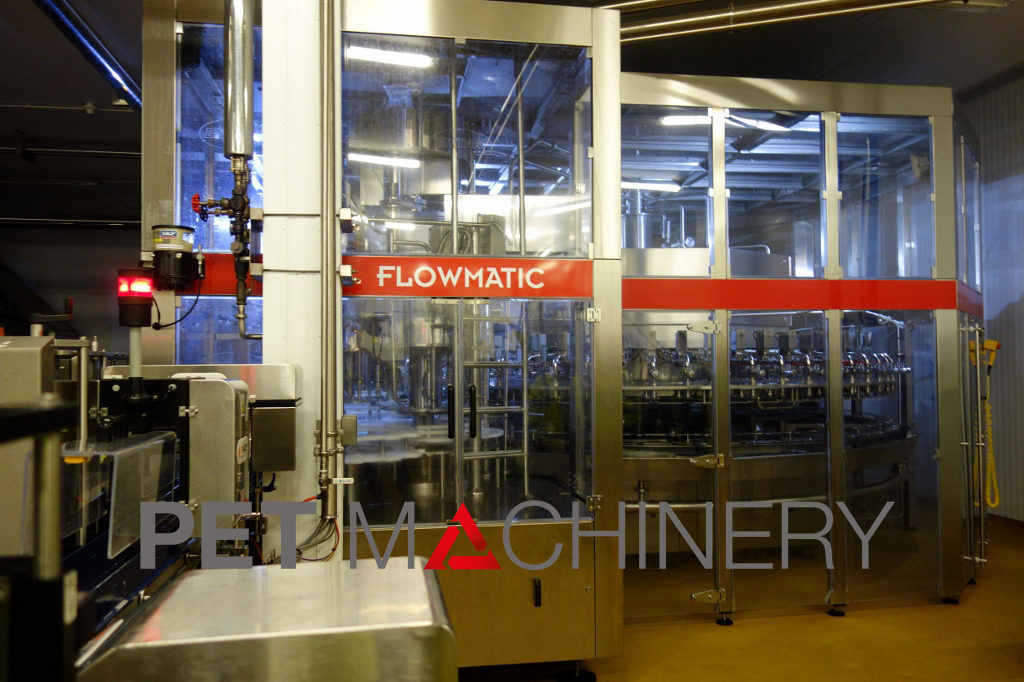

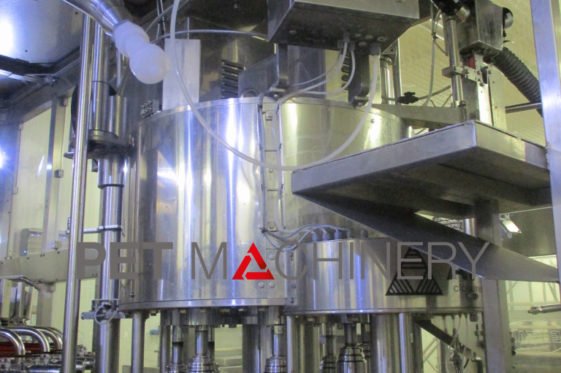

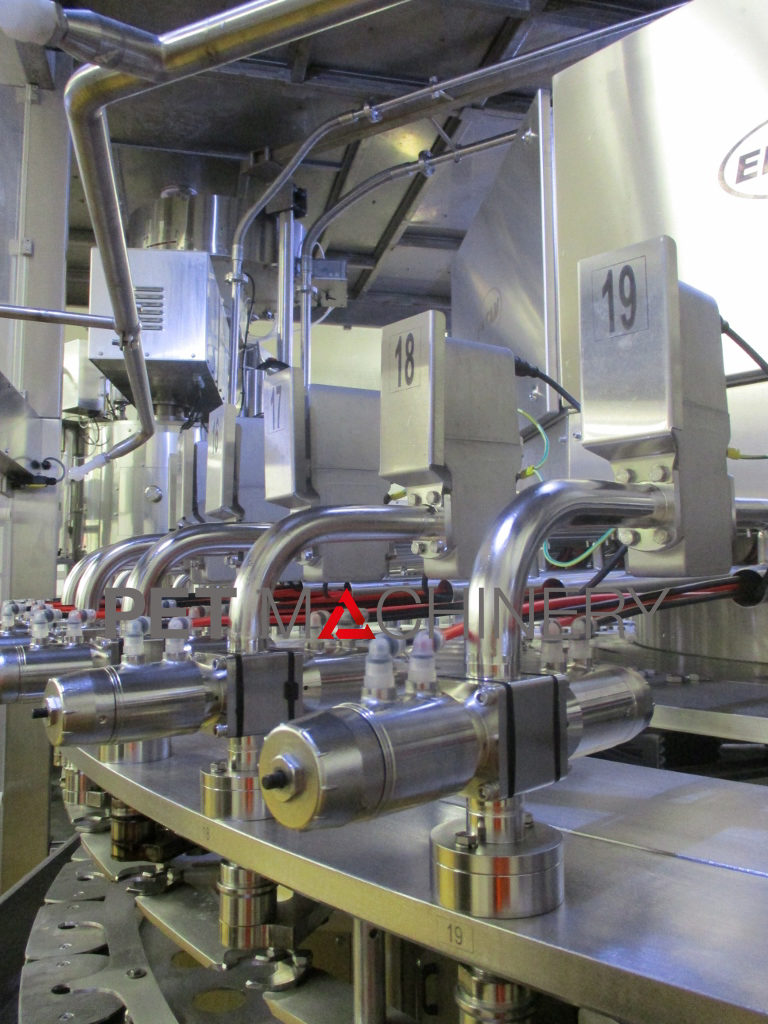

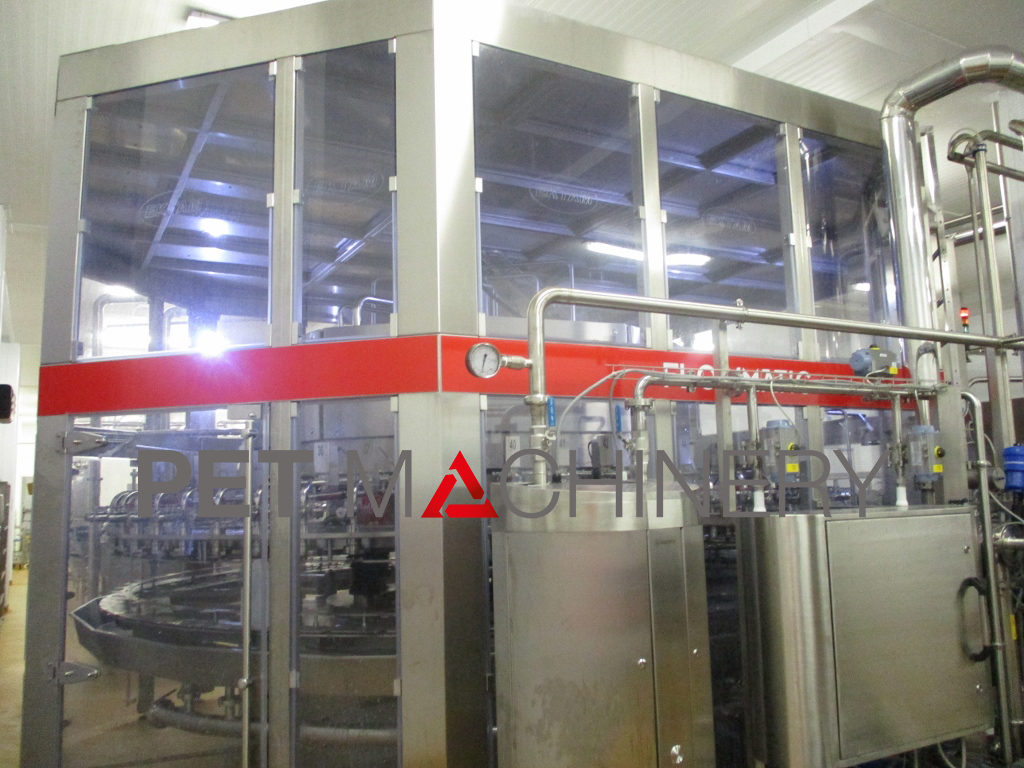

* Ektam Flowmatic 60/8/60 Electro-Volumetric filler and Arol screw capper
– foam cleaning system
– washable version of capping group
– “hygienic protection cover” on top of machine
– blowing fans with HEPA filters on protection cover
– “anti-dust system” for removing any dust and particles from inside of caps
– AISI 316 stainless steel on parts in contact with product
– automatic height adjustment system for quick format change
– change parts for the various bottles run.
* Automatic cap elevators

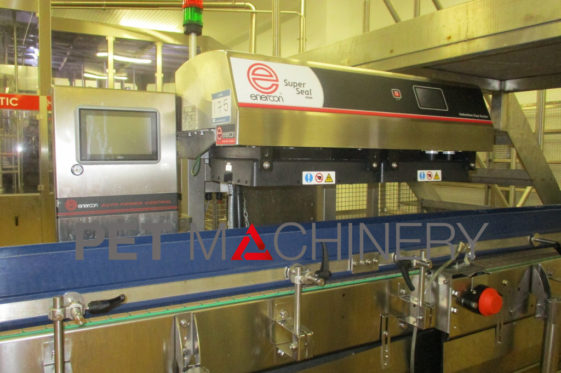

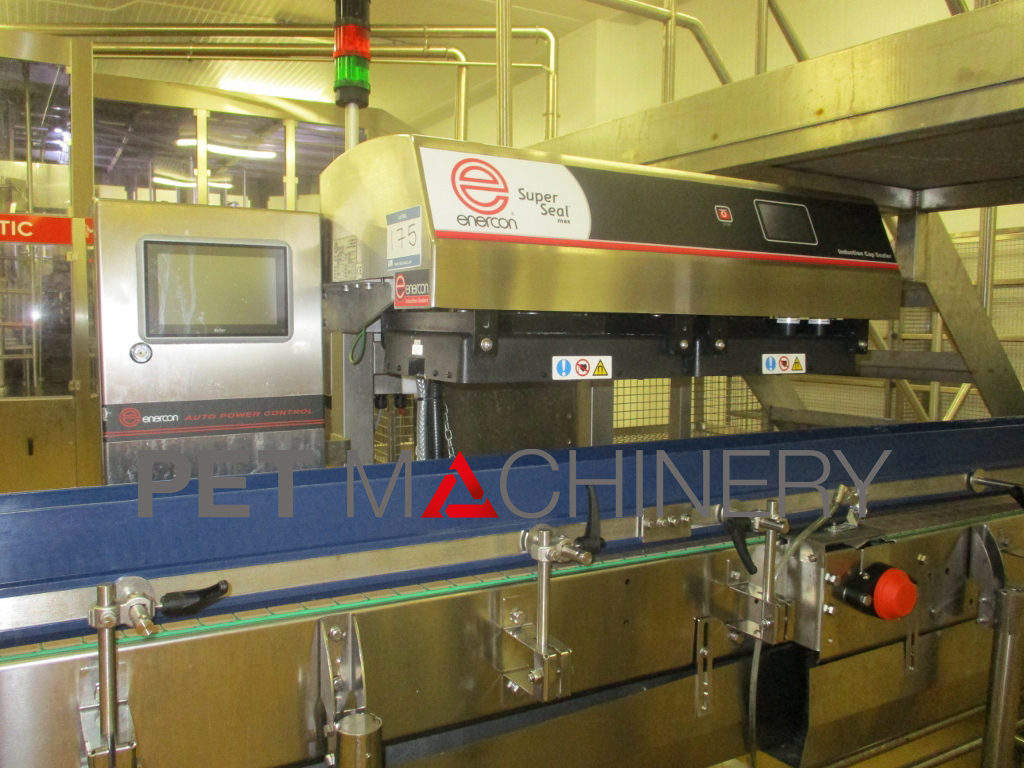

* Enercon Superseal Max induction cap sealing unit

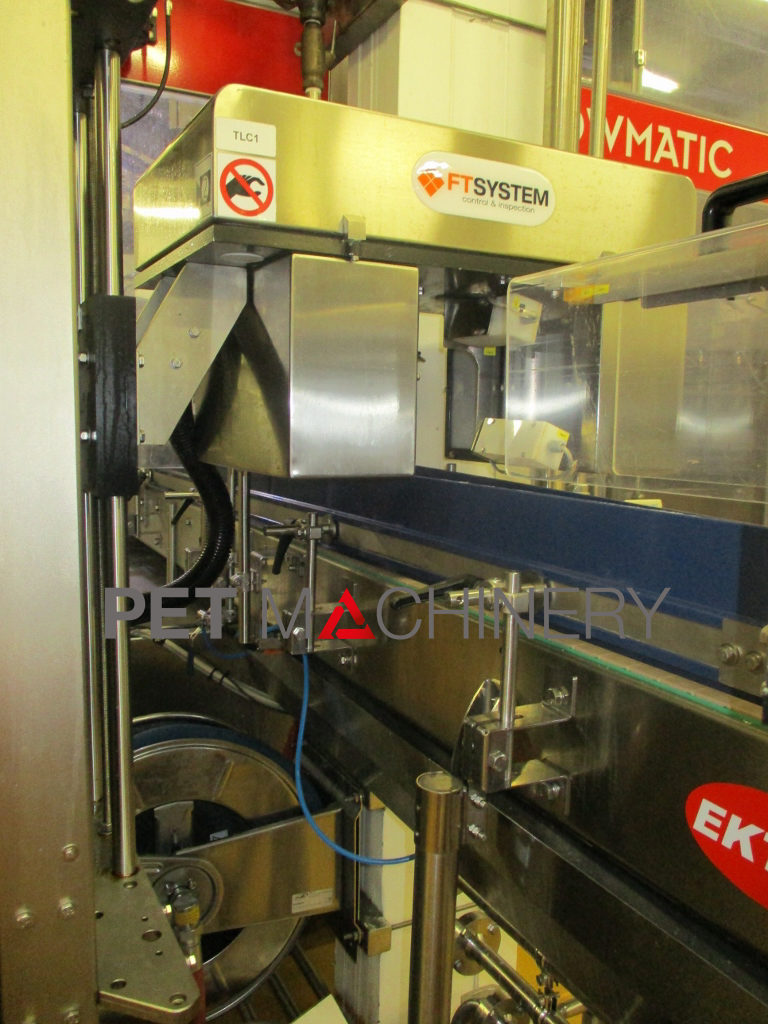

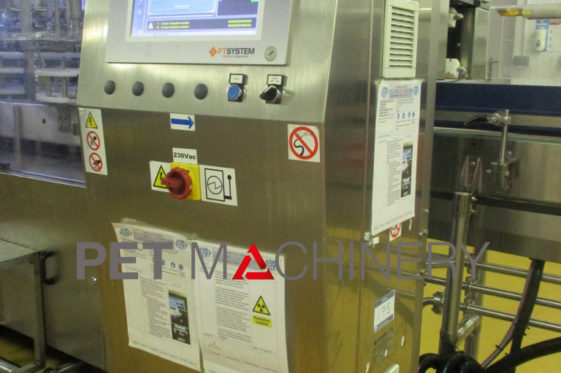

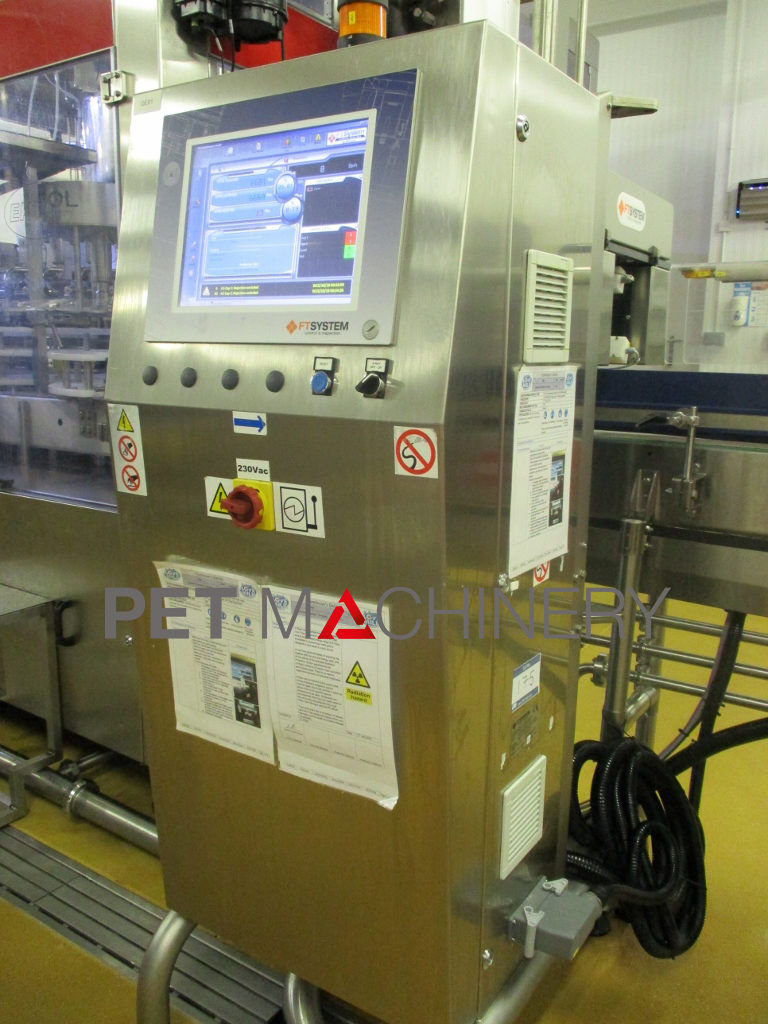

* FT System Control HS700-BC-ST+IT004-VA Inspection and rejection units for fill level, cap and aluminum foil

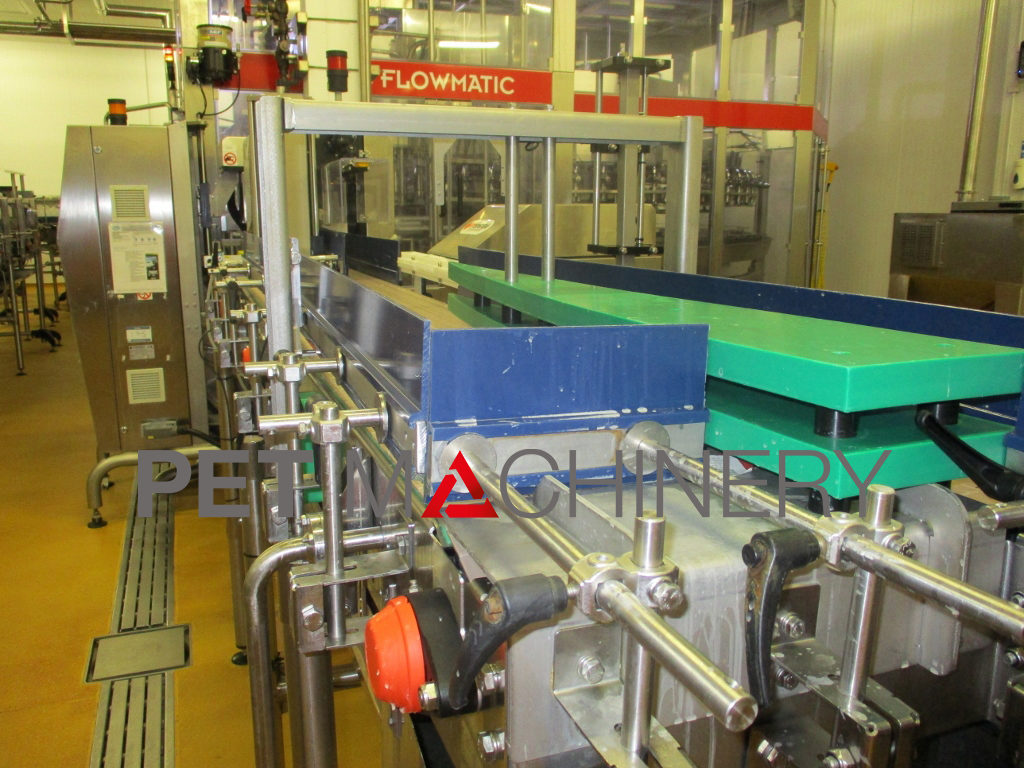

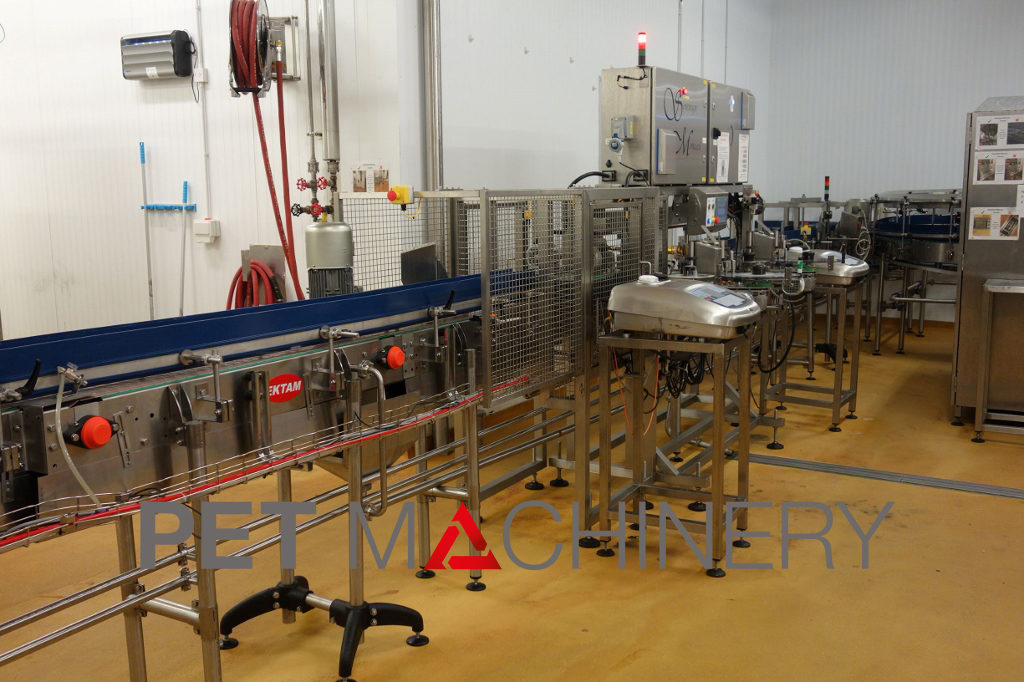

* (1) set of outlet bottle conveyors after filler
– approx. 6m total length

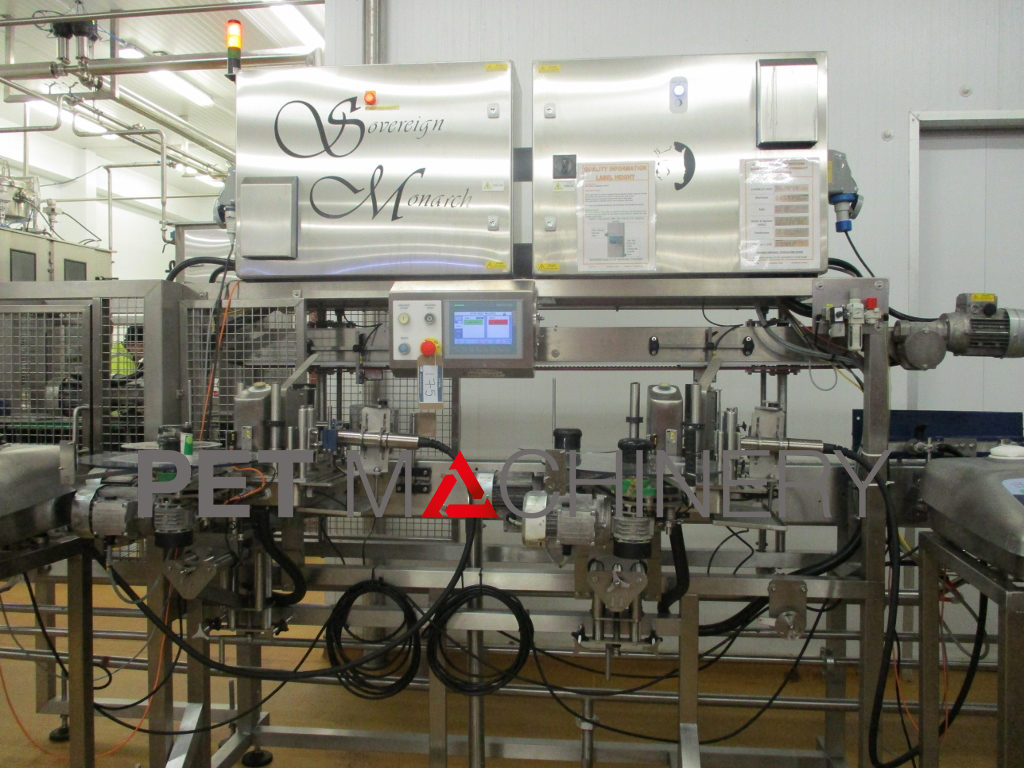

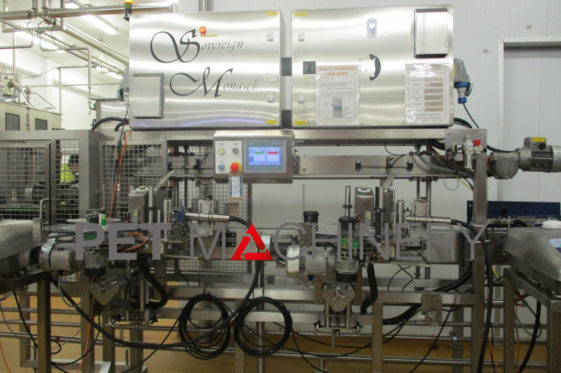

* Sovereign Monarch Twin Label applicator
* (2) Linx 7900 Inkjet printers

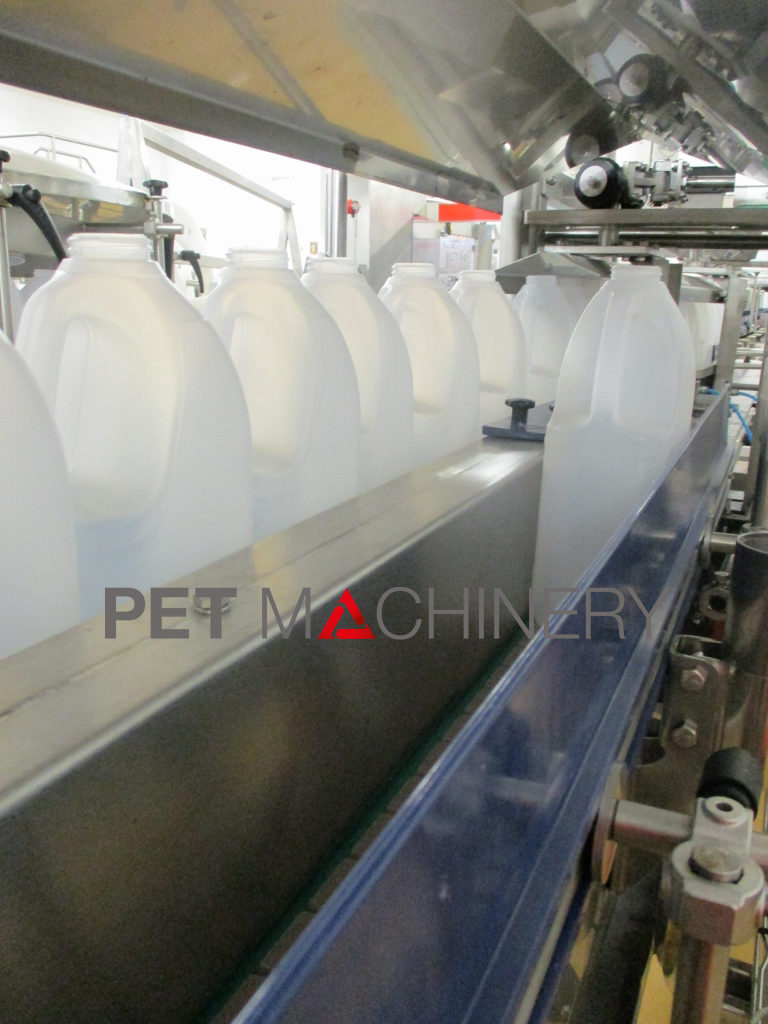

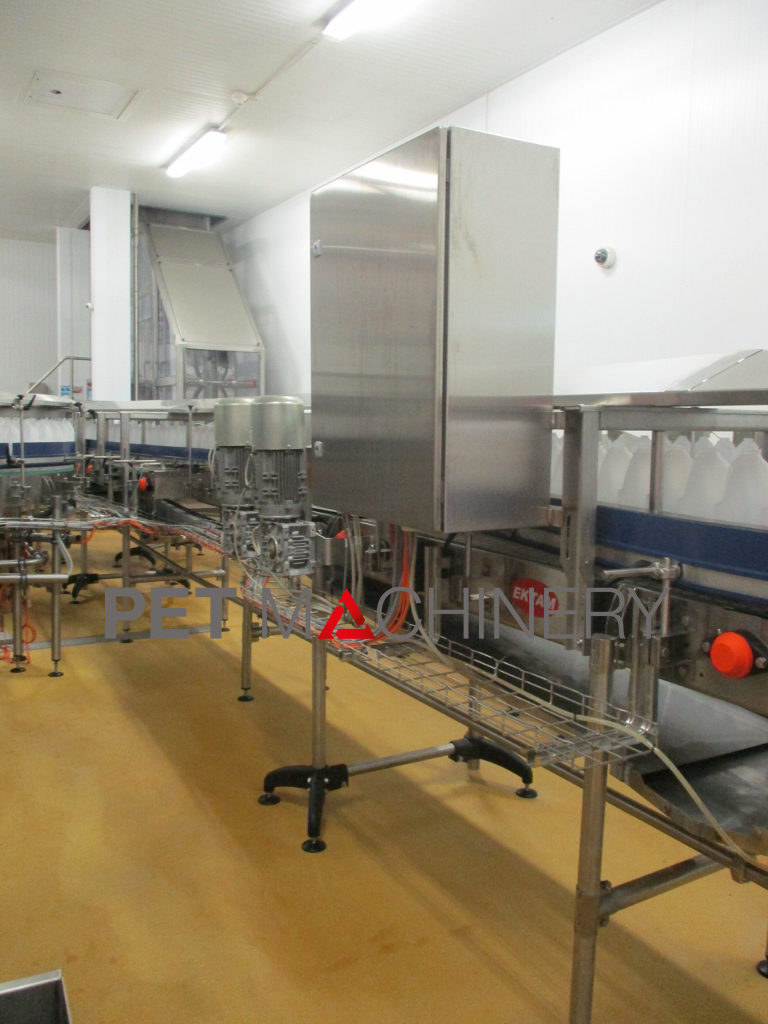

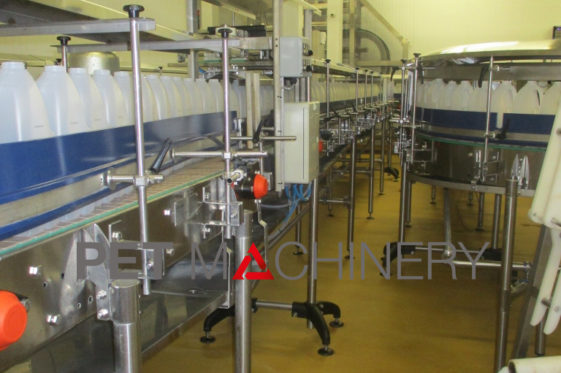

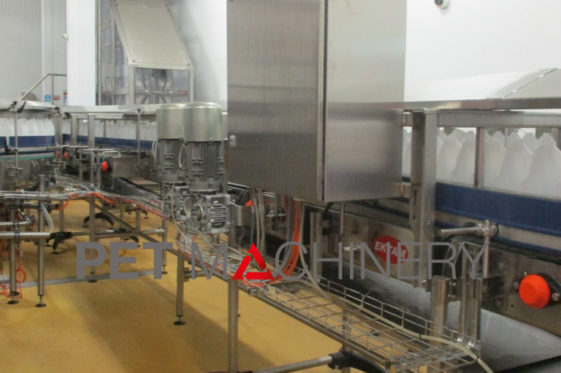

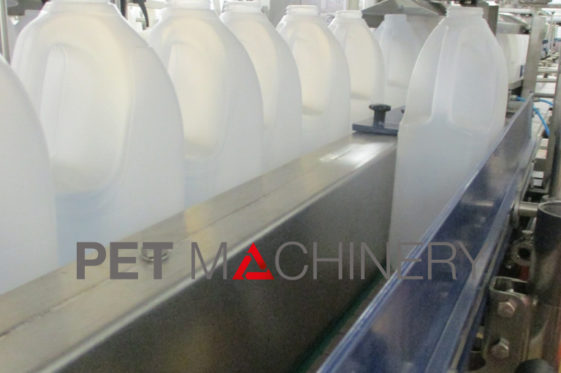

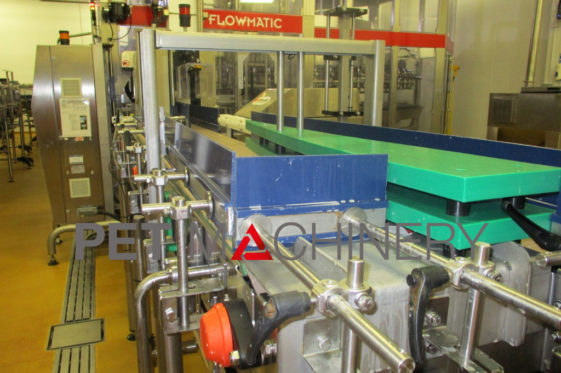

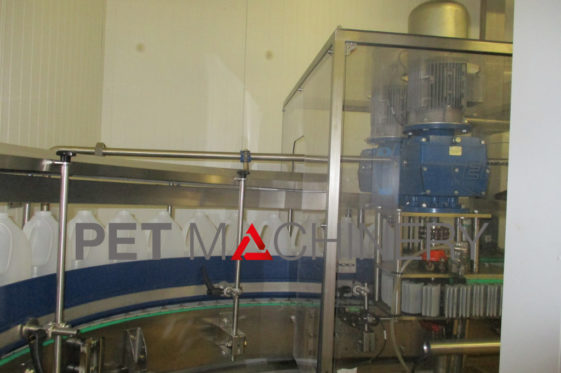

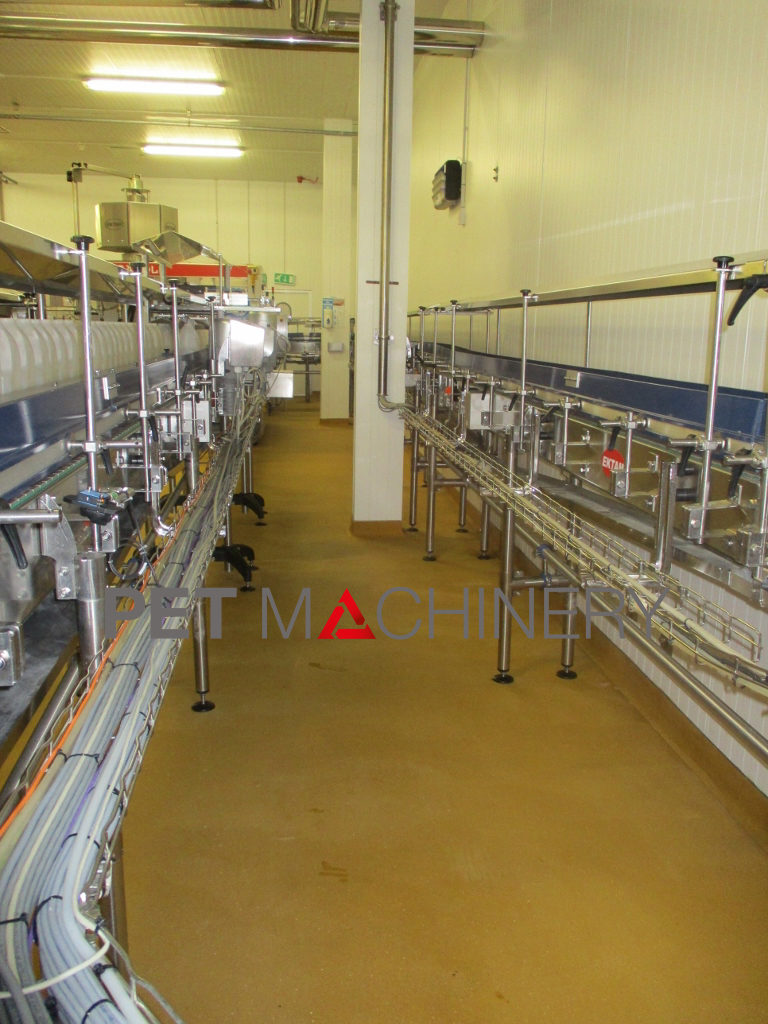

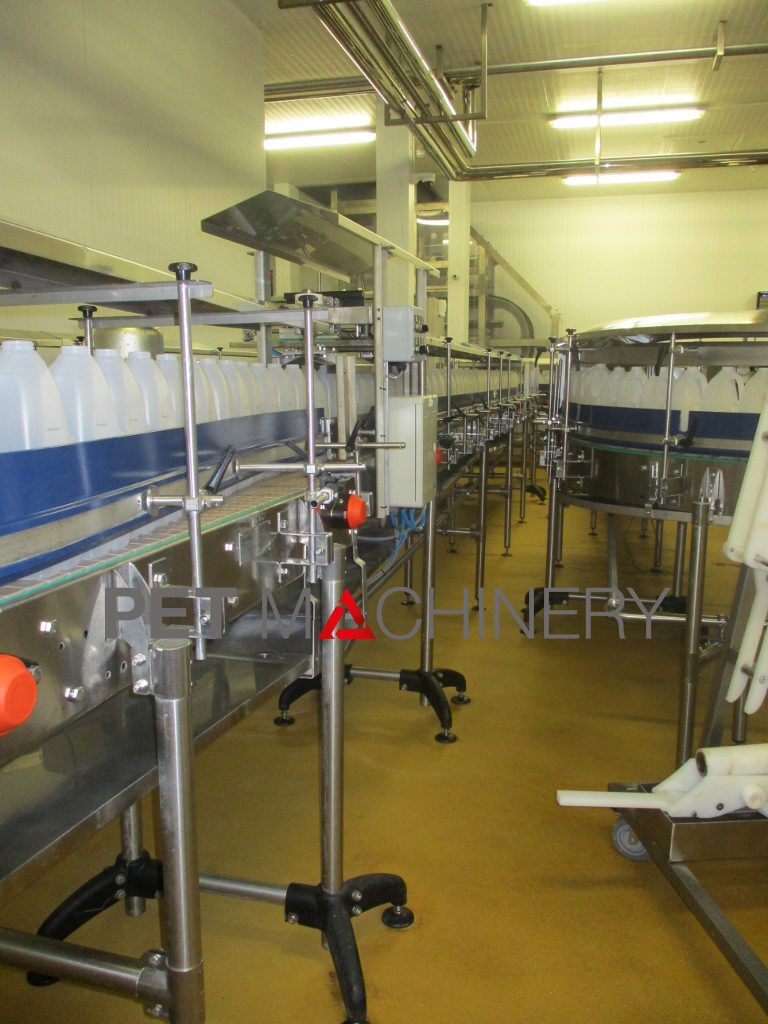

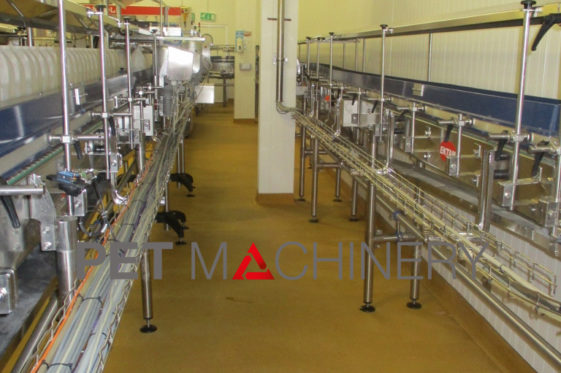

* (1) set of empty and full bottle conveyors (including double lanes)
– protection cover on top of empty bottle conveyors between bottle lowerator and filler
– conveyor washing system with spraying nozzles

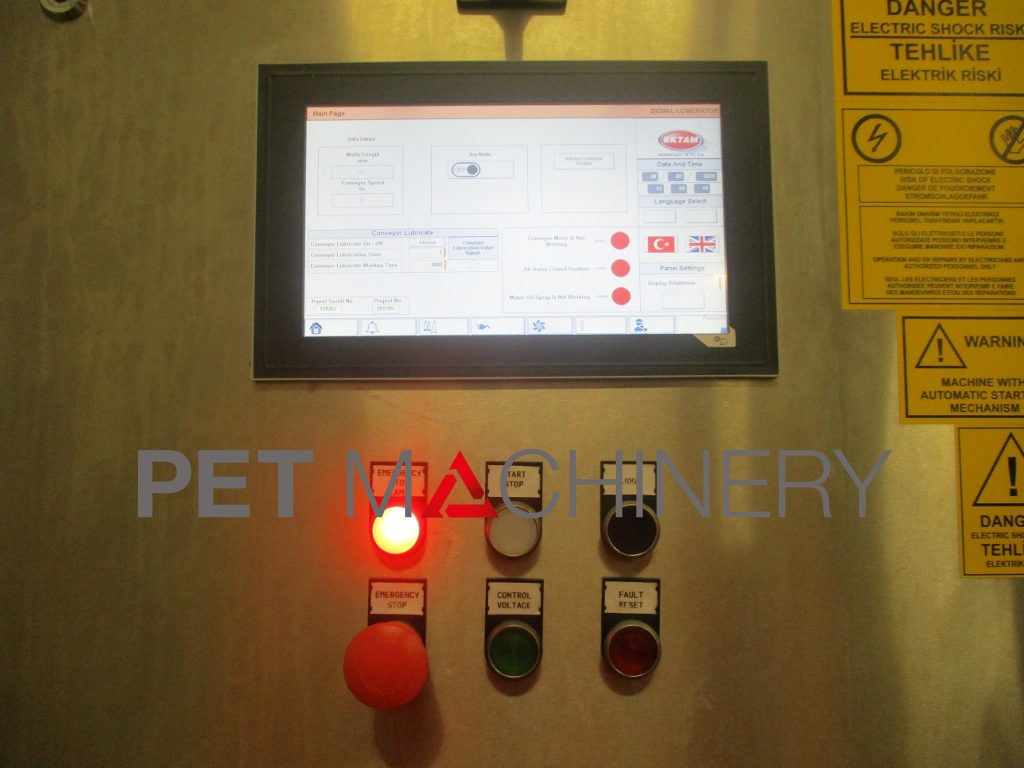

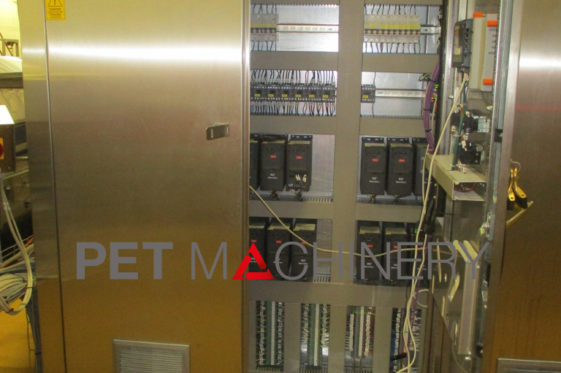

– conveyor control panel

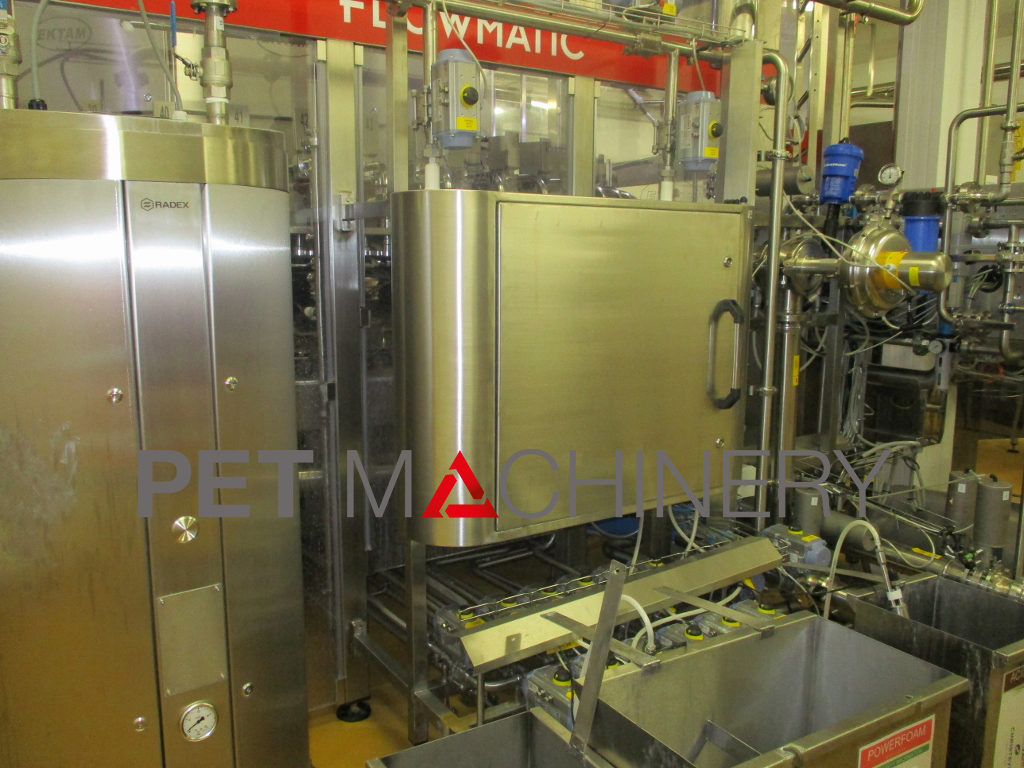

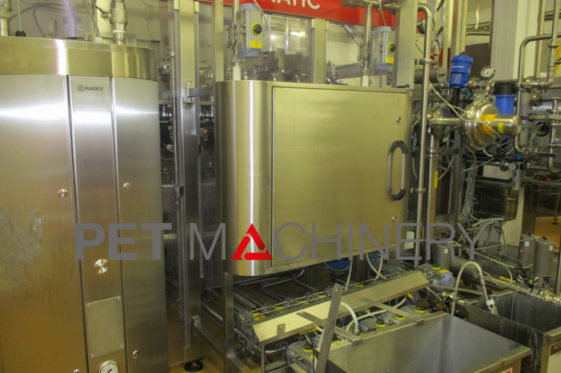

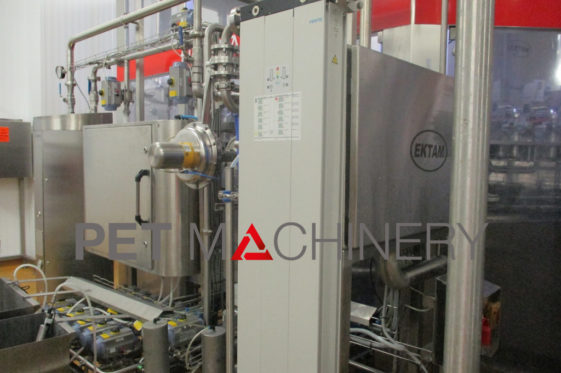

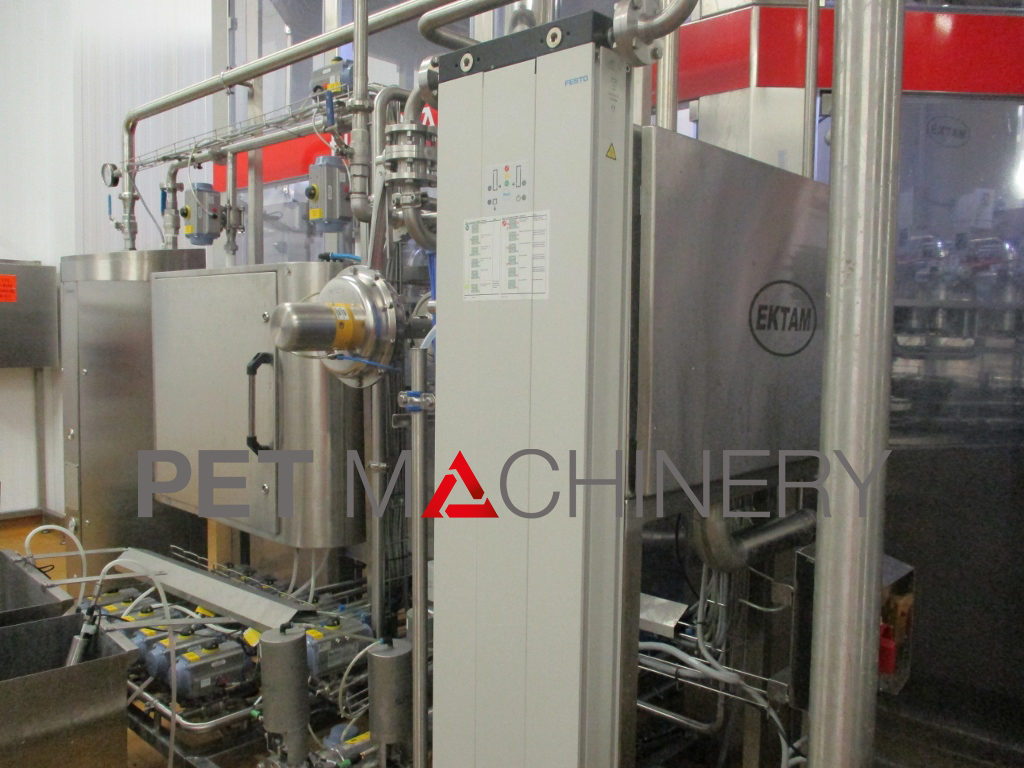

* Ektam CIP System With Radex Filtration, Valve Bank and SPX Pump with change parts for 1, 2, 4 and 6 Pint Operation
* Spare parts for 4,000 hrs of operation
