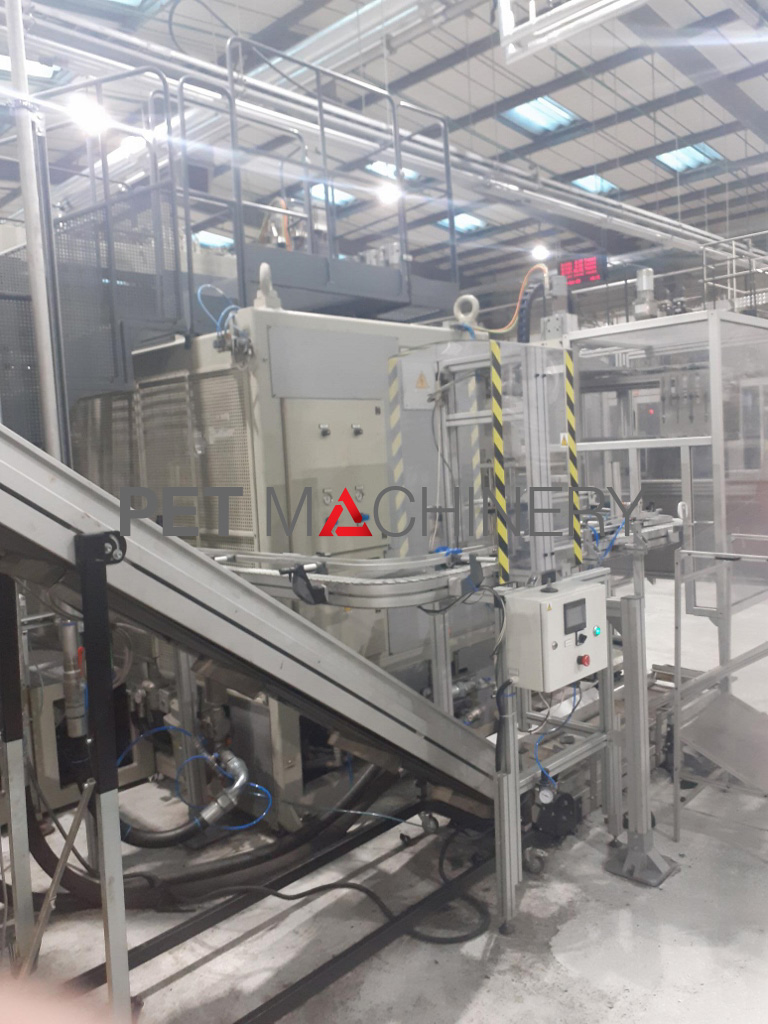

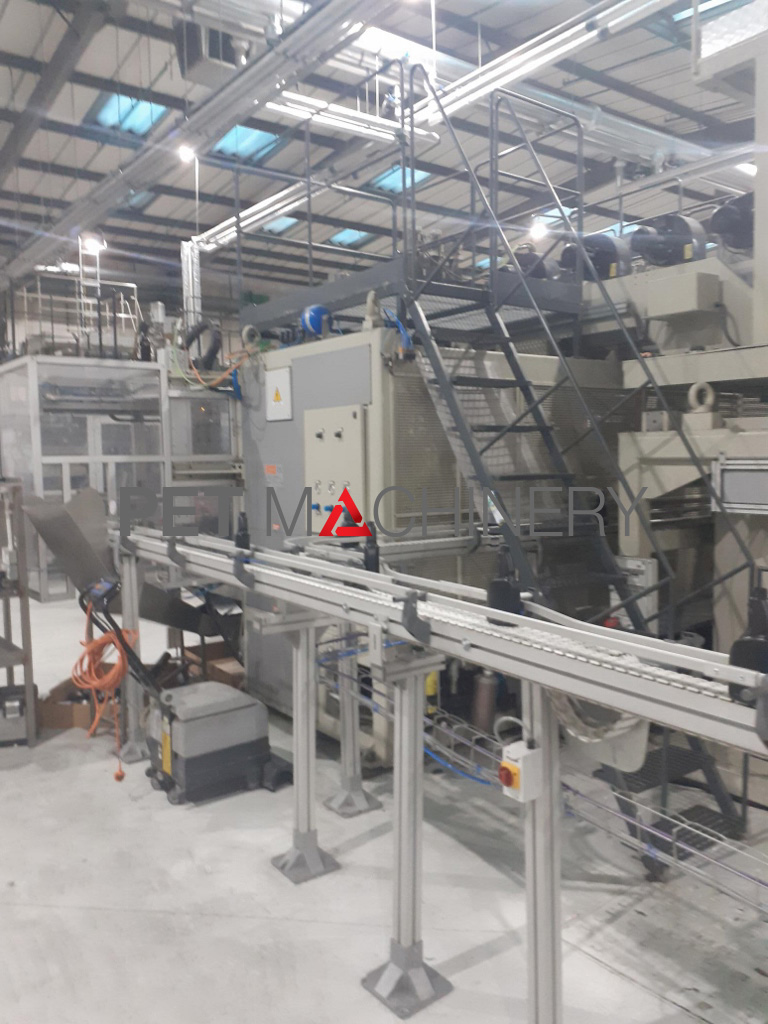

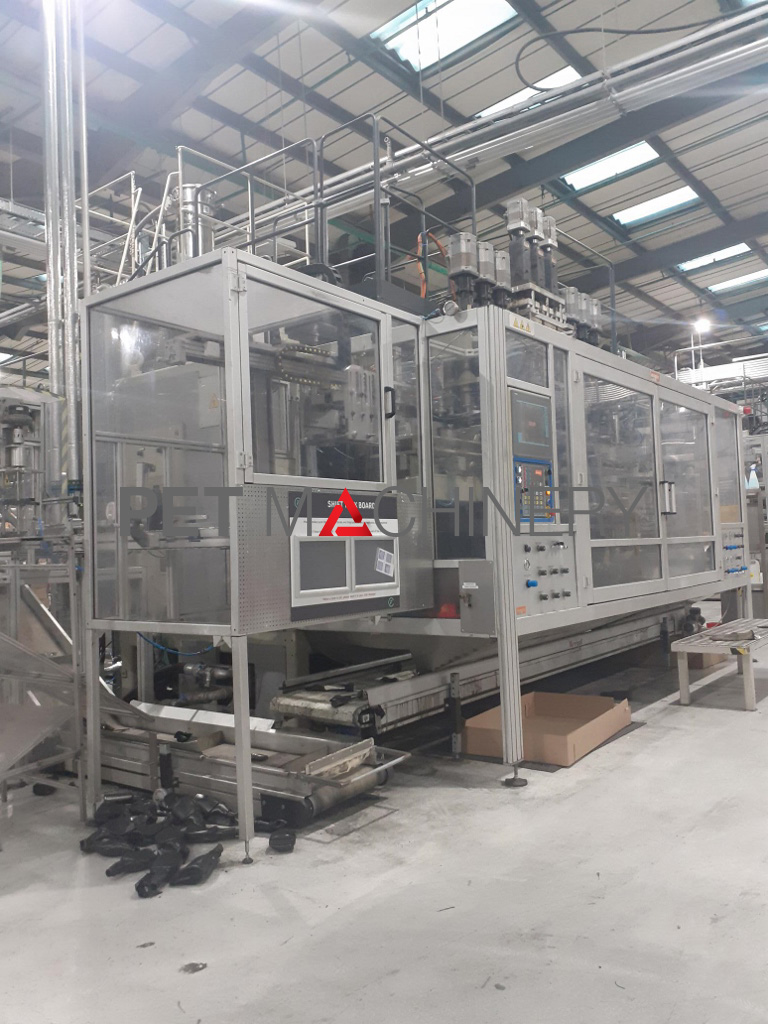

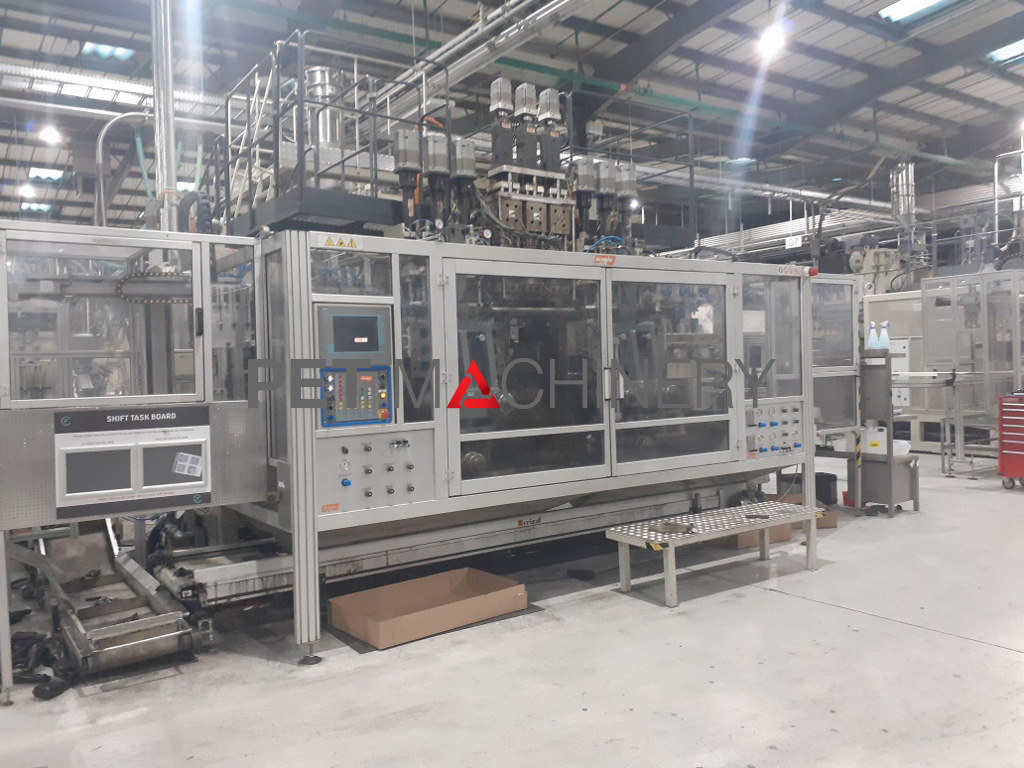

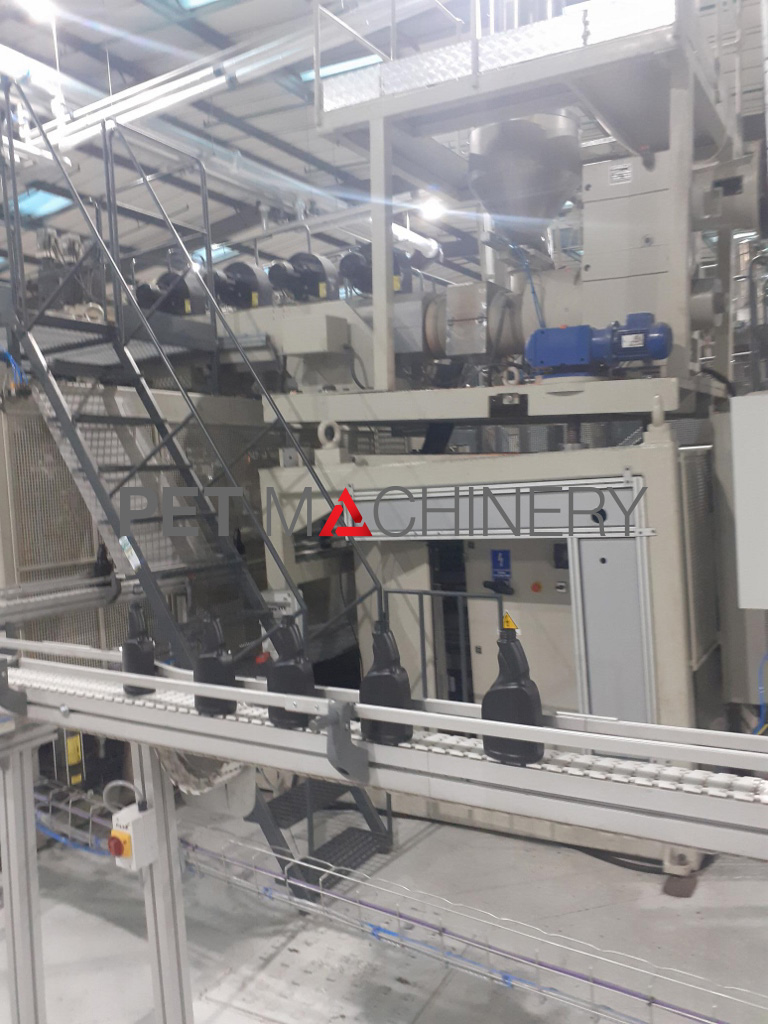

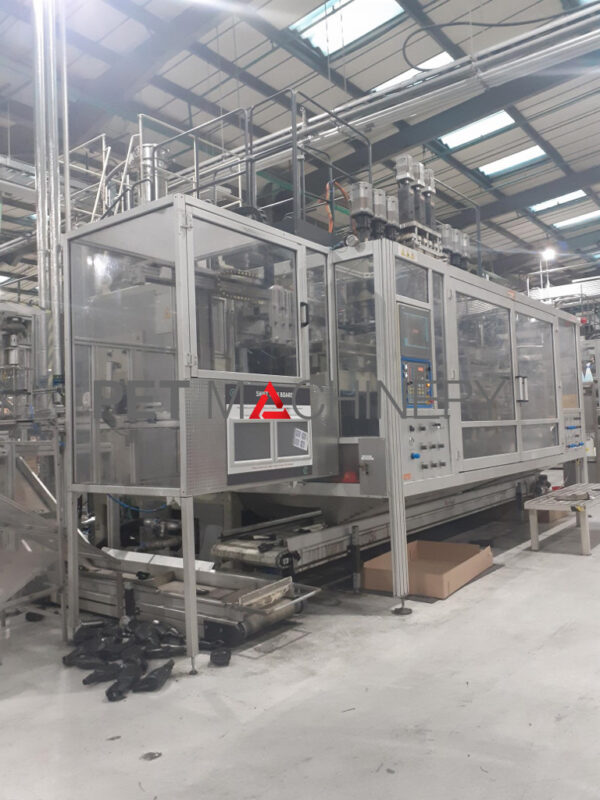

Magic ME-L20/D-T35-LS Full Electric Double Station Extrusion Blow Moulding machine

Magic ME-L20/D-T35-LS Full Electric Double Station Extrusion Blow Moulding machine, year 2018

Only approx. 500 working hours!
In excellent condition

Machine complete with:

* Extruder diameter (mm): 120 APM manufactured by Magic.
– electrically driven, with bobbing movement.
– three-phase asynchronous motor with digital inverter.
– water cooled raw material feeding zone (programmable control valve).

* Nitrited screw (hardness 1050 Vickers) for HDPE/PP – L/D=24
– plasticization capacity in virgin HDPE 450 kg/h.

* 10-way spider type head with single block bended neck, for HDPE/PP.
– three-points die centering from the front.

* Electro-mechanical clamping system.
* Electro-mechanical linear carriage movement.

* Parison thickness control system with 300-point profile, integrated into Siemens control panel.

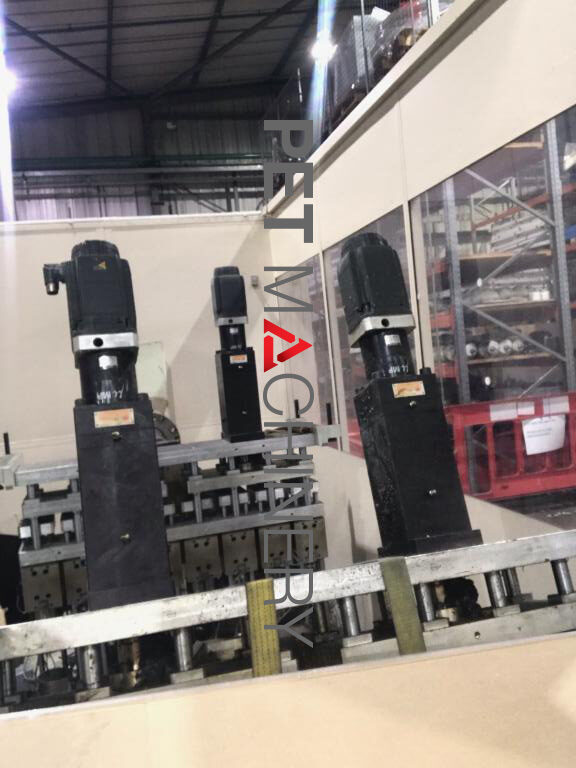

* Servo-actuators with integrated electronics.
* Parison length control via screw RPM and photocell.

* Electrically driven blow pin movement for neck calibration, by means of actuator and brushless motor with digital adjustment.
* Time-controlled blowing in three ramps via programmable proportional valve.

* Pre-blow in low pressure.
* Parison cutting: shear cutter with programmed air.
* Microprocessor control board Siemens (Microbox), with flat panel IFP.
* Gates and guards with safety interlocks, with inspection windows in polycarbonate.
* Programmable centralized lubrification, by means of 1 pump and 2-way valve.
* Machine according to EC norms.

Technical data:
Max mould dimensions (L x W x H): 1290 – 2x 180 – 480
Opening stroke: 380 mm
Total installed electric power: 208.2 kW

Does not include any ancillaries or blow moulds.
Machine has been recently dismantled and moved to warehouse to make space for new equipment.
Immediately available.
