Krauss Maffei KM 175-1900 CV

Year of Manufacture 1998
Condition Good
Availability Immediate
Sold Status For Sale

Price Estimate

There may be an estimate available for this product.
Login or Register to find out more.

Login or Register to add this item to your Watch List.

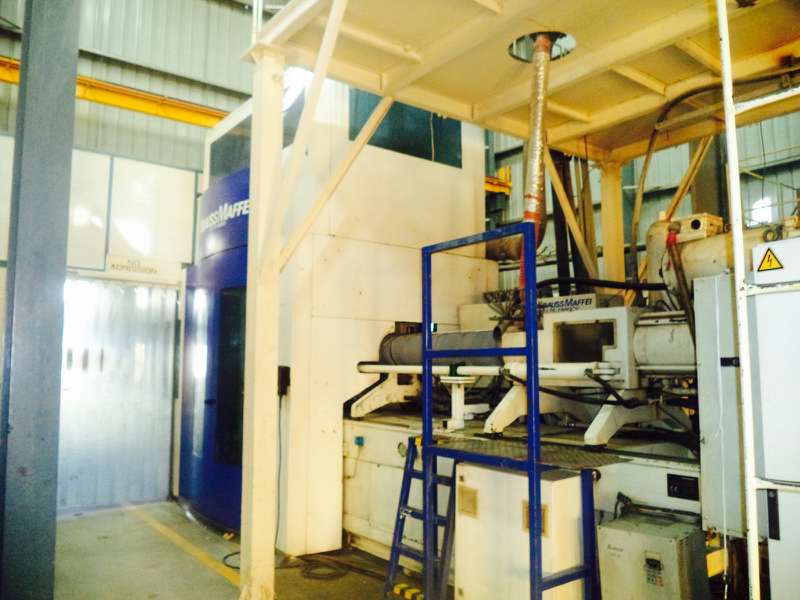

Krauss Maffei KM 175 24-Cavity PET Preform Injection Moulding system, year 1998 – consisting of :

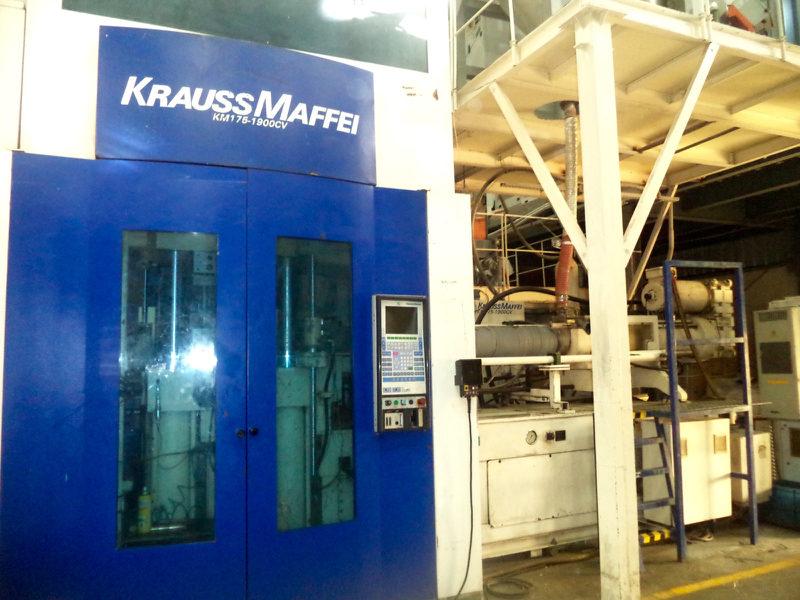

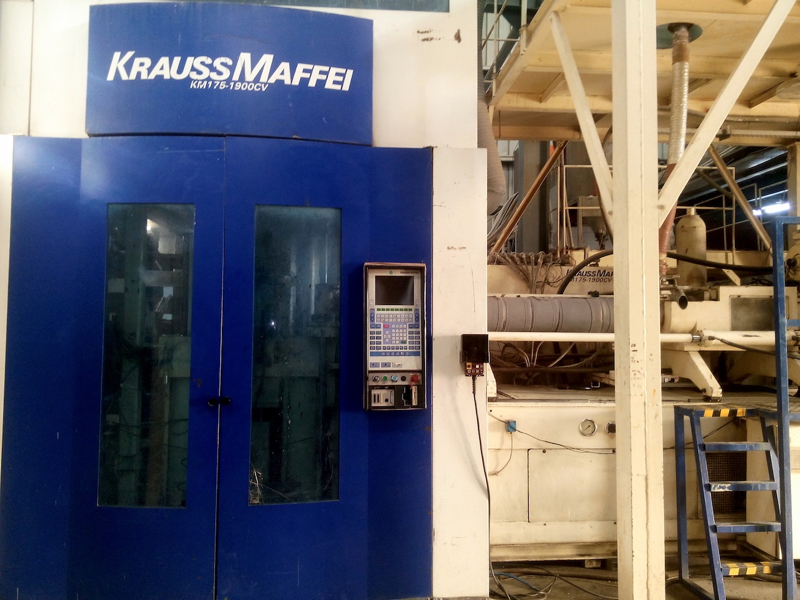

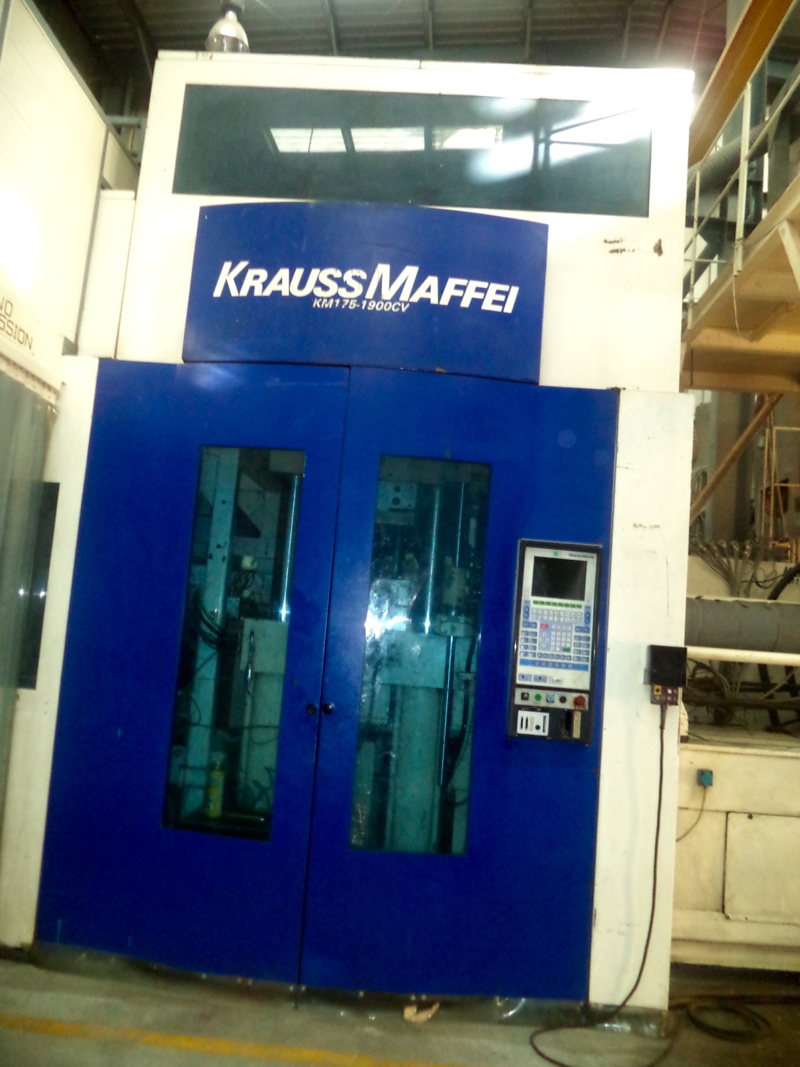

* Krauss Maffei KM 175-1900 CV Preform Injection Moulding machine
– Machine Voltage / Amp / Frequency : 400 V / 354 A / 50 Hz
– Pump Motor : 44.4 kW @ 60 Hz

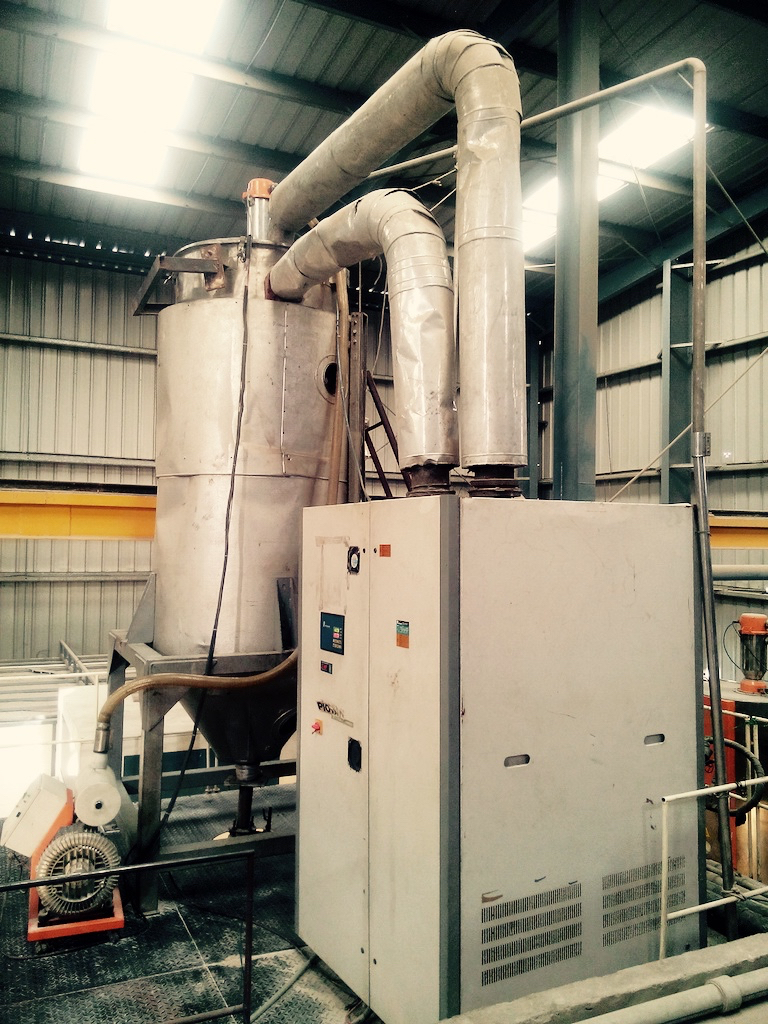

* Piovan DS 428 Resin Dryer
* Fasti MSP 20C Mould Dehumidifier

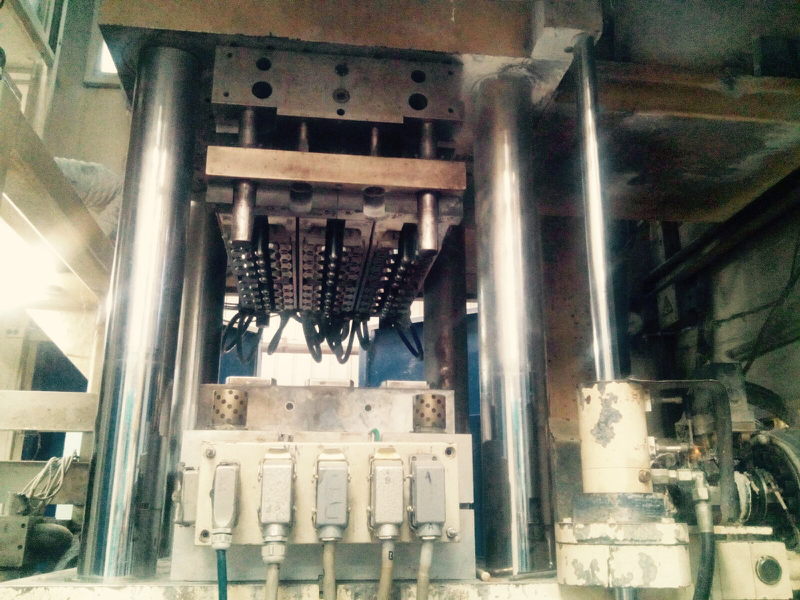

* 24 Cavity Hot Runner

One of the following moulds would be included with the machine :

* Mould Option 1 :

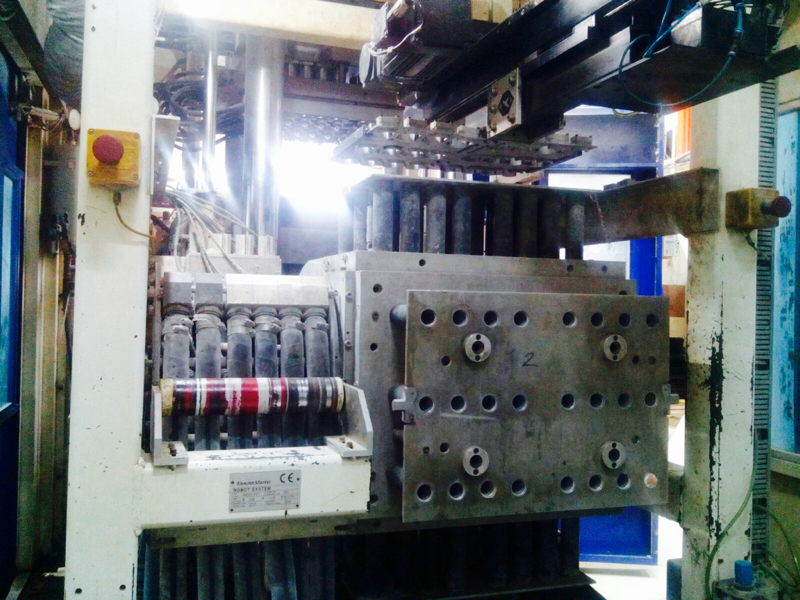

– 24 Cavity Mould, conversion kit, gripper plate, and EOAT for producing 100.5 mm long PCO1810 21.5, 25 & 27 gm preforms PCO1810 Thick Neck 29 gm preforms
Cycle Times / Outputs are-
PCO1810 21.5 gm : 13.2 sec / 6,500 PPH
PCO1810 25 gm : 15.4 sec / 5,600 PPH
PCO1810 27 gm : 16.6 sec / 5,200 PPH
PCO1810 Thick Neck 29 gm : 17.3 sec / 5,000 PPH

* Mould Option 2 :
– 24 Cavity Mould, conversion kit, gripper plate, and EOAT for producing 125 mm long 30 and 36 gm preforms in PCO1810 and Alaska Neck Finishes
Cycle Times / Outputs are-
PCO1810 30.5 gm : 14.9 sec / 5,800 PPH
PCO1810 36 gm : 16.5 sec / 5,200 PPH
Alaska 30 gm : 14.9 sec / 5,800 PPH
Alaska 35.5 gm : 16.5 sec / 5,200 PPH

Mould Option 3 : 24 Drop Mould, conversion kit, gripper plate, and EOAT for producing 133 mm long PCO1810 42 & 48 gm preforms PCO1810 Thick Neck 48 gm preforms
Cycle Times / Outputs are-
PCO1810 42 gm : 18.2 sec / 4,800 PPH
PCO1810 48 gm : 21.5 sec / 4,000 PPH
PCO1810 Thick Neck 48 gm : 20 sec / 4,300 PPH

Note : Machine can also be sold without the moulds

Machine is in average to good condition, can be seen in production until mid December 2015.
