Complete Glass Bottling line for Carbonated Soft Drinks
| Year of Manufacture | 2000 - 2017 |
|---|---|
| Condition | Very Good, but dismantled and packed |
| Availability | Immediate |
| Sold Status | For Sale |
Price Estimate
There may be an estimate available for this product.
Login or Register to find out more.
Login or Register to add this item to your Watch List.
View More Images
Login or Register to view 19 images for this product.
Complete Glass Bottling line for Carbonated Soft Drinks
Formats run: 236ml & 340ml for cider
Output capacity : 1,000 bpm (60,000 bph).
Composed of:
KHS RS 3 EKH 1-1 De-palletizer (2013)
Output capacity: 1,200 BPM
– GRIP TYPE (CRATE )

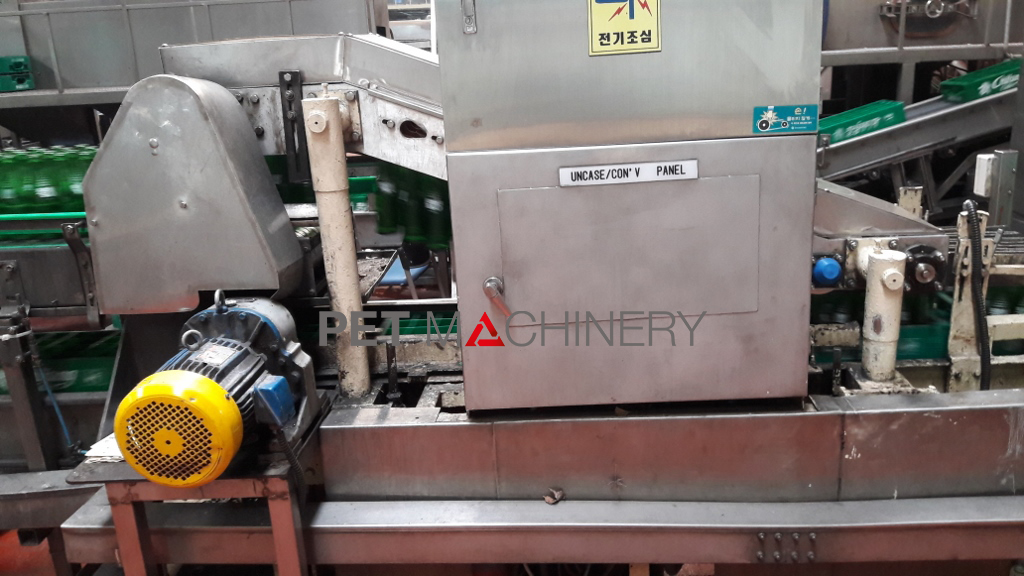

Doosan (Korea) UH-4 Un-caser (2000)
Output capacity: 40 CPM
JIN IL (Korea) AUTO ROTARY De-crowner (2013)
Output capacity: 1,200 BPM

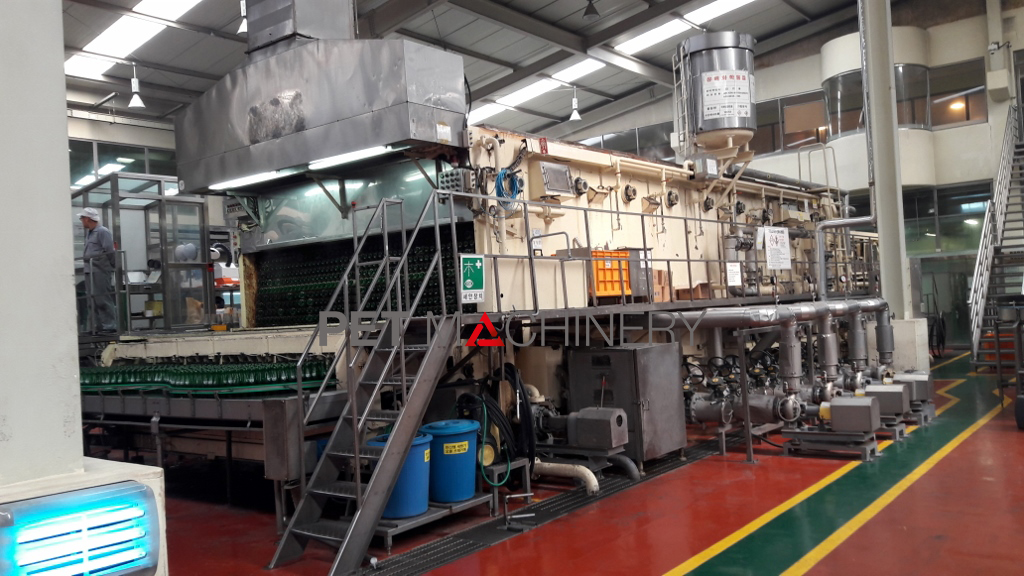

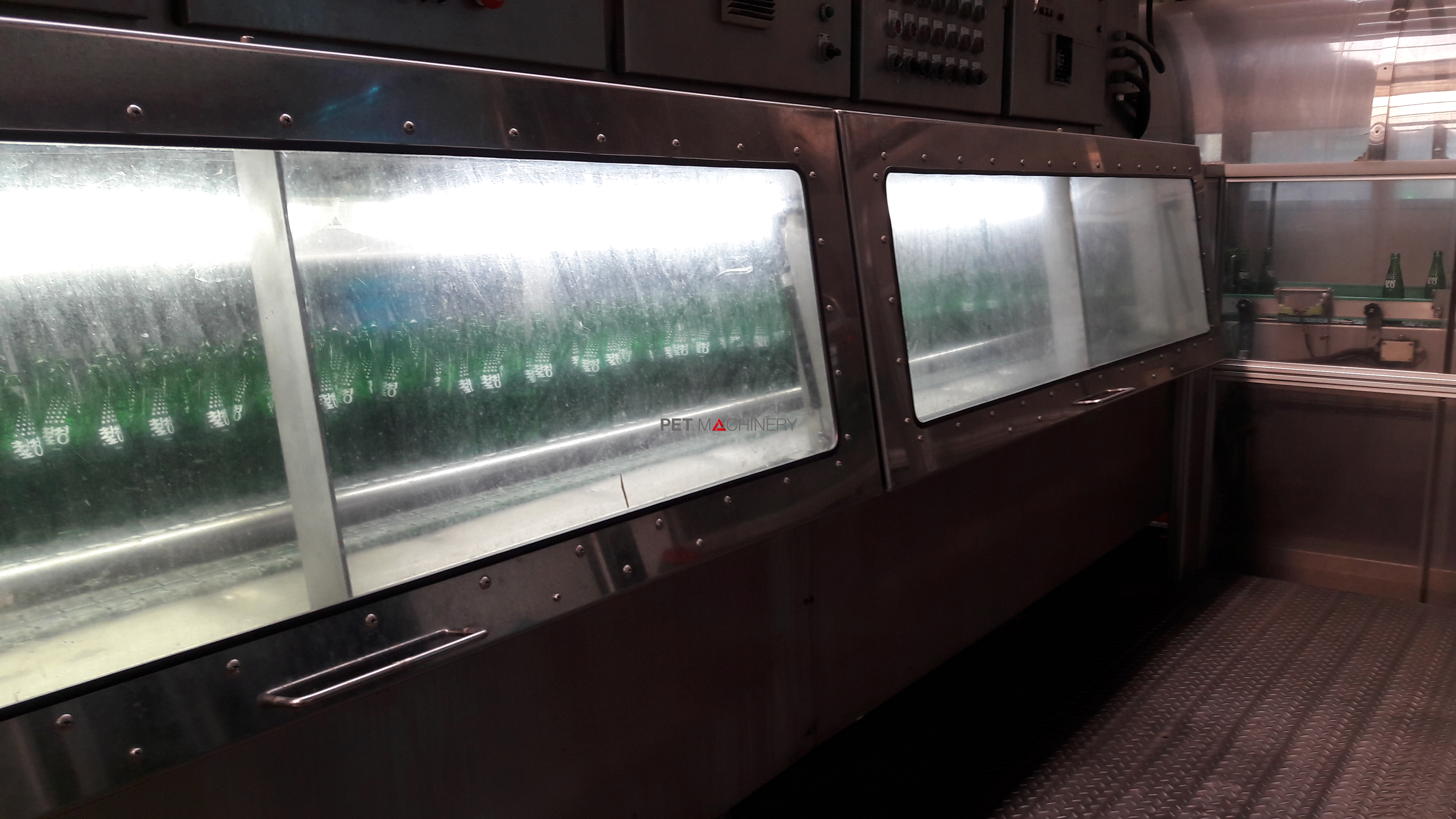

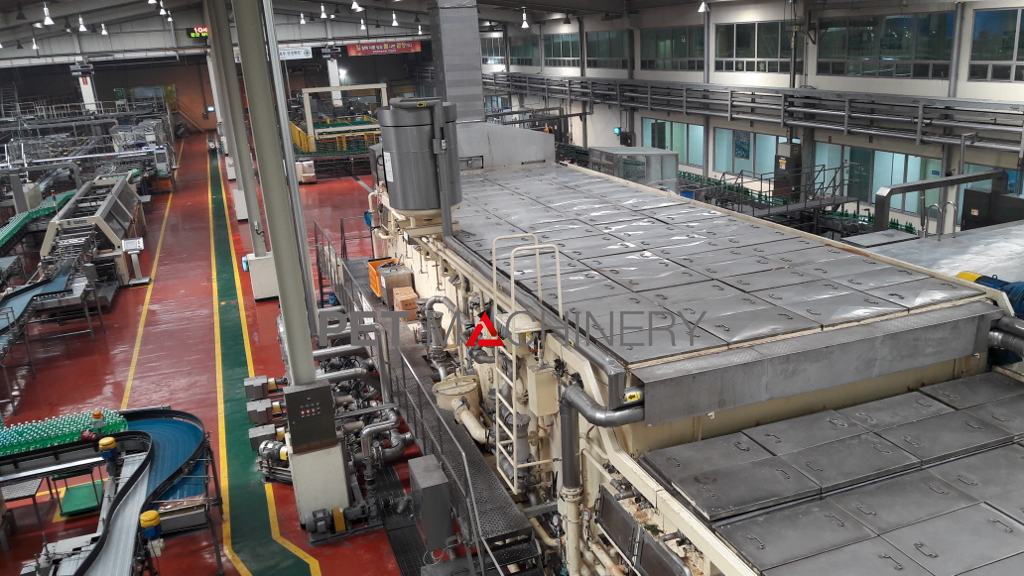

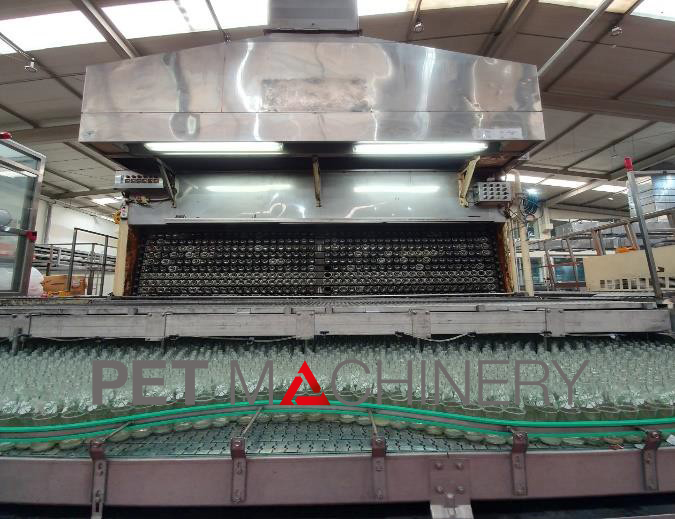

Doosan (Korea) DJB 744 SP85 Bottle washer (2000)
Output capacity: 960 BPM
– TANK ZONE & ROTATING
Krones MULTITRONIC M2 K-750-085 Empty bottle inspector (2004)
Output capacity: 1,000 BPM
Krones FILLER TK 3600(K129-B78-50) Filler & Crowner (2013)
Output capacity: 1,000 BPM
– 130 Filling valves, 26 capping heads
– Vent tube
KHS INNOPRO CMX 25/T 35-5 PARAMIX (2000)
Output capacity: 25,000 L/HR
Krones KONTIPAC E1(K-R64-187) Packer (2012)
Output capacity: 50 cycles/min
– 7 Gripper heads
Shinil (Korea) SIP-600 Crate stacker (2000)
Output capacity: 2,040 C/S
– Two column type gripping system
Samyeon (Korea) 3EA TANK ZONE-Z TYPE Crate washer (2000)
Output capacity: 50 CRATE/min
– 3 TANK ZONE HIGH PRESSURE V-JET NOZZLE SPRAY
KHS INNOPAL (PB 1-2(N)H1 Palletizer (2006)
Output capacity: 50 CRATE/min
– ACCUM SLIDER STACK TYPE
Daesung (Korea) Pallet conveyor (2000)
– R,S 2080 CHAIN FEEDING TYPE

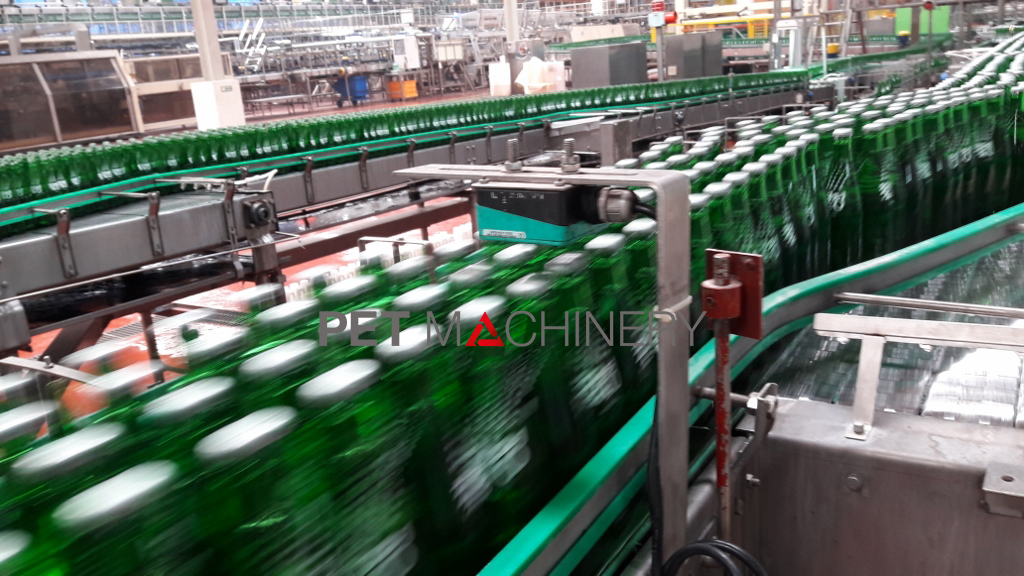

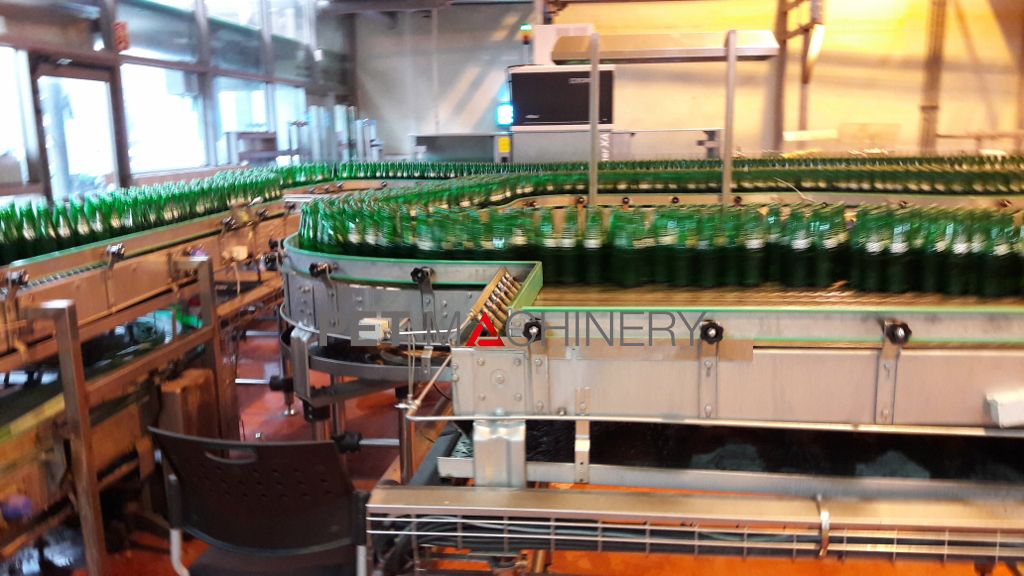

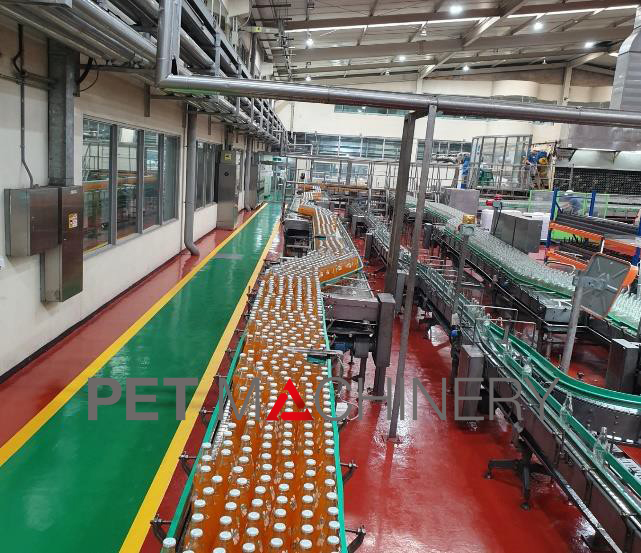

Daesung (Korea) Bottle conveyor (2000)
Output capacity: 1,200 BPM
– T,T CHAIN

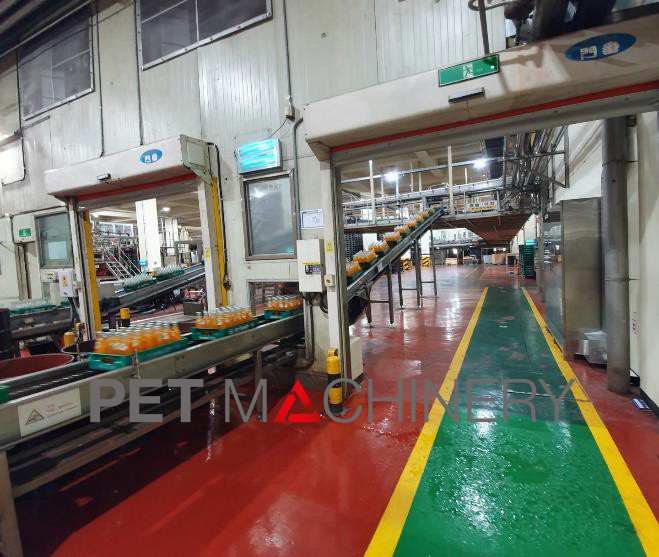

Daesung (Korea) Case conveyor (2000)
Output capacity: 50 CPM
– R,S 80 CHAIN & ROLLER BOTH FEEDING TYPE
Shinil (Korea) Shinwon System Crowner feed conveyor (2002)
Output capacity: 1,200 BPM
– ENDLESS BELT TYPE(16.5M)
Woosung (Korea) Bottle feed (2016)
Output capacity: 100 BPM
– CRUSHER LINK CONVEYOR TYPE
FINE (Korea) FAC-5500 Weight checker (2013)
Output capacity: 180 crates/min
– REJECT TYPE
Videojet SY VJ-1610 Crown printer (2011)
– 5*7 TL 80meter s/min
Heuft Examiner XA X-RAY Inspector (2011)
Output capacity: 1000 BPM
Videojet SY VJ-1610 bottle neck printer (2015)
5*7 TL 80meter s/min
Videojet SY VJ-1610 Printer (2017)
5*7 TL 80meter s/min
Krones K-731-U30 Level Checker (2013)
Output capacity: 1000 BPM
The line has been disconnected and packed, and is immediately available.
If you’d like to know more about the Complete Glass Bottling line for Carbonated Soft Drinks just fill in your details below and we’ll be in touch with you very soon.
