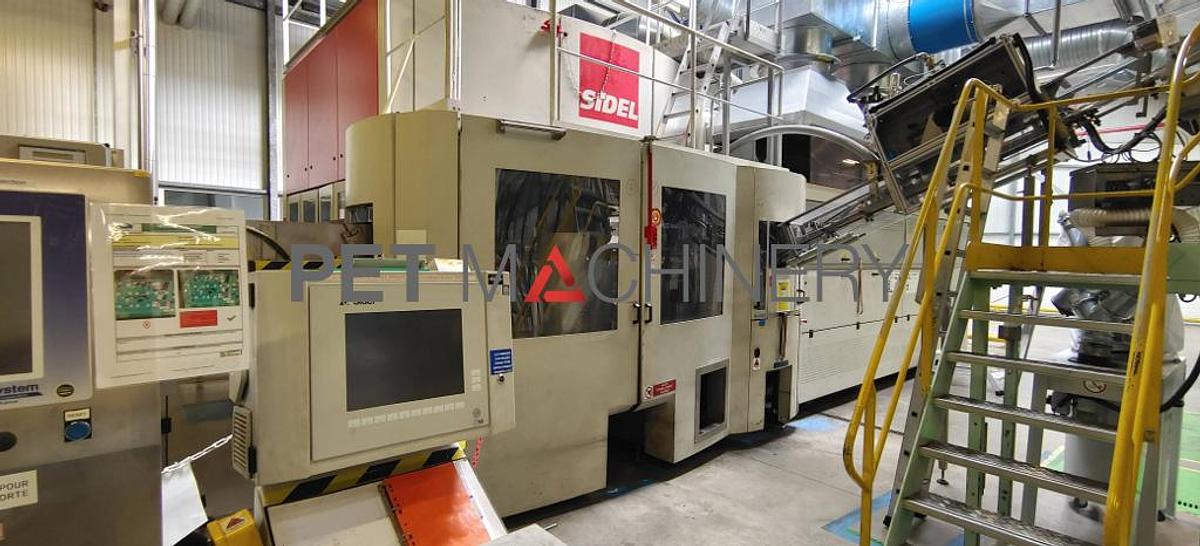

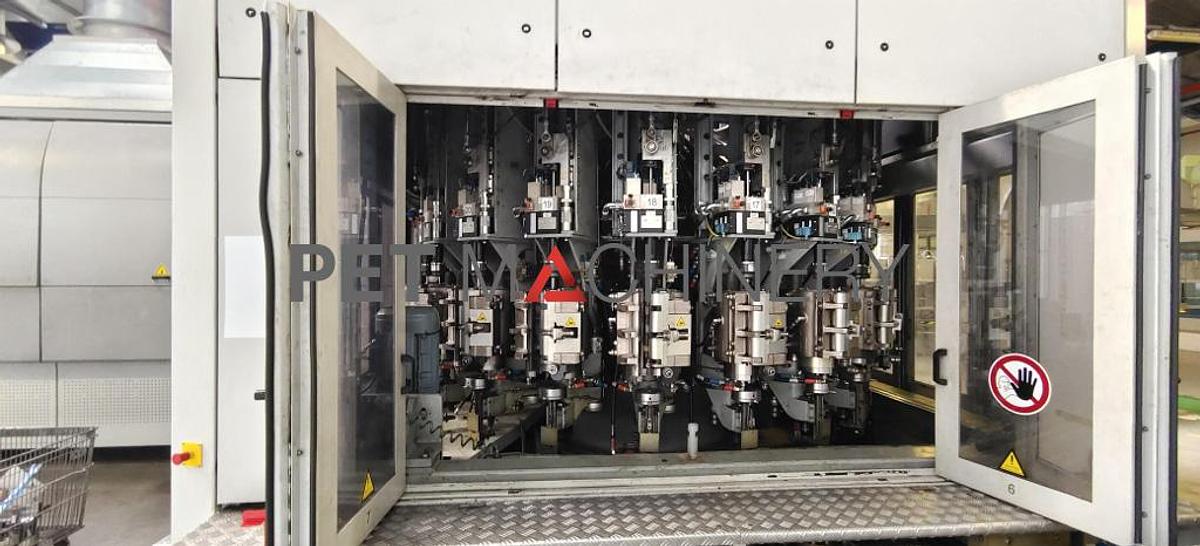

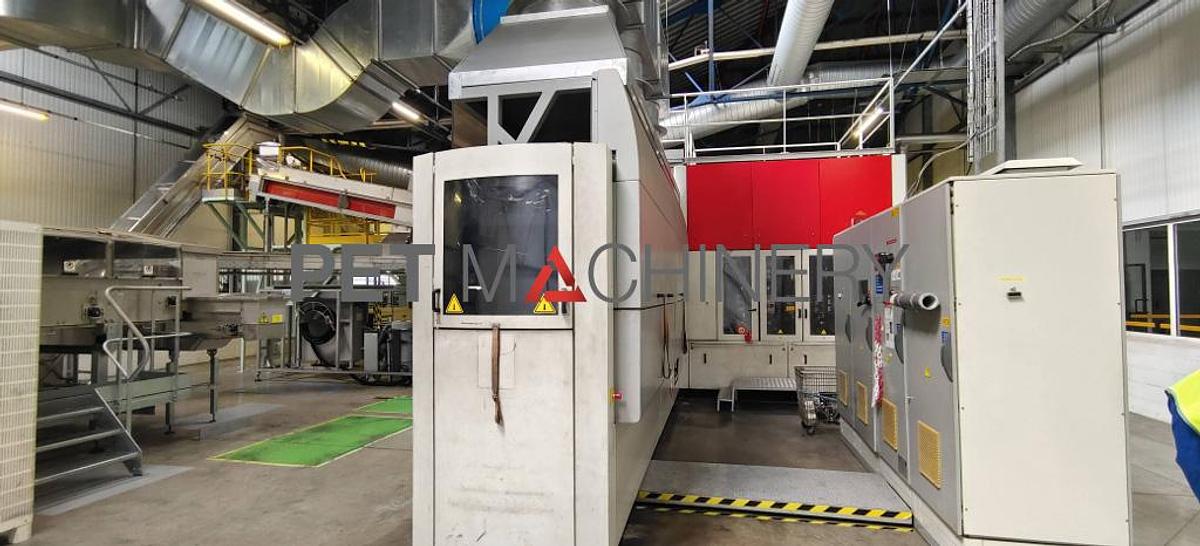

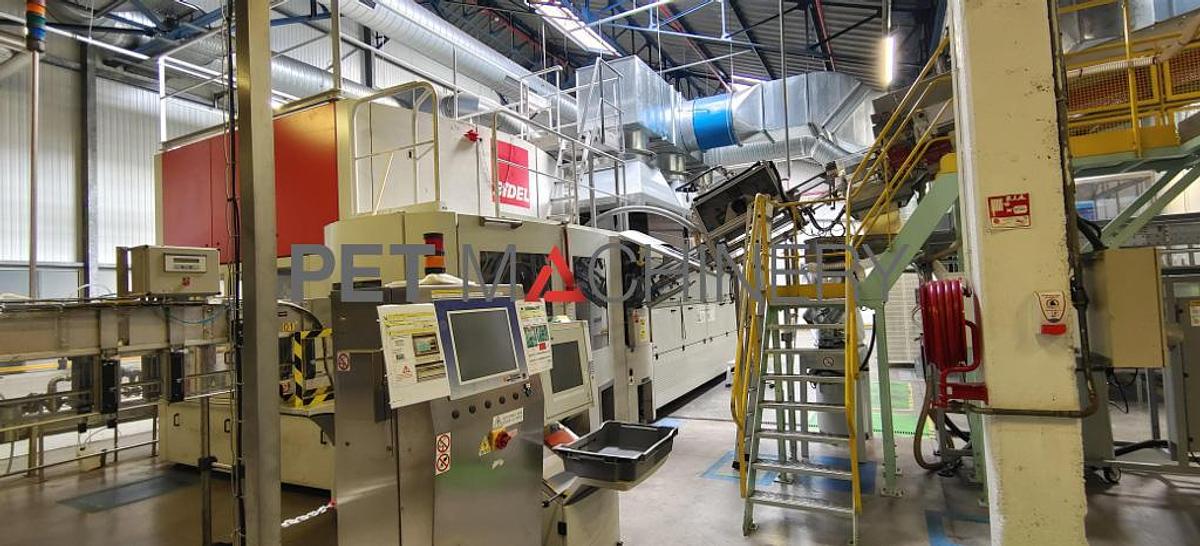

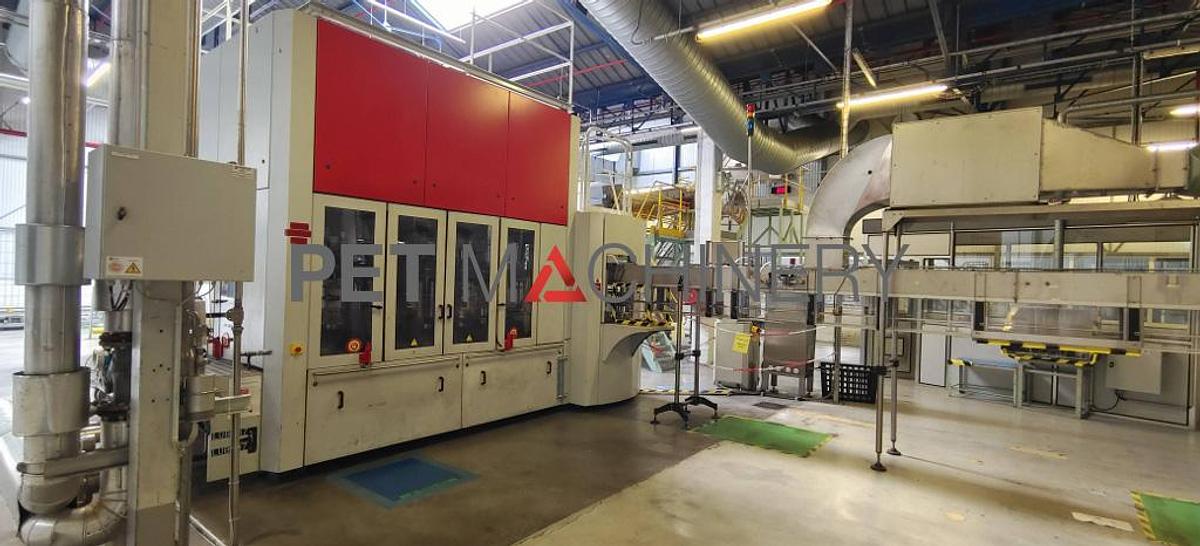

2002 Sidel SBO 20 series 2 PET Stretch Blow Moulding machine

Sidel SBO 20 series 2 PET Stretch Blow Moulding machine, year 2002 - upgraded by Sidel in 2012.

Current capacity: 1,570 bpm/h; 30,000 bph @ 1.5L bottle

Max. output capacity: 31,400 bph

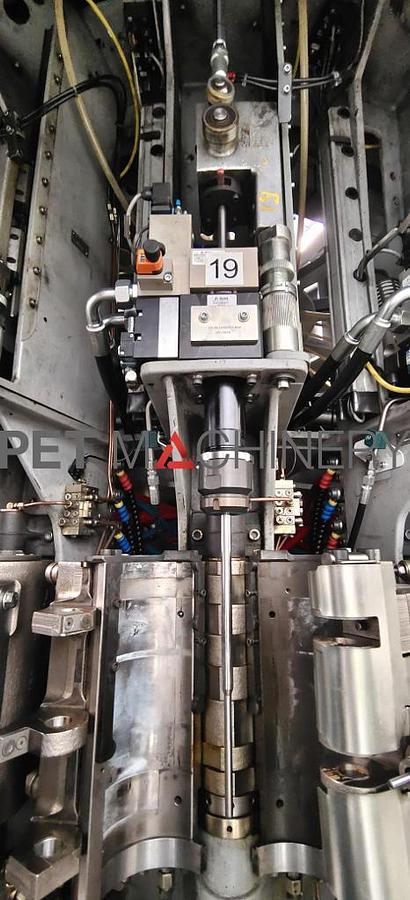

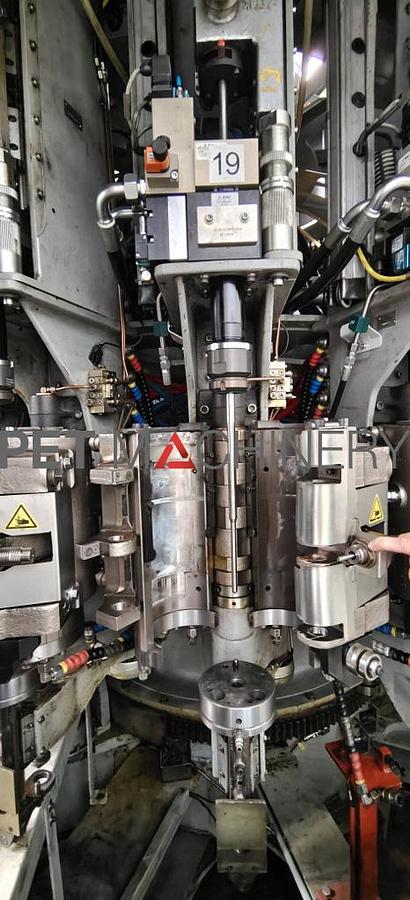

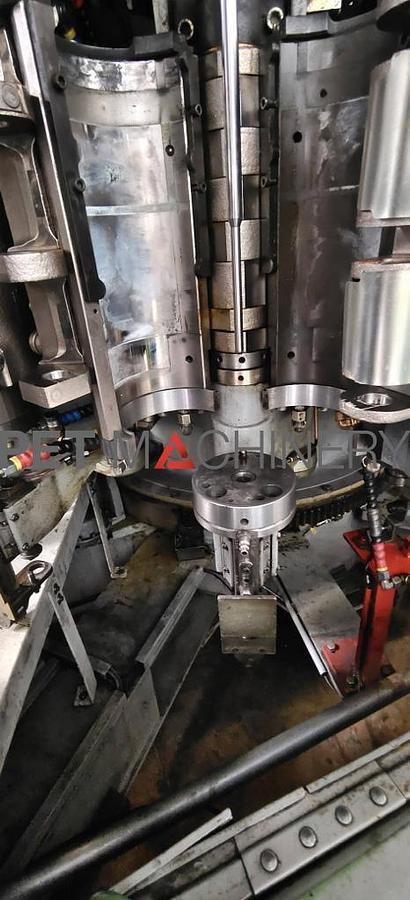

Mould type: GUPM standard quick change

Neck personalisation: 29/25

Upgrades performed by Sidel & current owner:

- Preform box tipper for 2 pallets at once.

- Preform infeed covered & airtight.

- No-loss device to return misaligned preforms in the cycle.

- Preform control device similar to Pressco

- Output capacity increased to 1,570 bpm/hour per cavity.

- Sidel air recycling system

- Modification HP air requirements to only 24 bar.

- Oven hood in 3 parts for heat recovery & recycling in the plant

- FT system controller (2014) exit Sidel blower to inspect blown bottles

Machine includes:

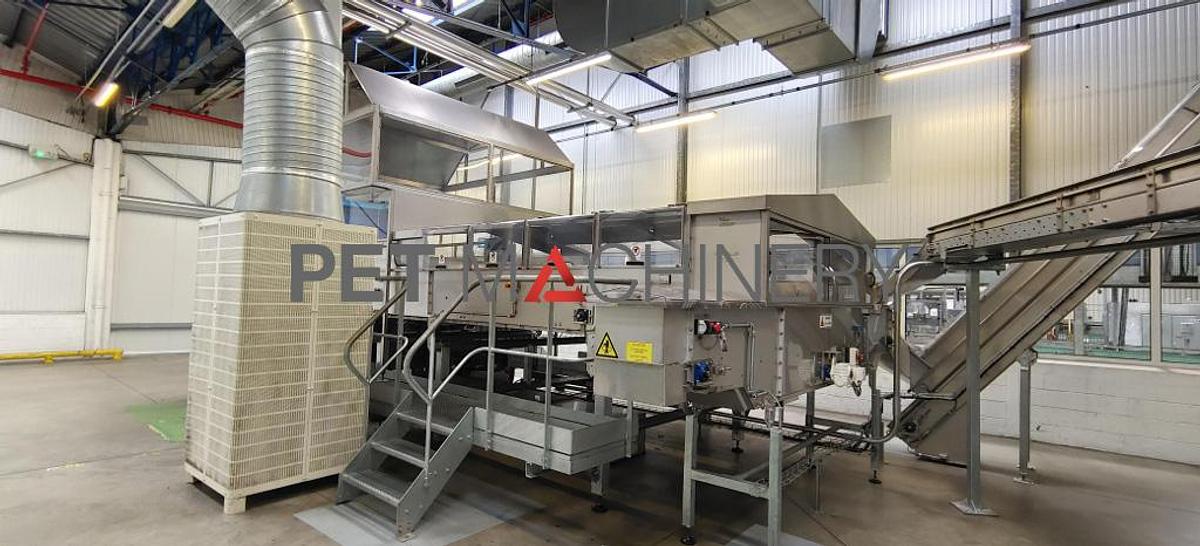

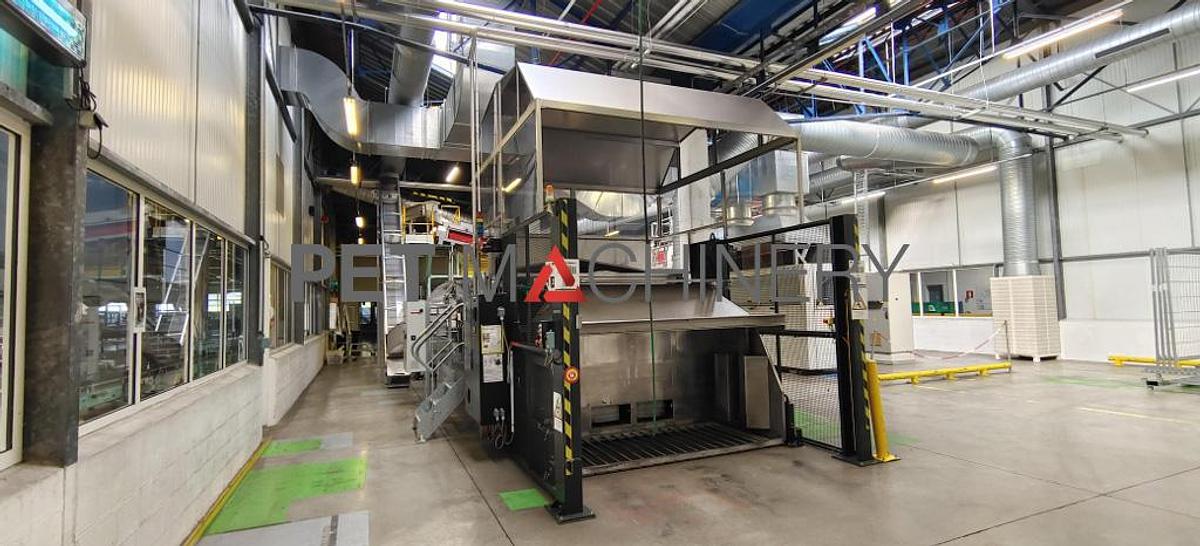

* Preform box tipper for 2 pallets at once

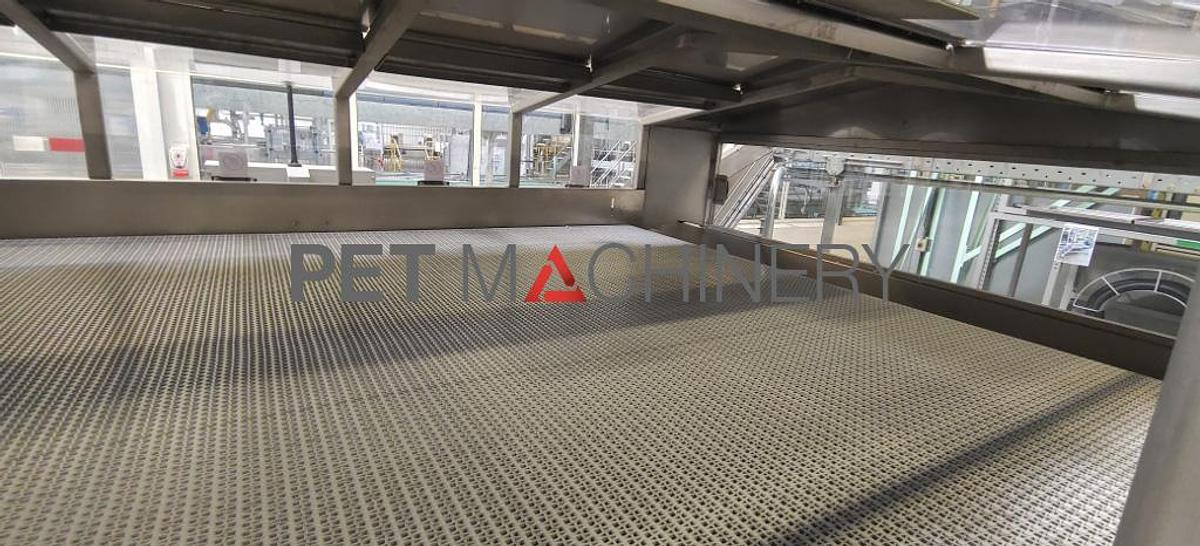

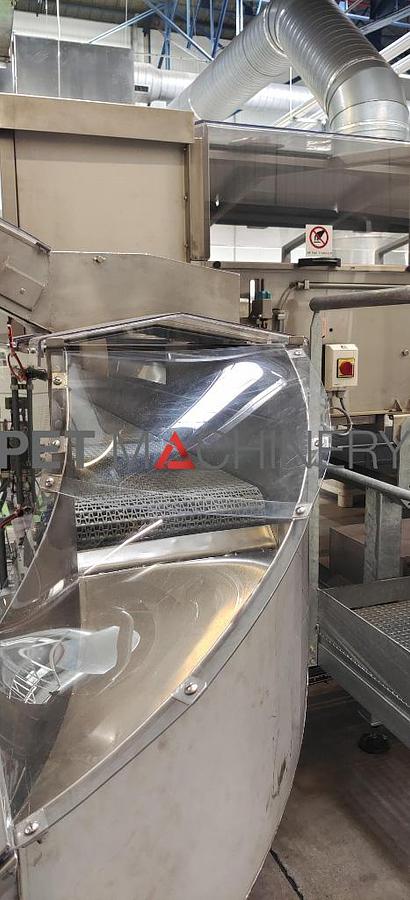

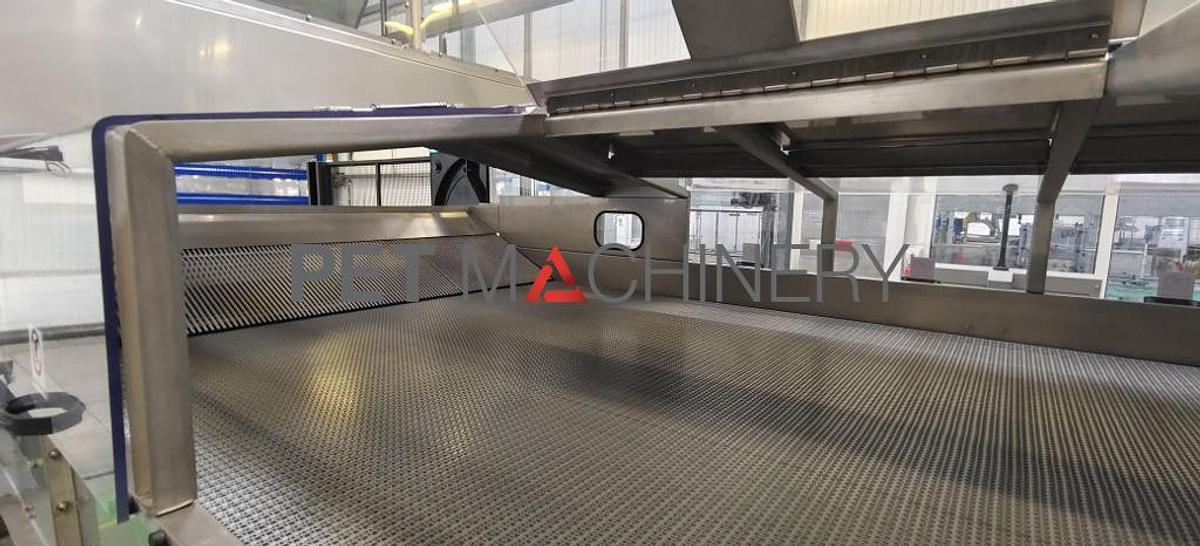

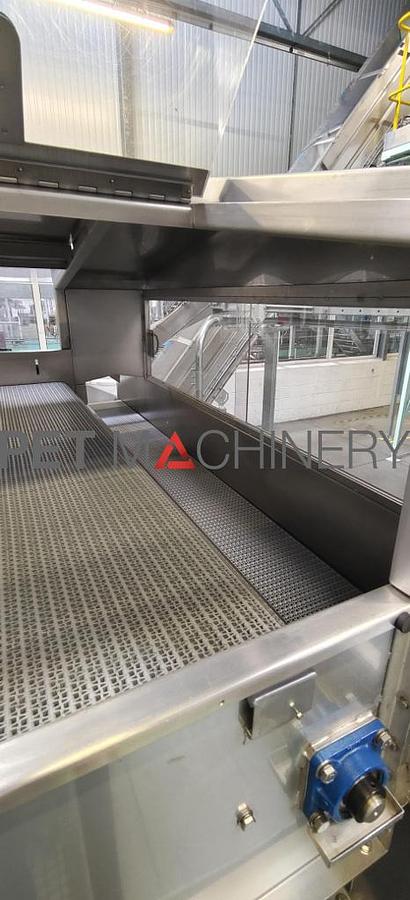

* Preform collection equipment, fully covered and airtight, on a conveyor belt feeding the preform unscrambler, with a device for returning misaligned preforms to the cycle.

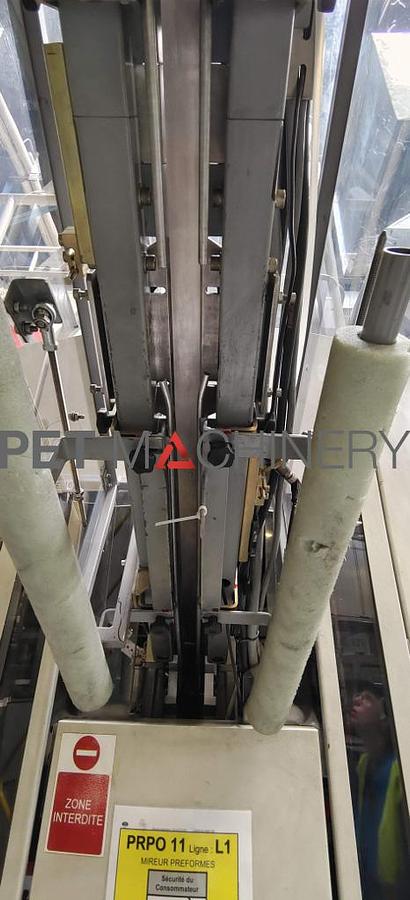

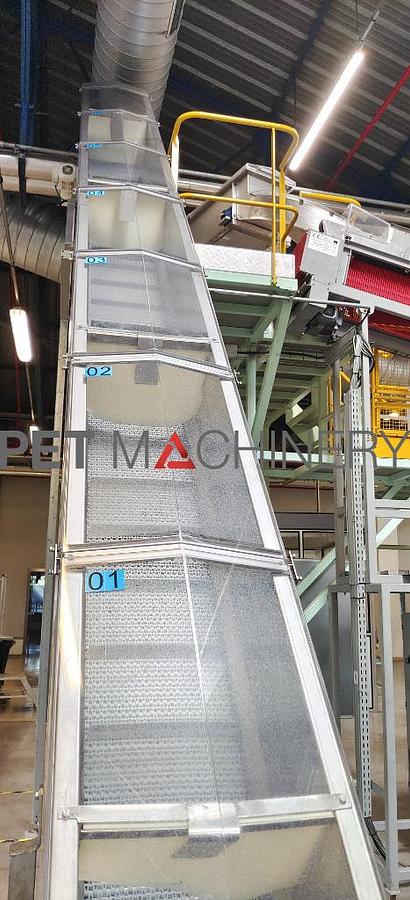

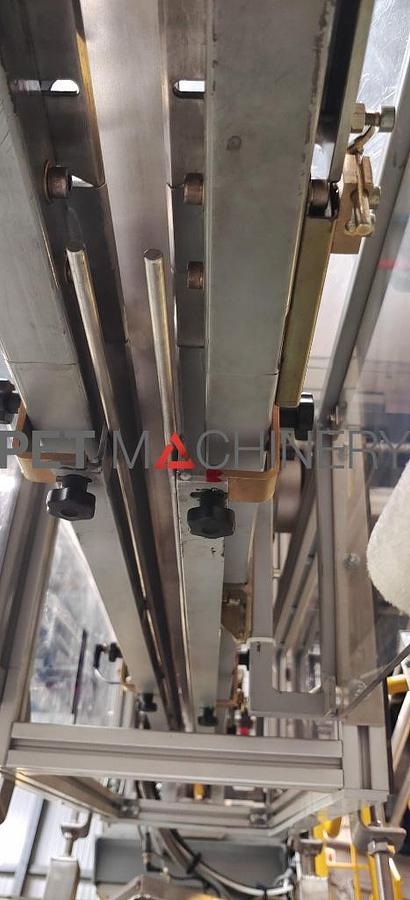

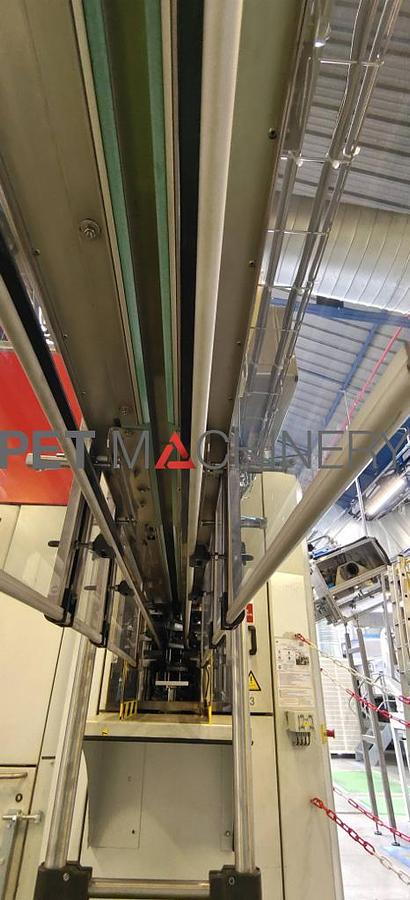

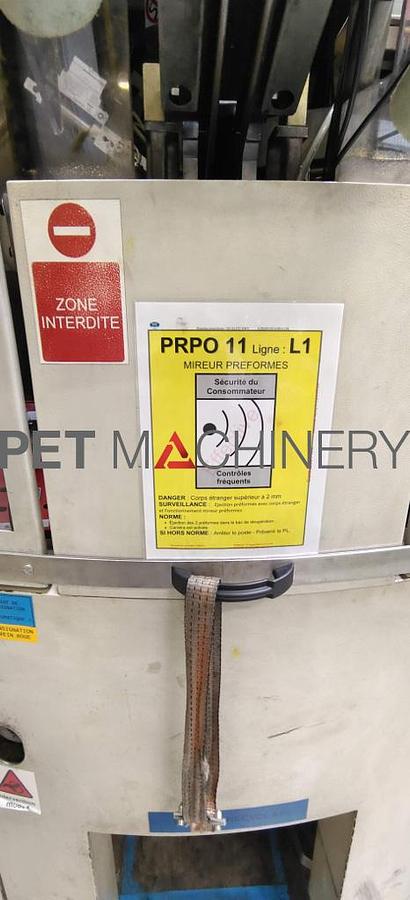

* Preform elevator covered, unscrambler and infeed rail equipped with preform neck control device similar to Pressco but developed by Krones

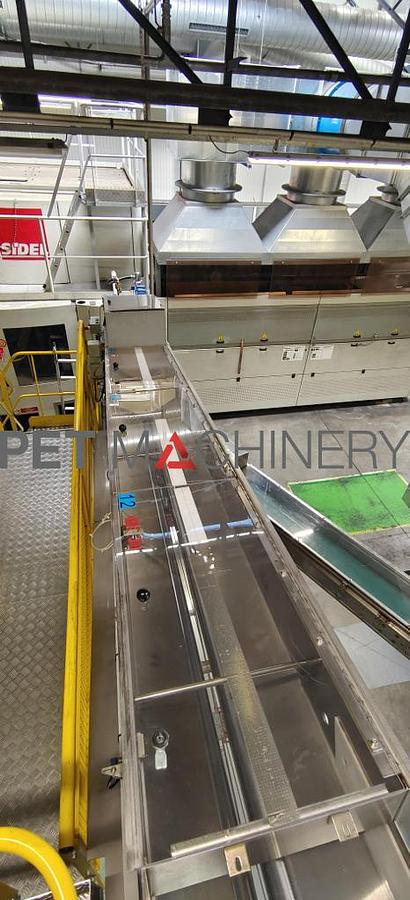

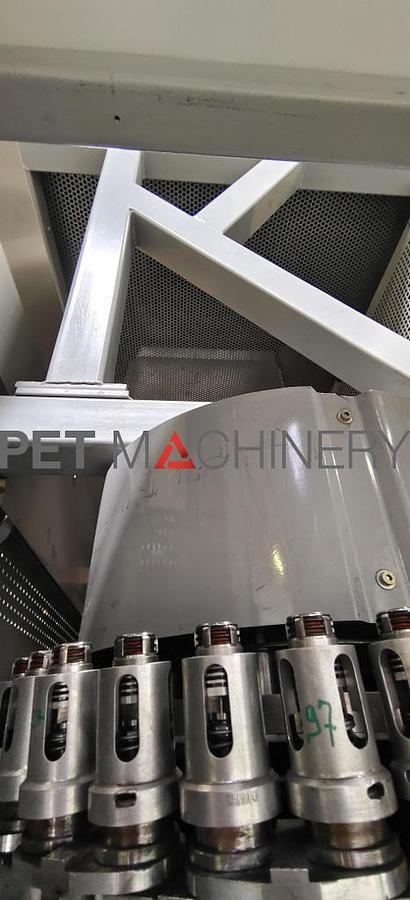

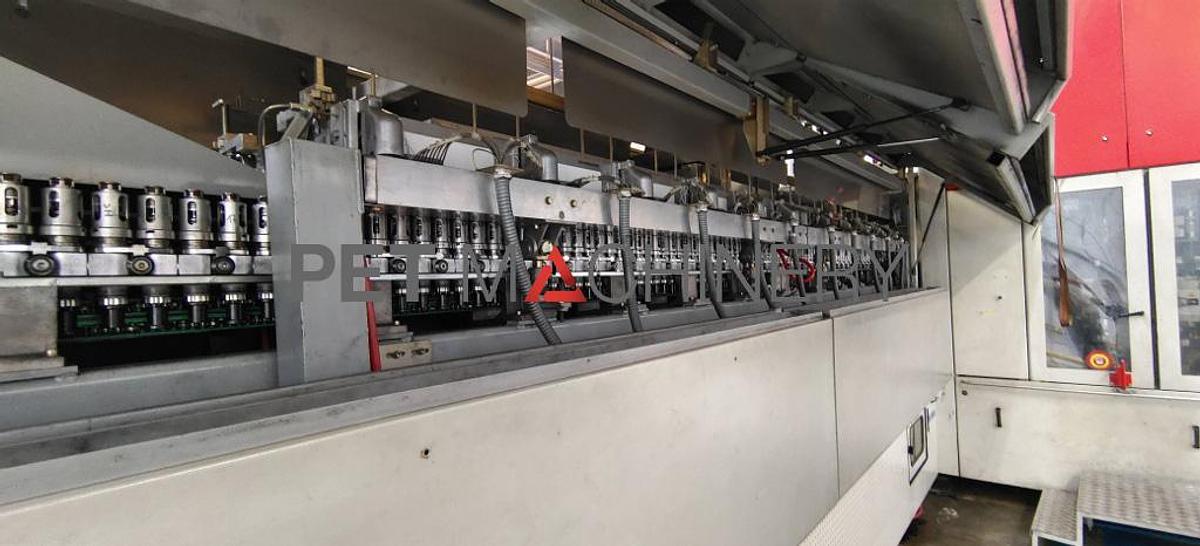

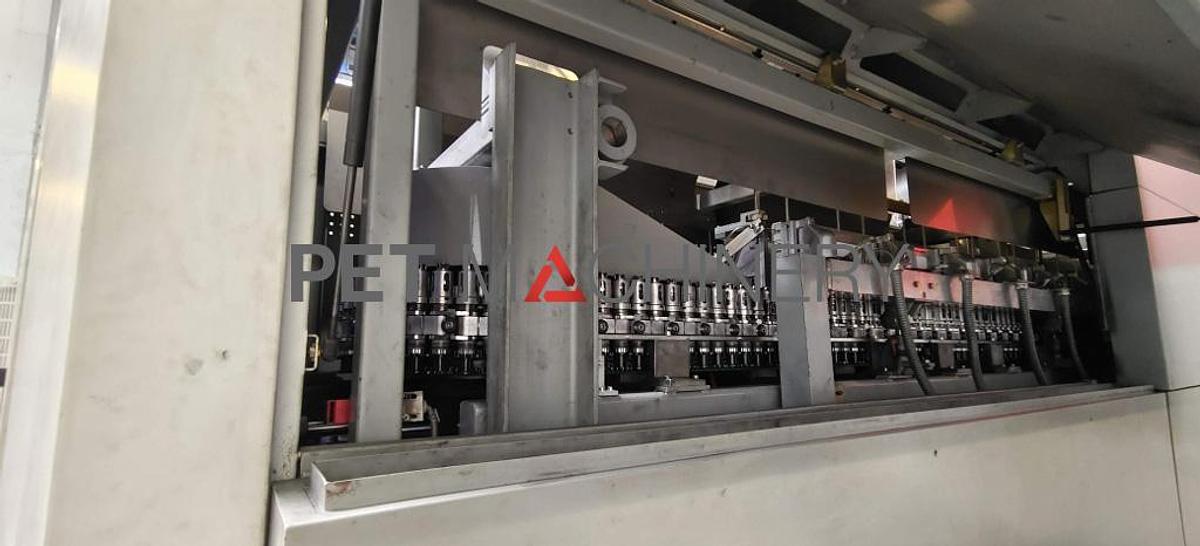

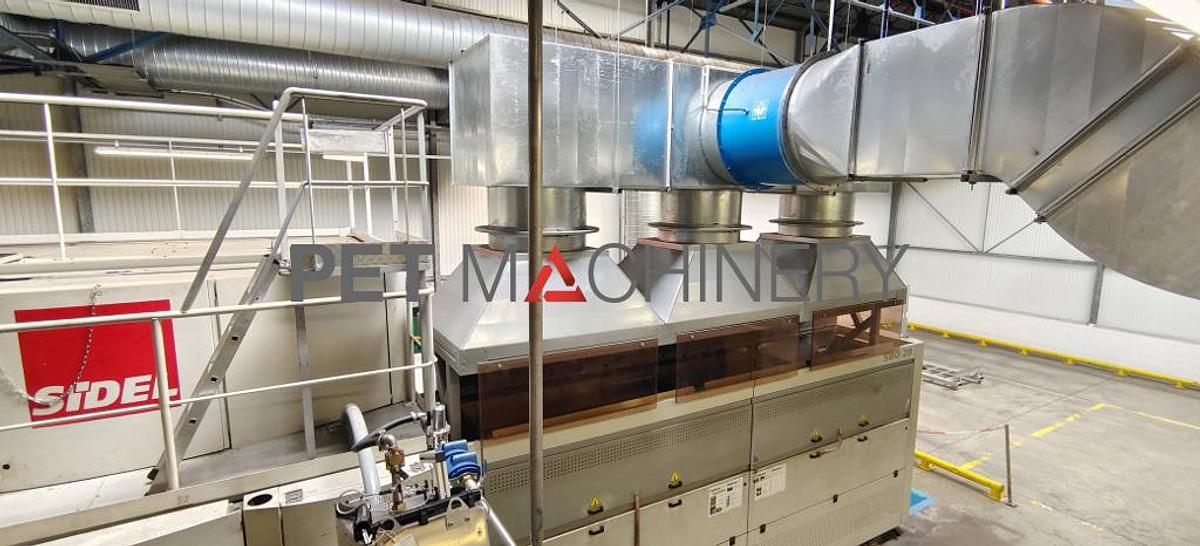

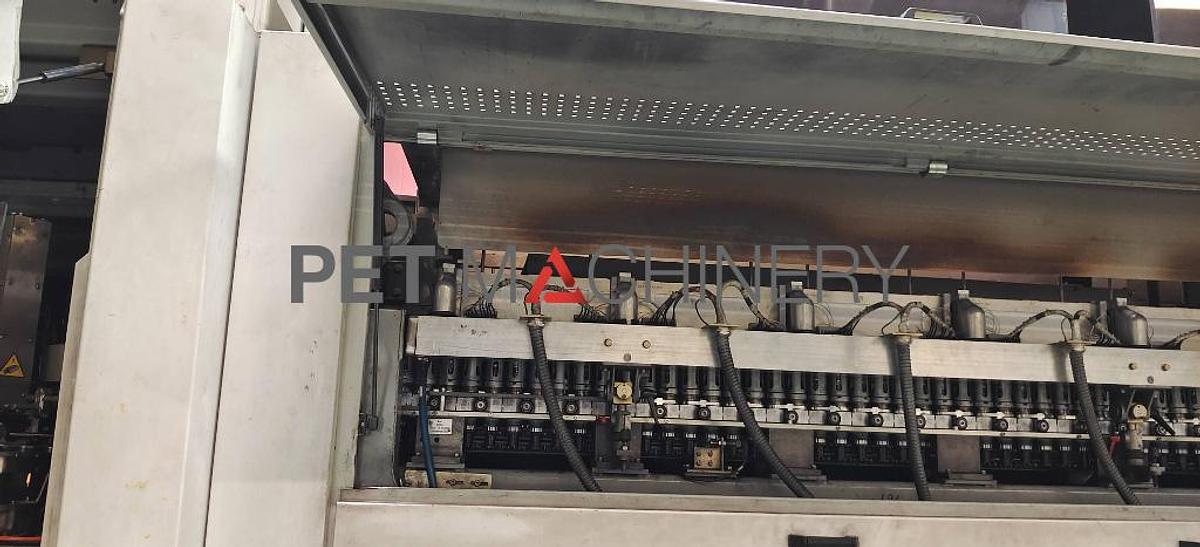

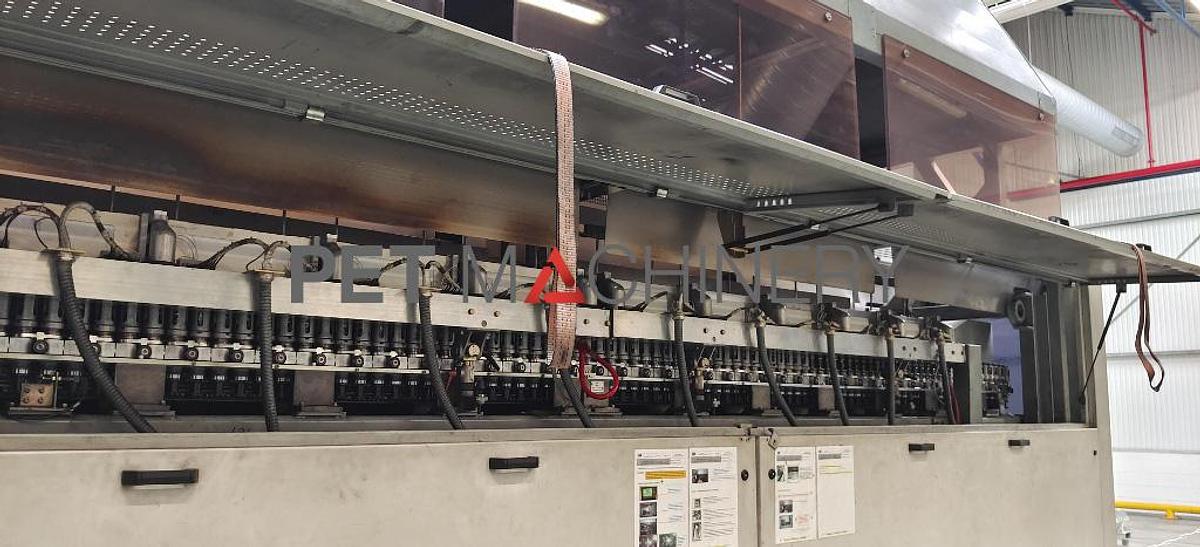

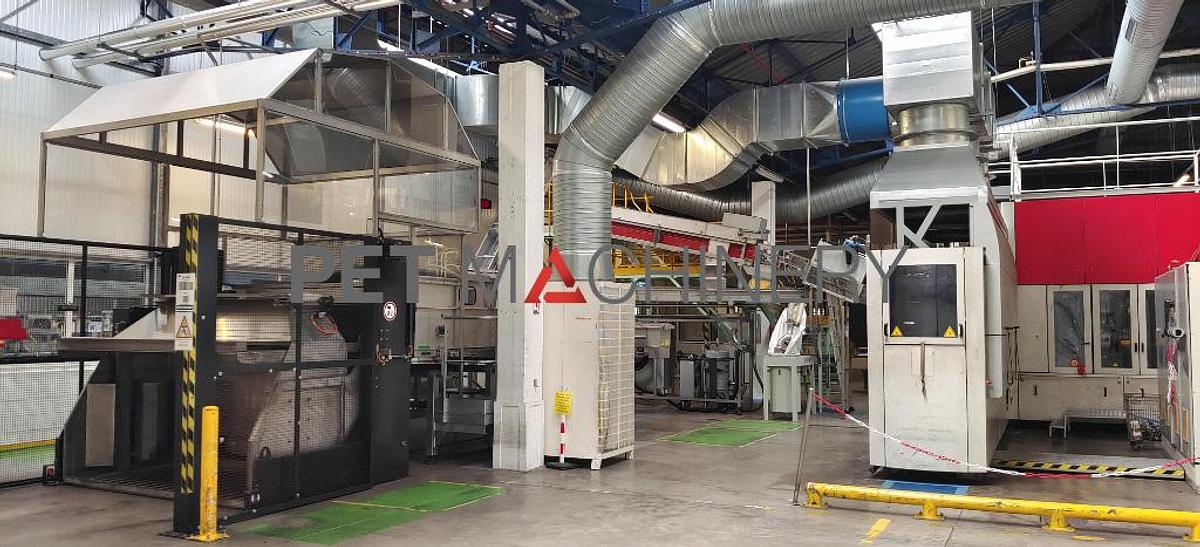

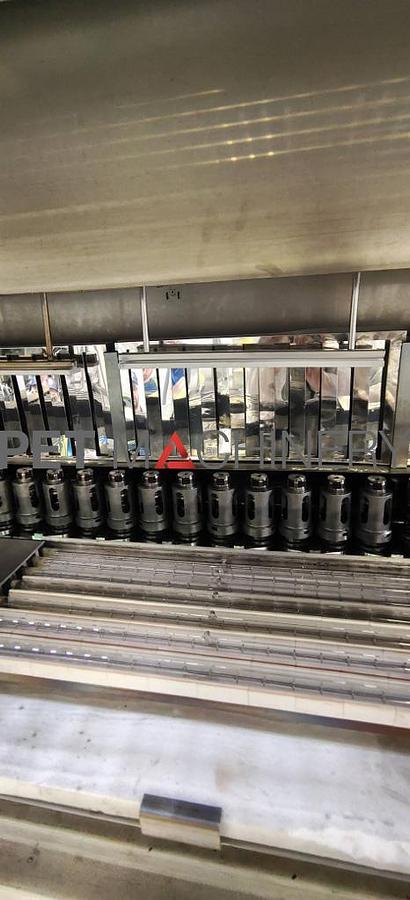

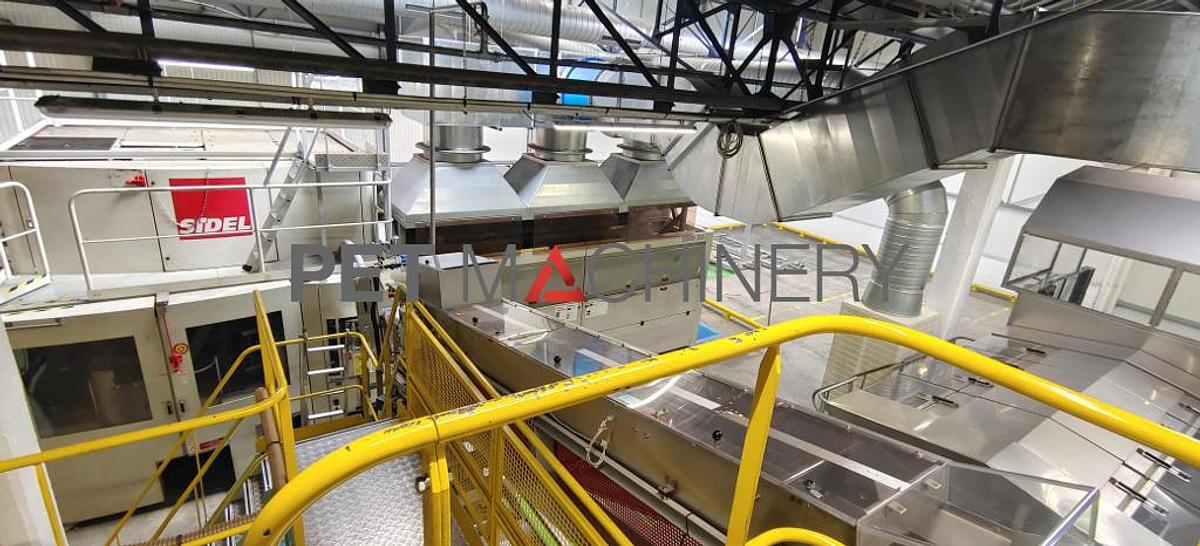

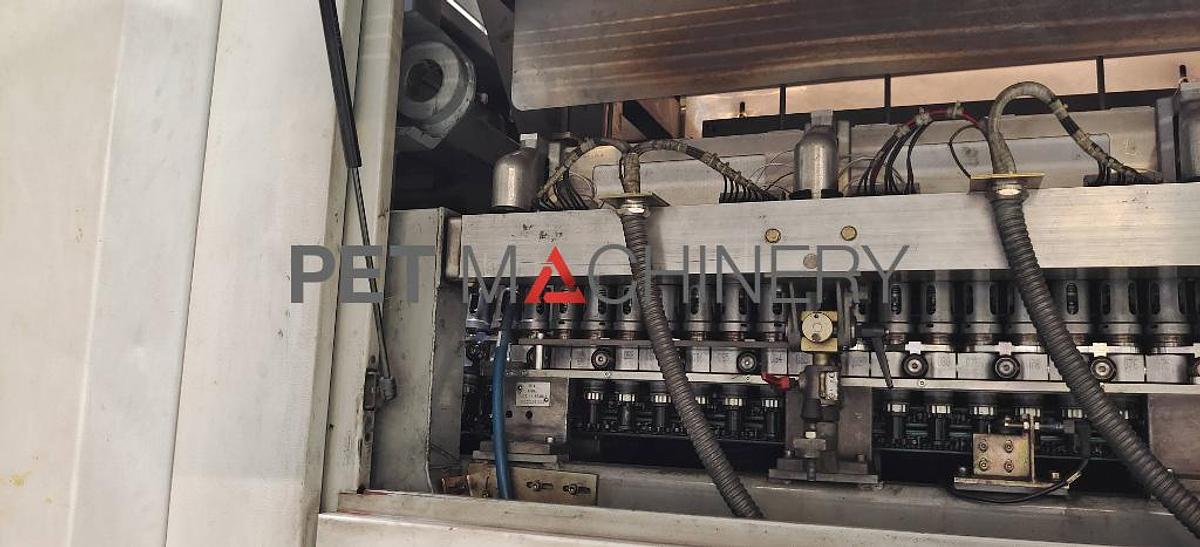

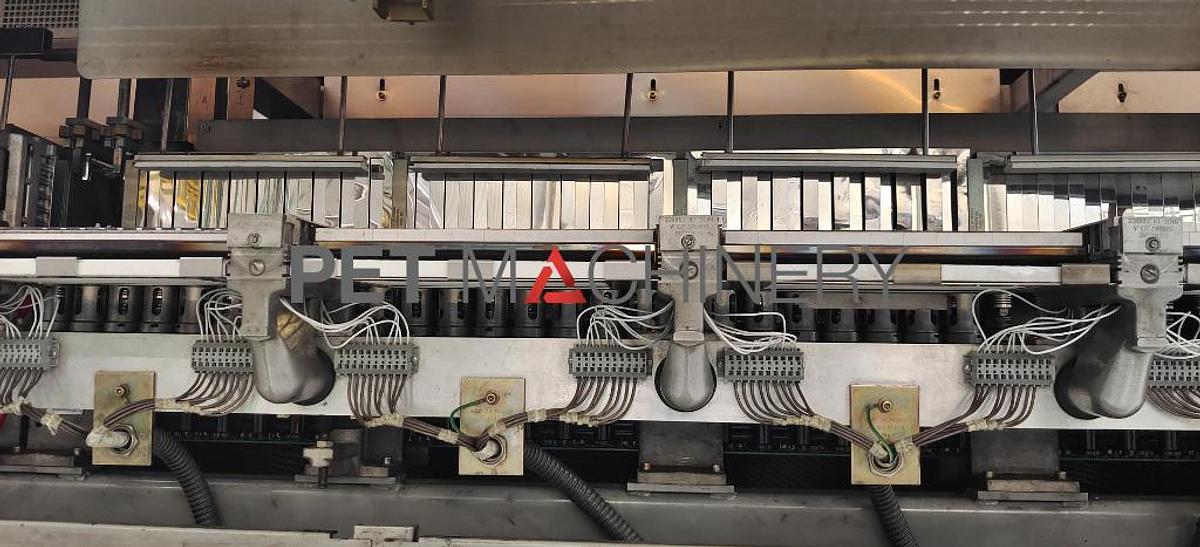

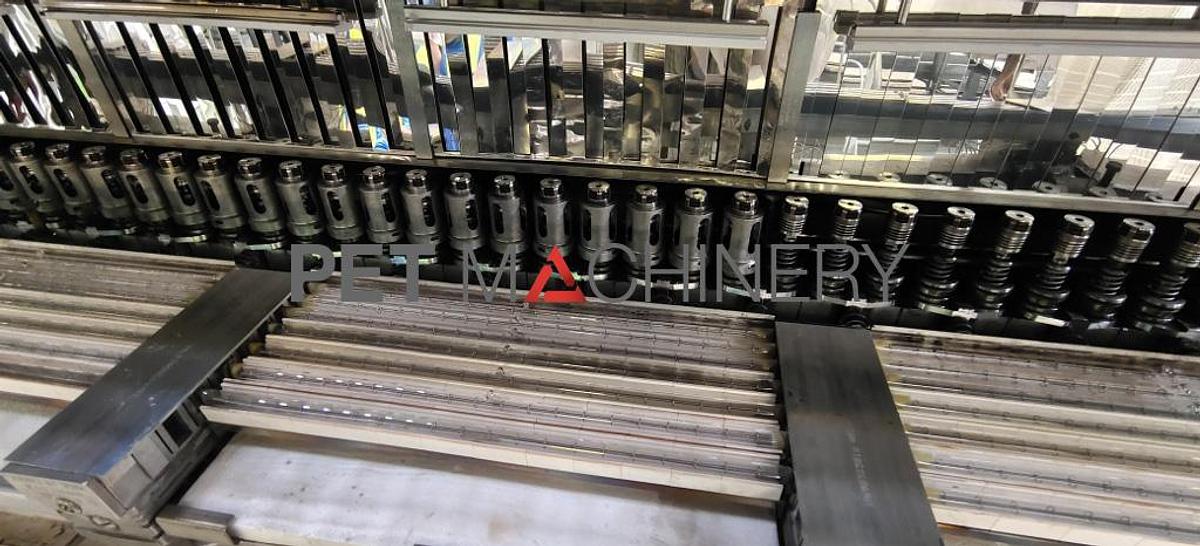

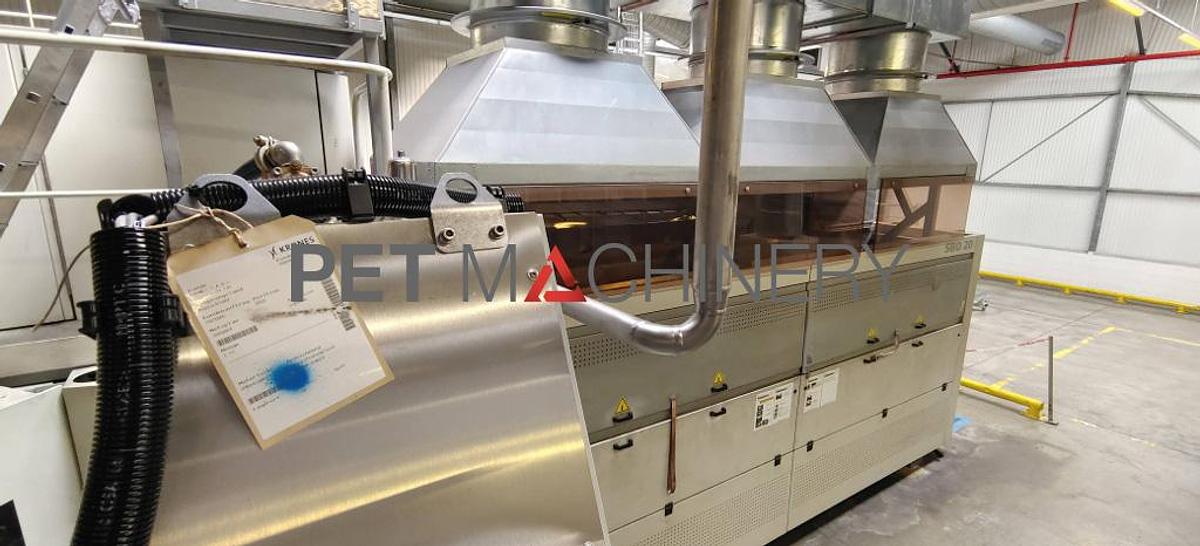

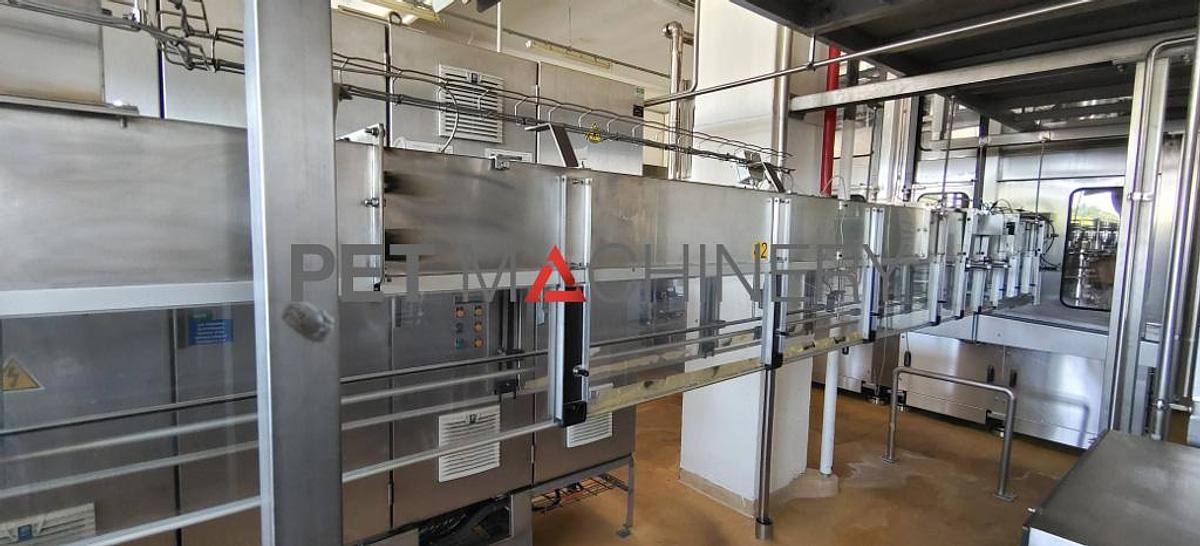

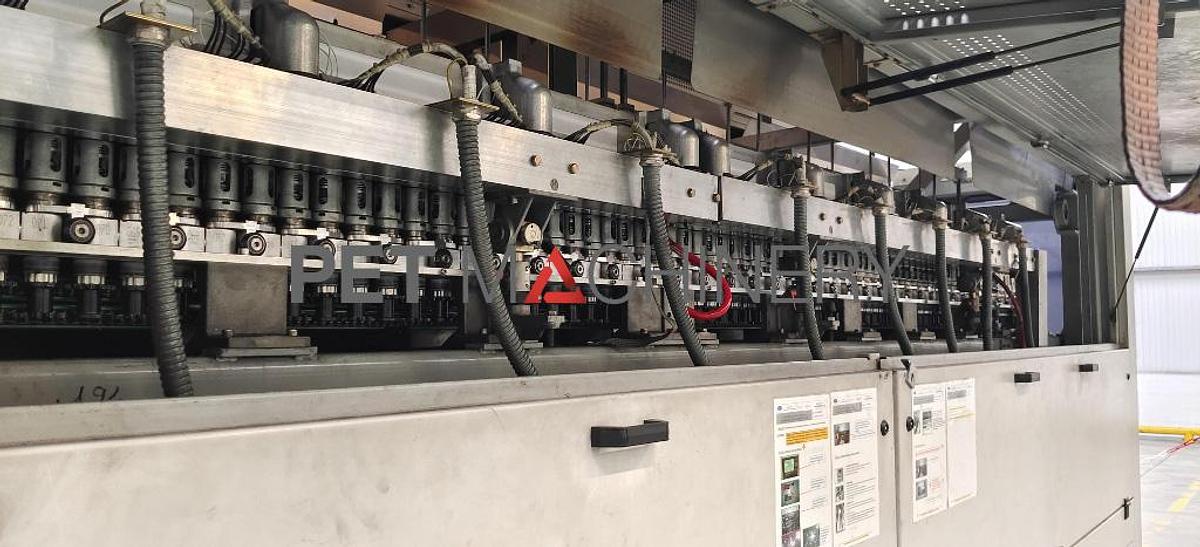

* Oven, equipped with oven hood in 3 parts for heat recovery and recycling

* Sidel air recycling system

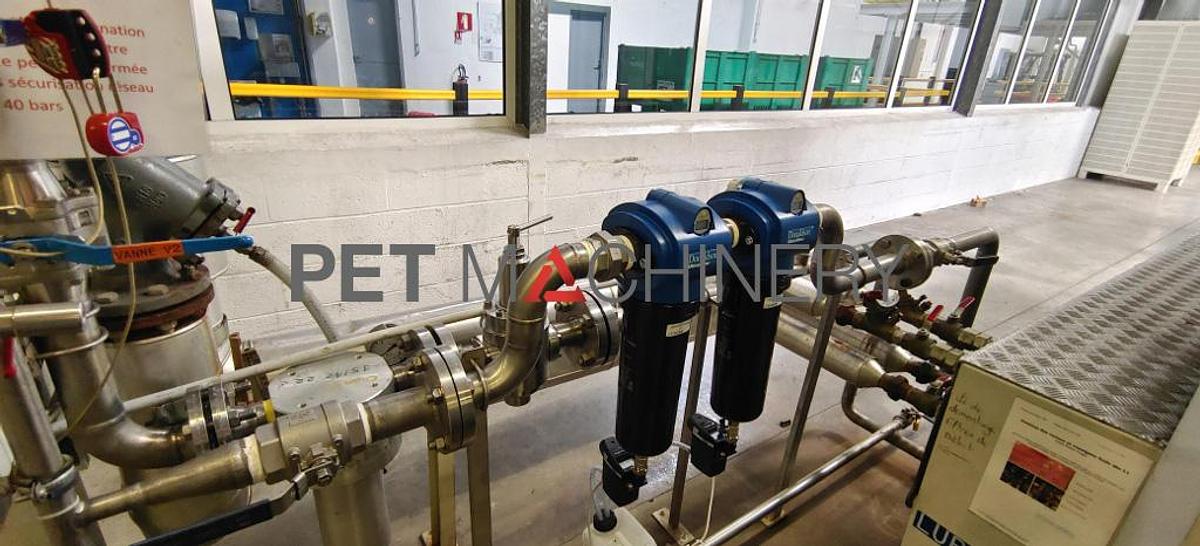

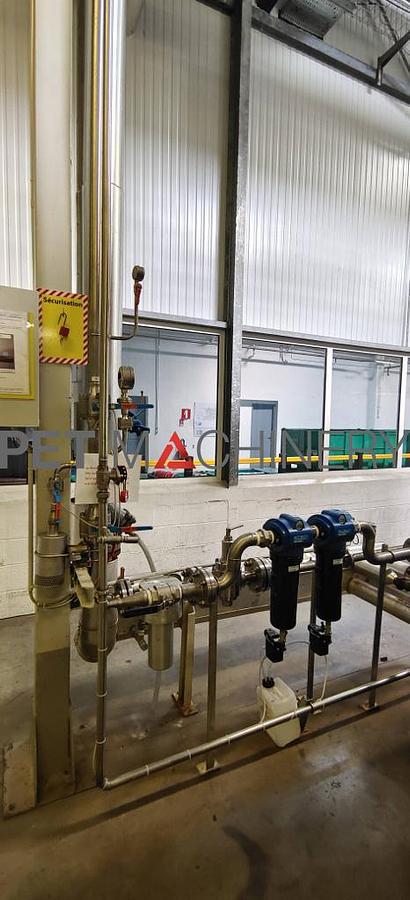

* LP & HP air inlet equipped with filters

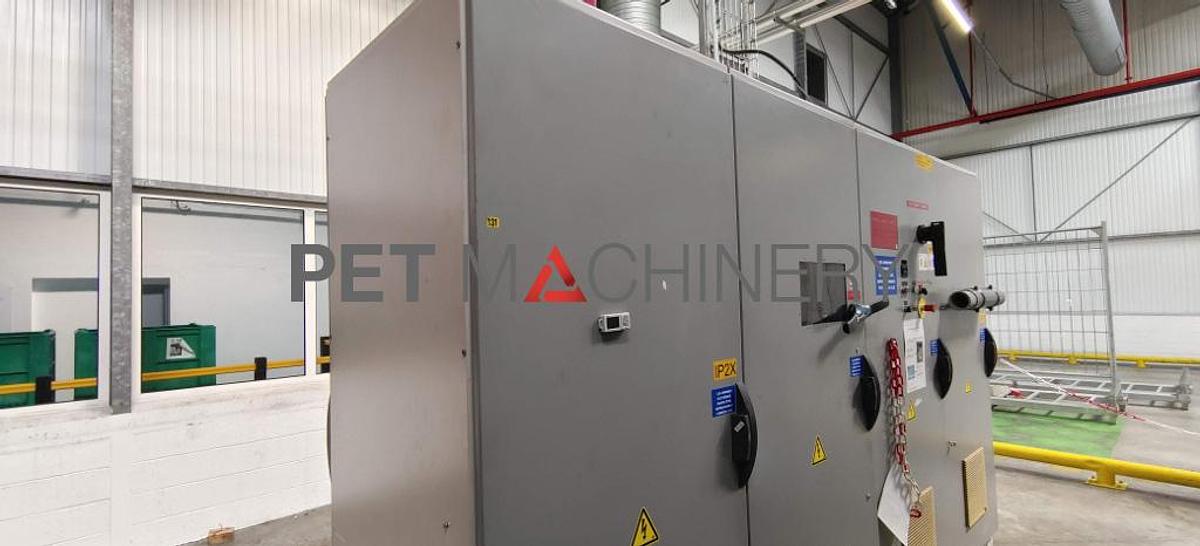

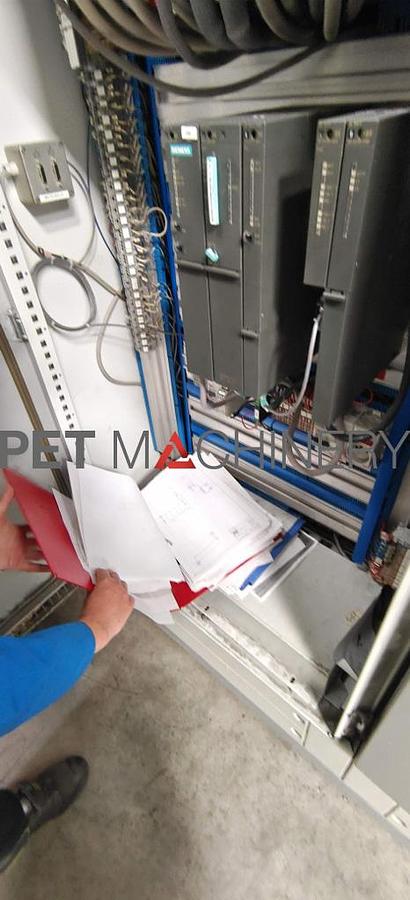

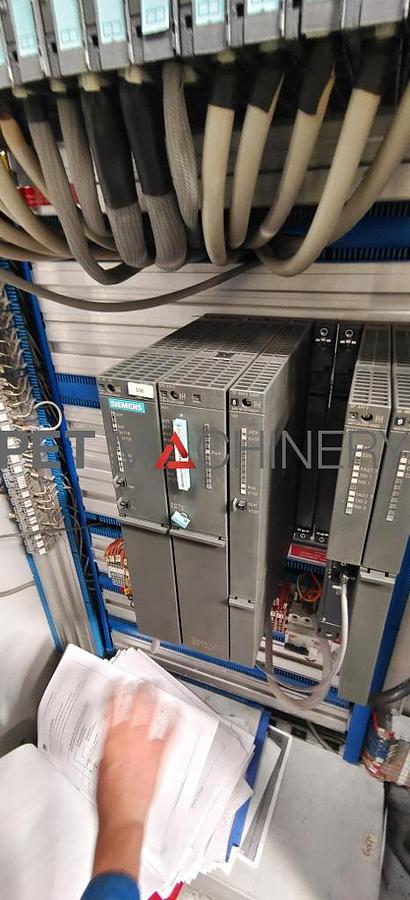

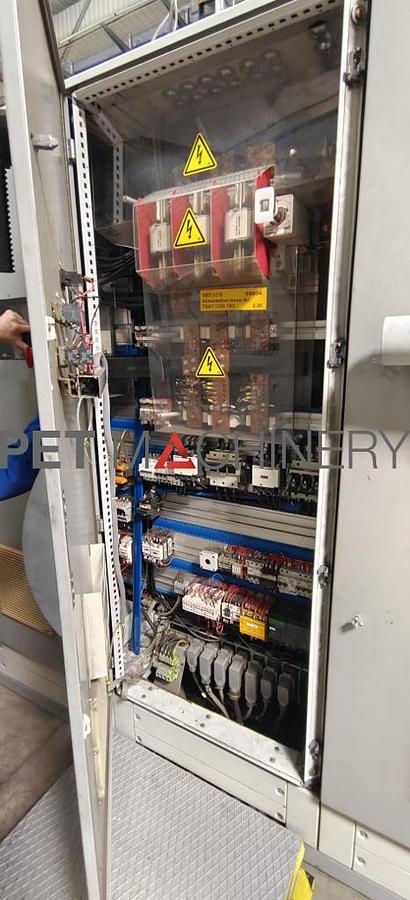

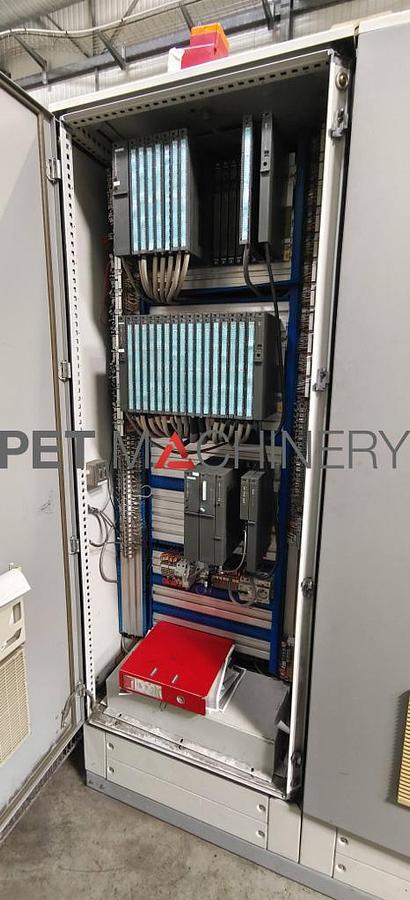

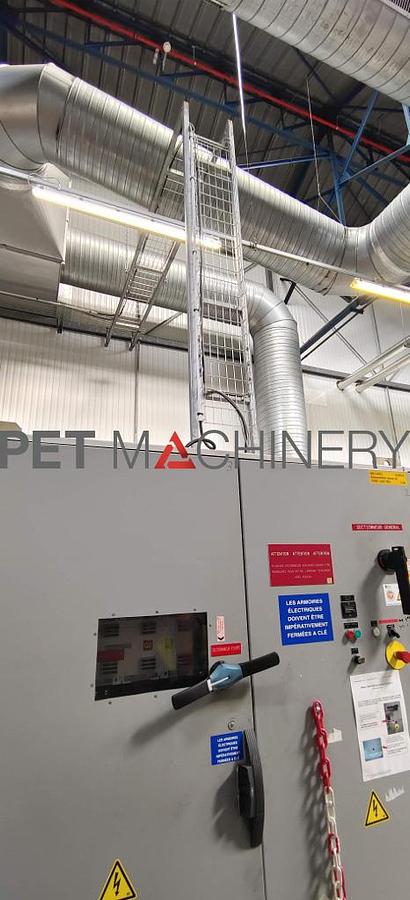

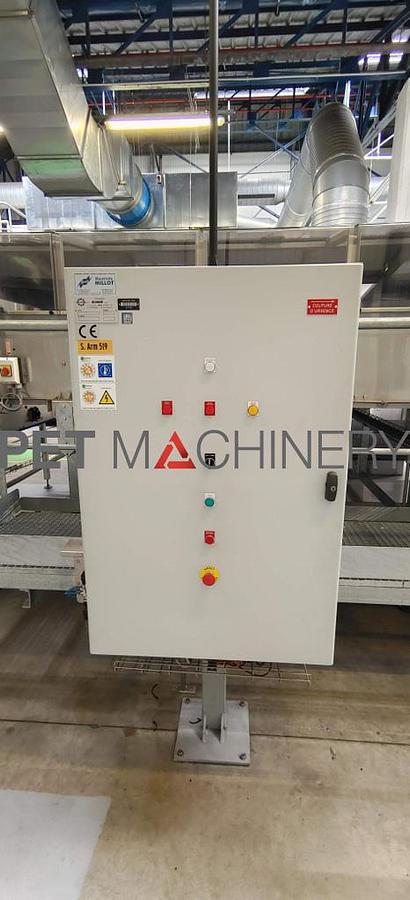

* Electrical panel equipped with Siemens S7

* Sidel PCC machine drive

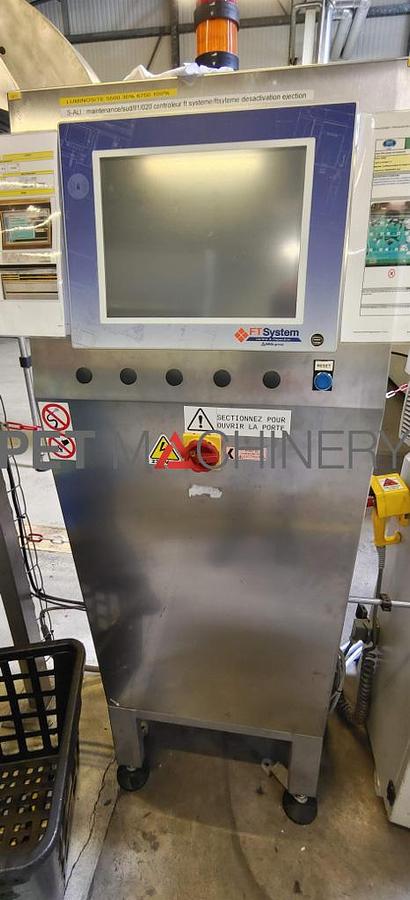

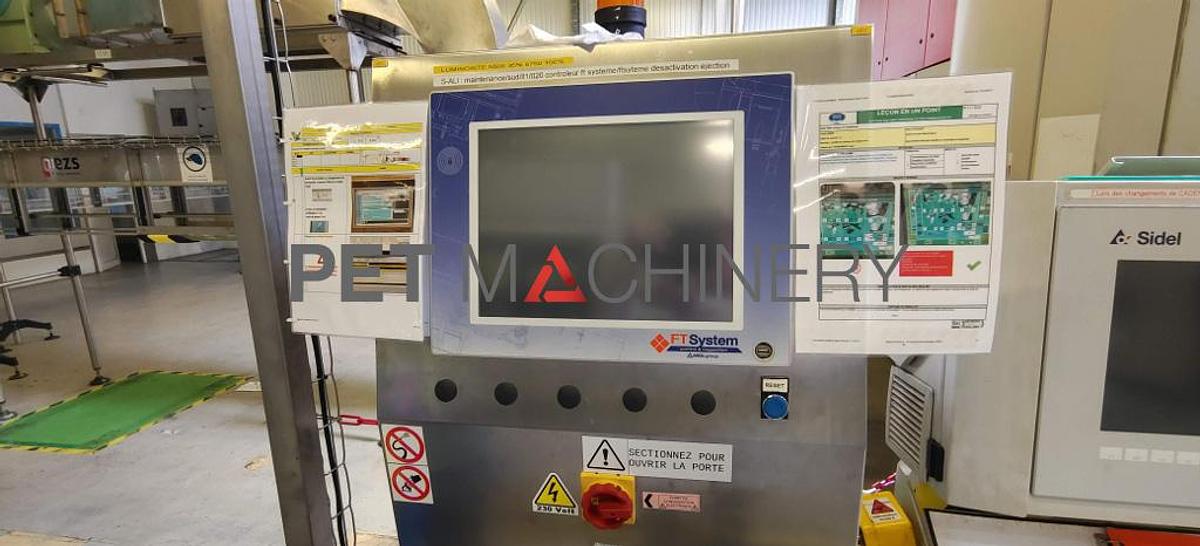

* FT Systems controller (year 2014) to inspect blown bottles

The above machine is currently still installed but no longer in production.

Immediately available.
