Carbonated Soft Drinks PET Bottling line

Line capacity:

– 36,000 bph @ 1.5L water

– 35,000 bph @ 1.5L soft drinks – sweet

– 32,000 bph @ 1.5L soft drinks – light

Status of the line: Dismantled and packed in sea containers + wooden boxes

Used for filling: Water and CSD with 7.5 g of CO2

Cap type: 28 mm, custom design of the factory

Packages: Film only (3×2)

Condition: Very good condition, regularly serviced

The line is composed of:

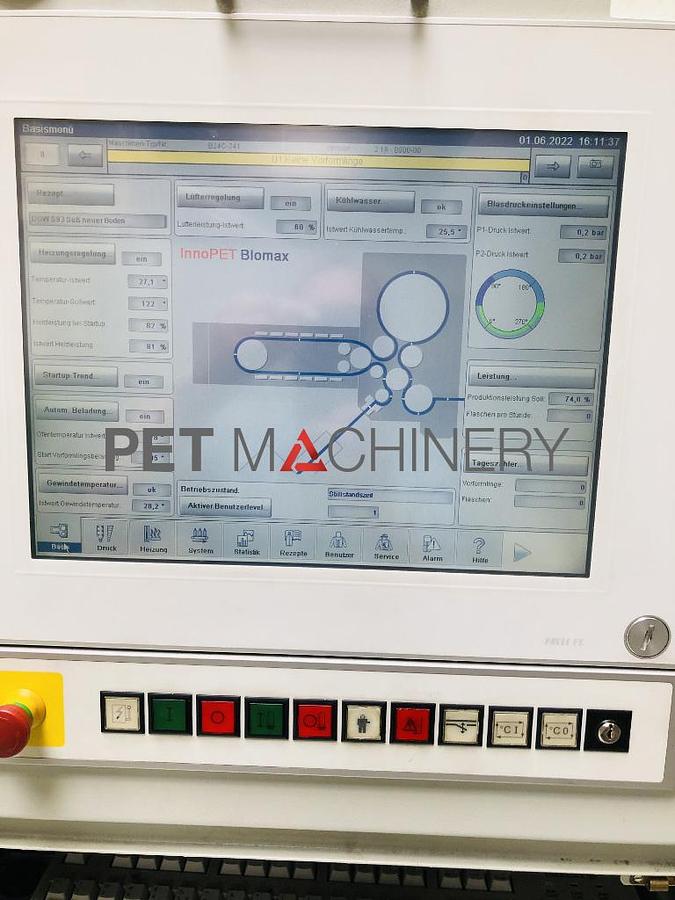

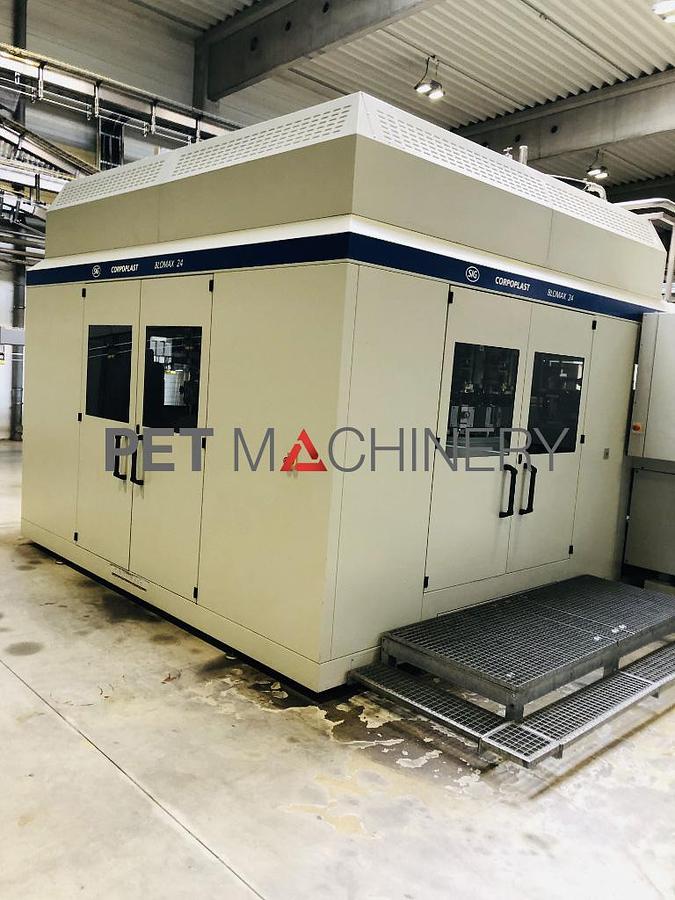

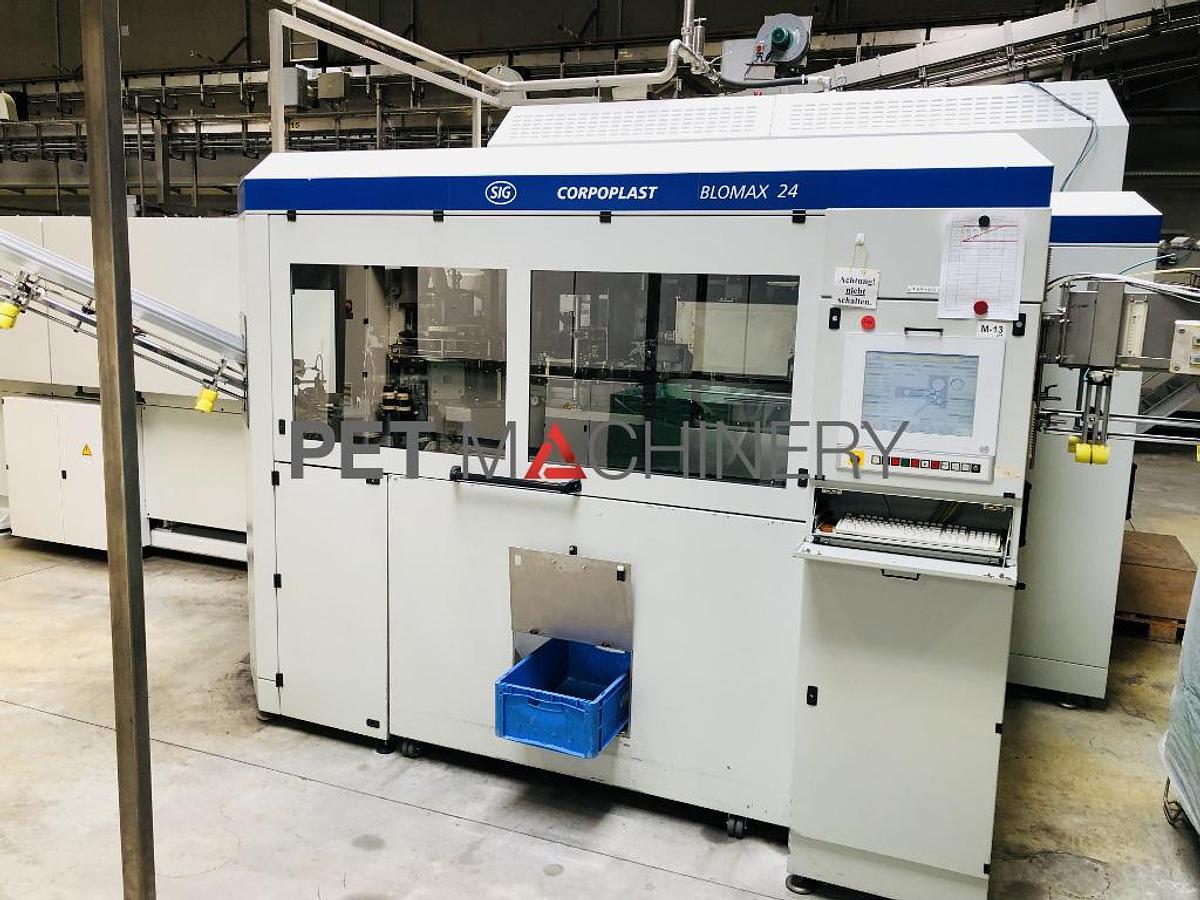

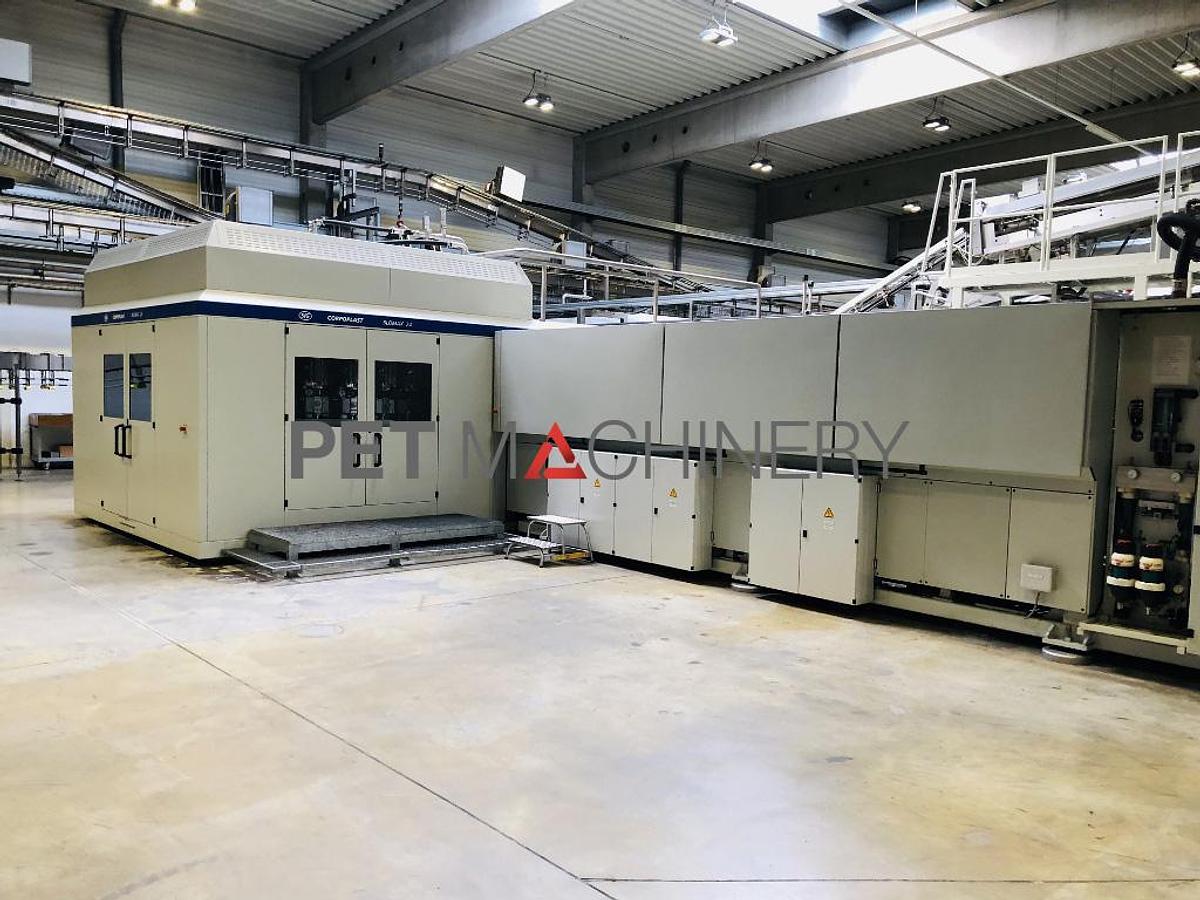

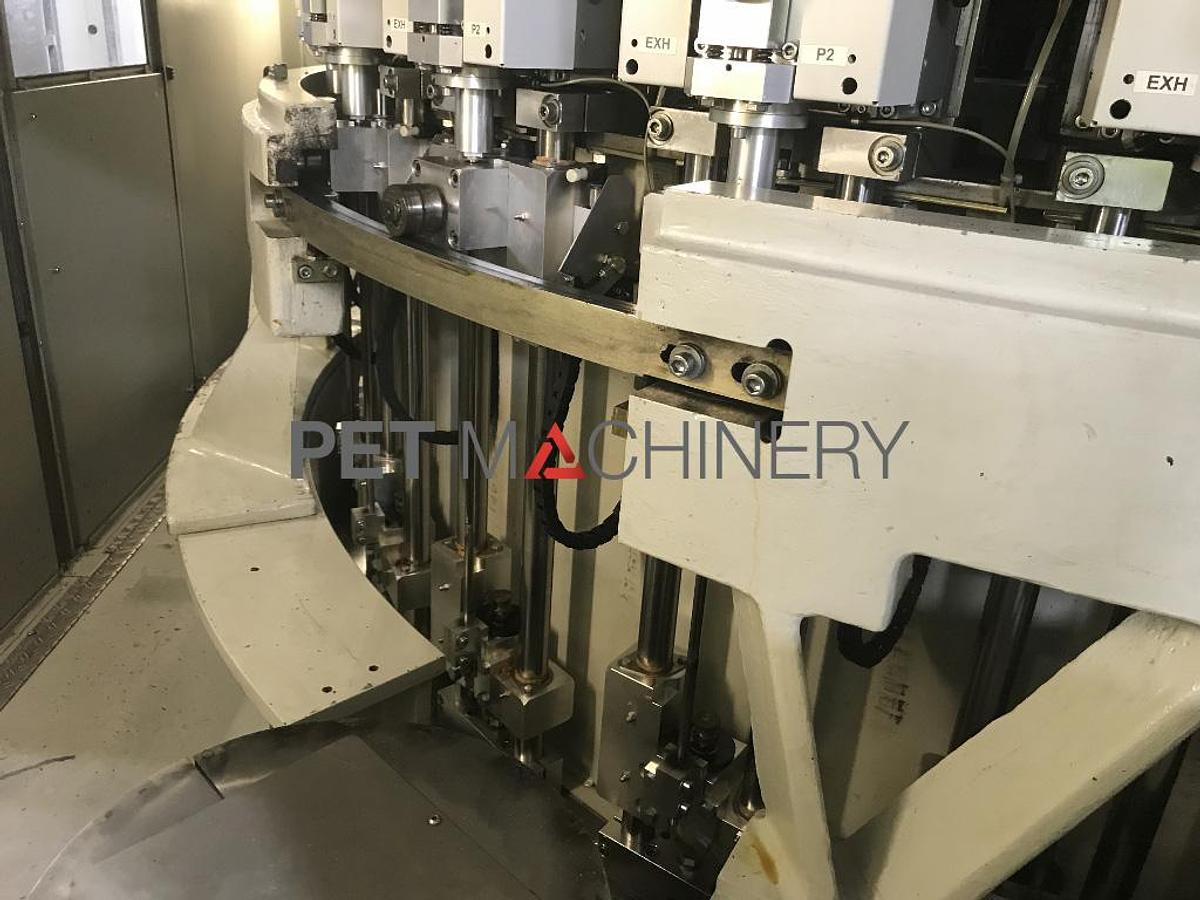

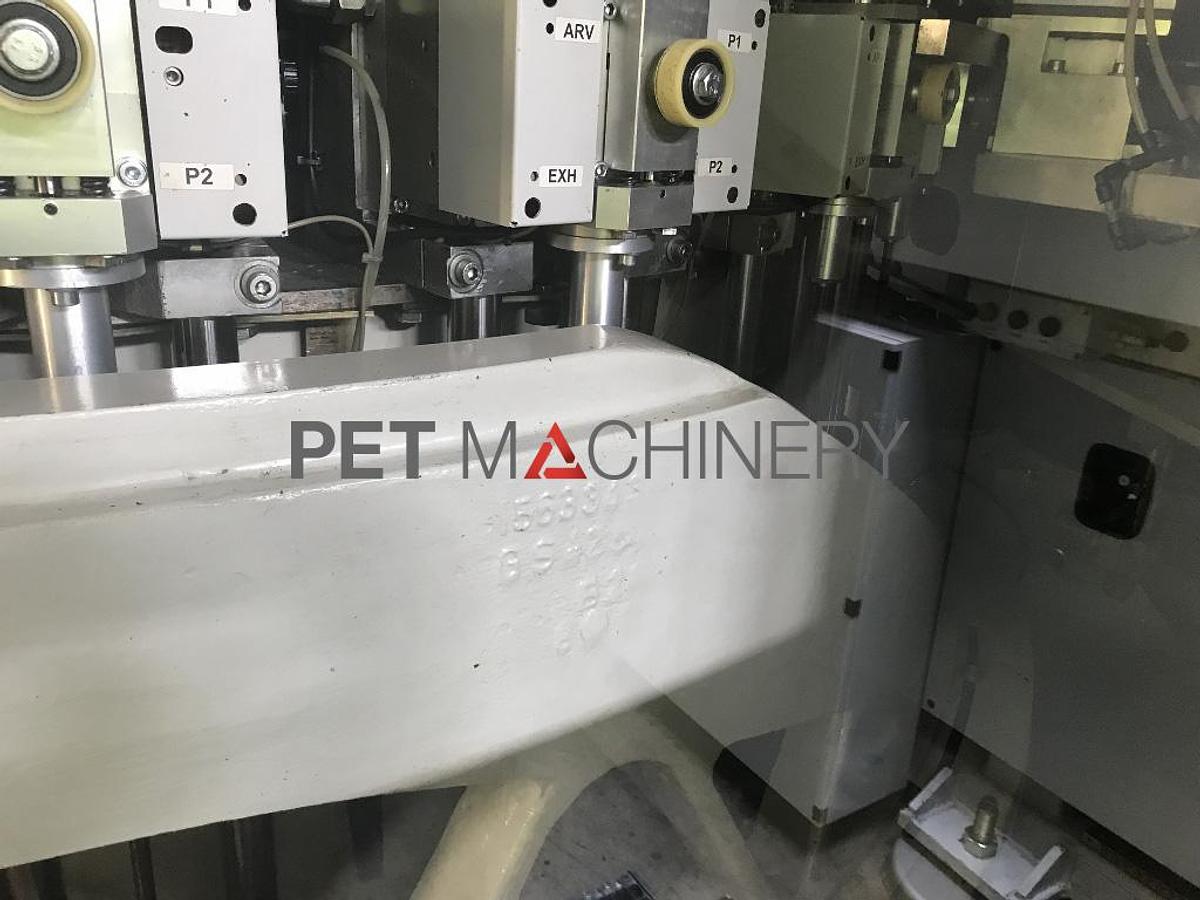

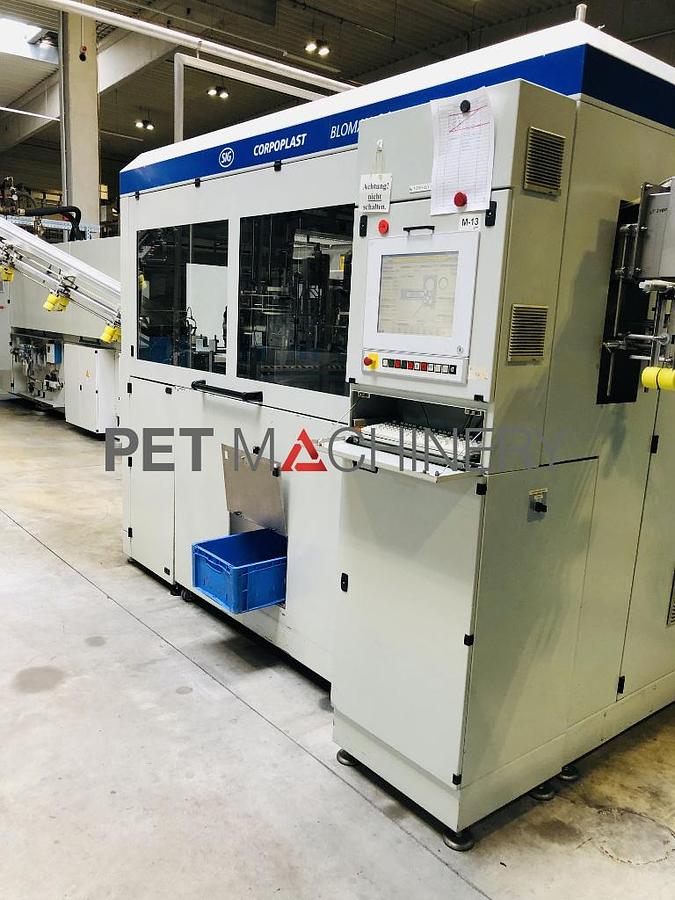

* KHS Blomax 24 PET stretch blow moulding machine (2008)

– blow moulds included: No

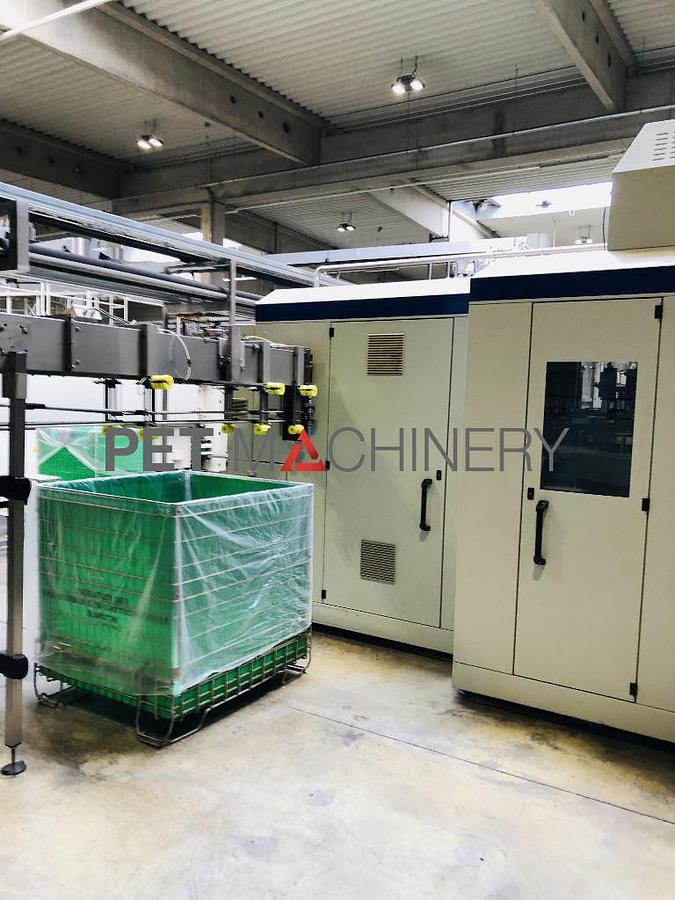

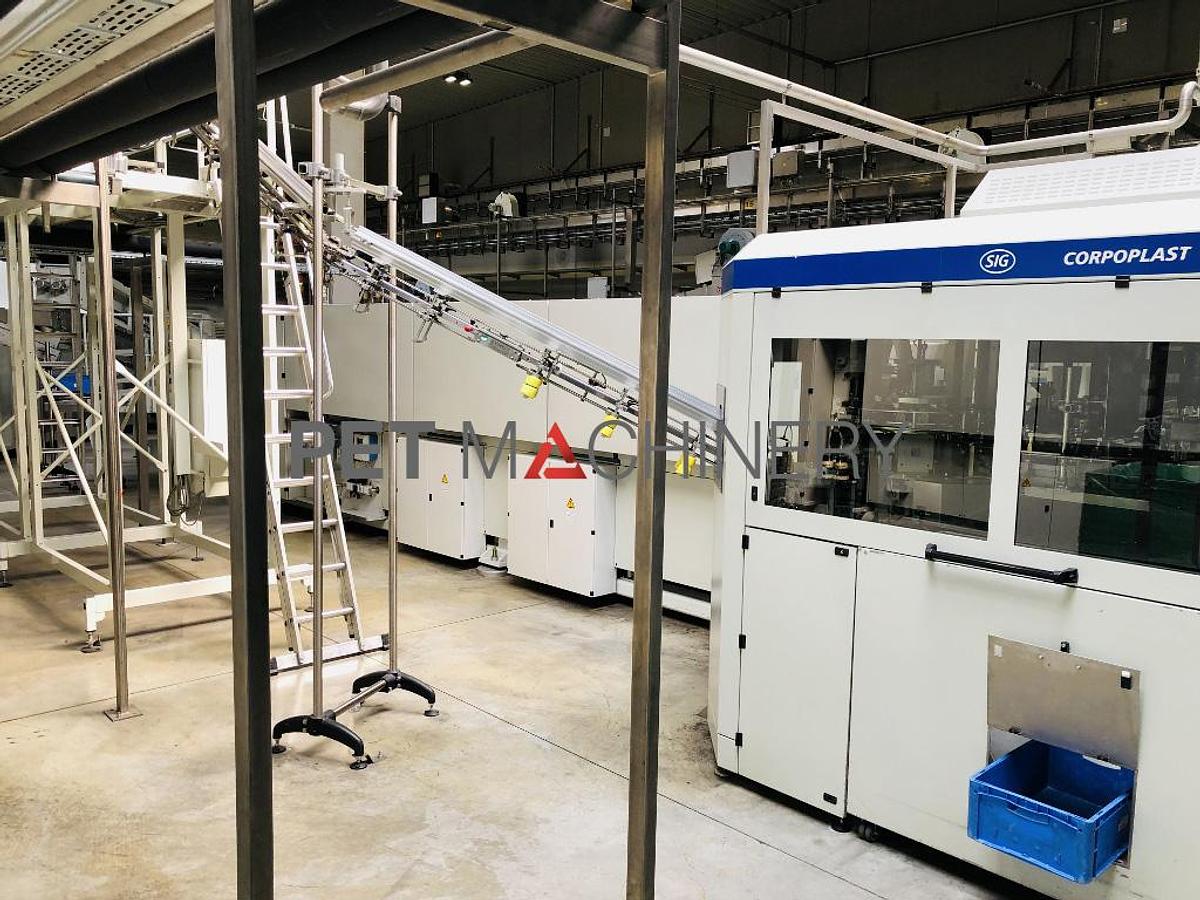

– Includes: Preform tipper Mucki MD3 (2001), preform hopper SBT, preforms elevator HFT, preform conveyor RGTD, strapping band RFT, chute ASTK (Tanner) (2008)

* KHS Innofill EV-VF Filler – Capper (2000)

– No. of filling valves: 176, electronical filling system

– No. of capping heads: 22

– Features: Clean room housing with doors.

– Caps feeding system NSM, 2 storage positions with tipper. Foam cleaning with ECOLAB (2001) 3 dosing units with hot steam.

* KHS Innopro DX65 / KHS Contimix 65/6/T20 Mixer (2001)

– Capacity: 65.000 l/h, 5 components

– Features: Brix measurement (Anton Paar), pumps (Hilge)

* KHS Innocheck CUB Cap and fill level control (2013)

– Features: All-round detection with camera system, pusher in container

* Videojet Laser coder

* Sacmi Opera 300 RF 26T/R S1/E1 labeller (2012)

– Label position: wrap-around, 1 labelling station with label from reel

– Other remarks: 26 bottle plates

KHS Innocheck CUB label control (2015)

– Features: Light barrier on the carousel of the labeling machine. Pusher in container.

* KHS Kisters Innopack SP060V shrink packer and tunnel (2001)

– Packing: Film only, double lane 3×2

– Capacity: 60 cycles/minute

* KHS Innopack CMS 70/2 handle applicator (2009)

– Output capacity: 70 cycles/min., double-track processing

– Laminated handle self-adhesive from the roll, magazines for label strips.

* Conveyor systems:

– Air conveyors: Included (NTS, Mistral blowers, year 2000, pneumatical adjustable rail for 0.5 L and 1.5 L bottles)

– Bottle conveyors: Included (KHS, plastic chain, rigid railings, dry lubrication)

– Pack conveyors: Included (Paxona + Schaefer, year 2009)

* Palletizer: NOT AVAILABLE* Pallet wrapper: NOT AVAILABLE

The above line has been dismantled and packed in sea containers + wooden boxes in December 2023, and has been moved to a warehouse near European port.Photos available of the marking & dismantling, as well as the packing & loading of the equipment.Immediately available.
