Sidel SBO 12 series 2 based bottling line

Price Estimate

There may be an estimate available for this product.
Login or Register to find out more.

Login or Register to add this item to your Watch List.

The dismantled and stored PET bottling line includes:

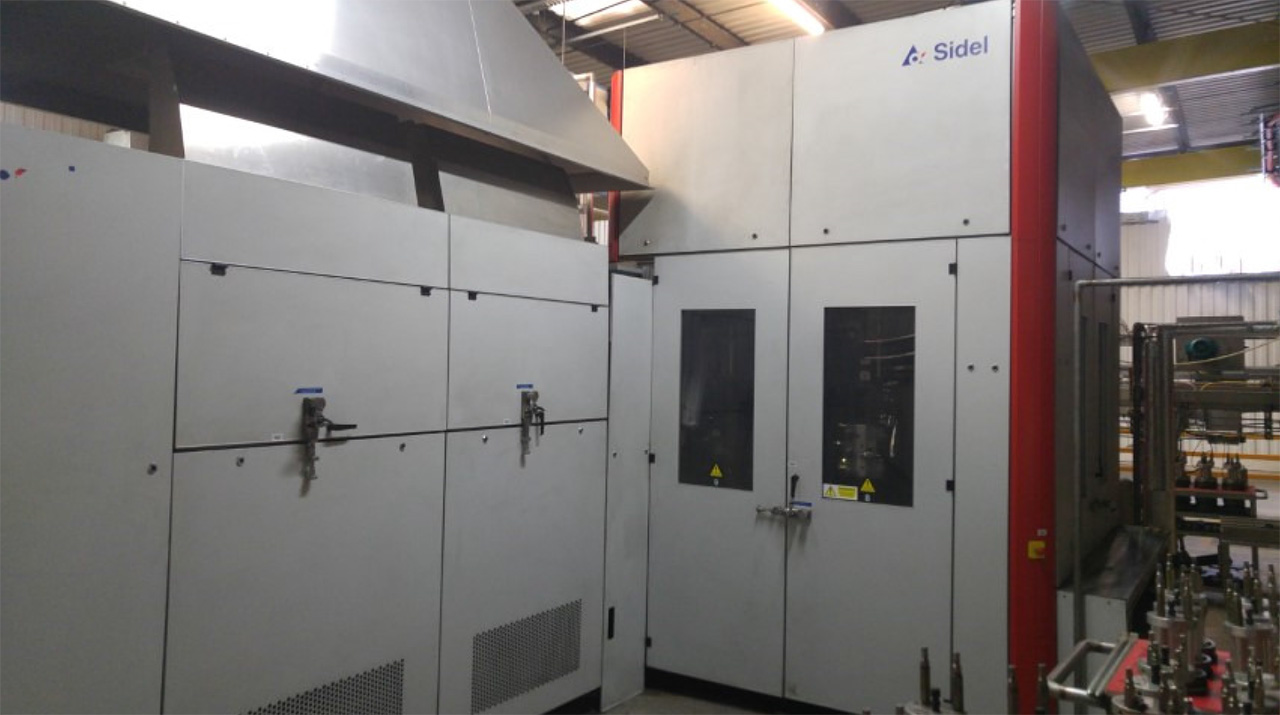

* Sidel SBO 12 series 2 stretch blow moulding machine (2003)
– includes preform hopper/elevator, Gardner & Denver compressor

* Brewpack bottle rinser/dryer (2014)

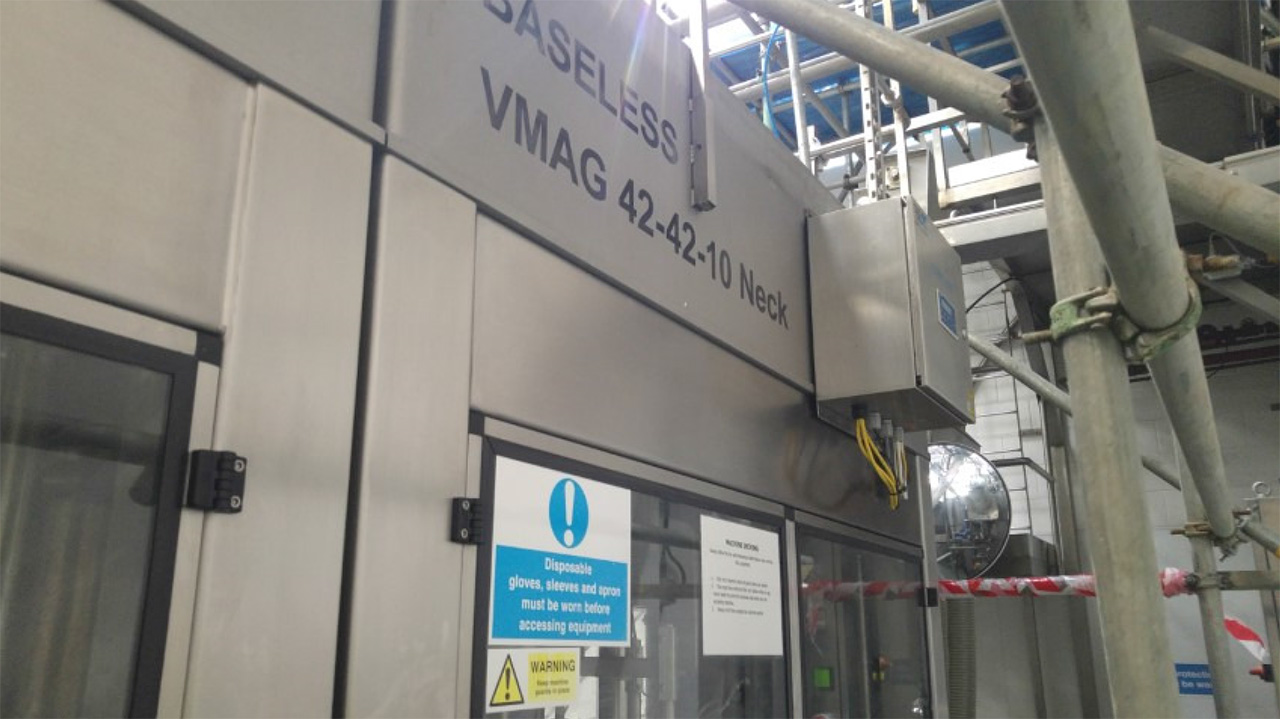

* Metalnova 42-42-10 filler/capper
* Krones Checkmat 731 inspection (2014)
* Kosme Star model 720 16TS1E1 hot melt labeler (2001)

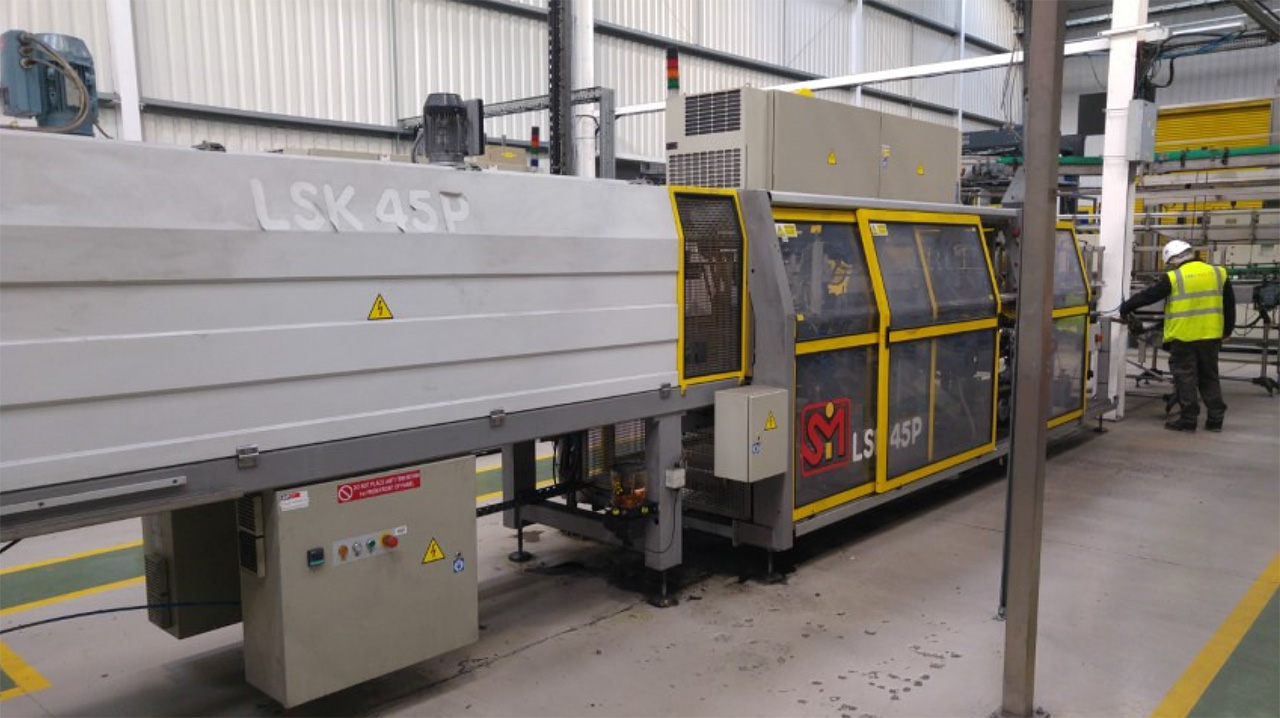

* SMI LSK45p model 9170 tray packer with shrink tunnel
* 2 x MJ Maillis / Siat pallet wrappers

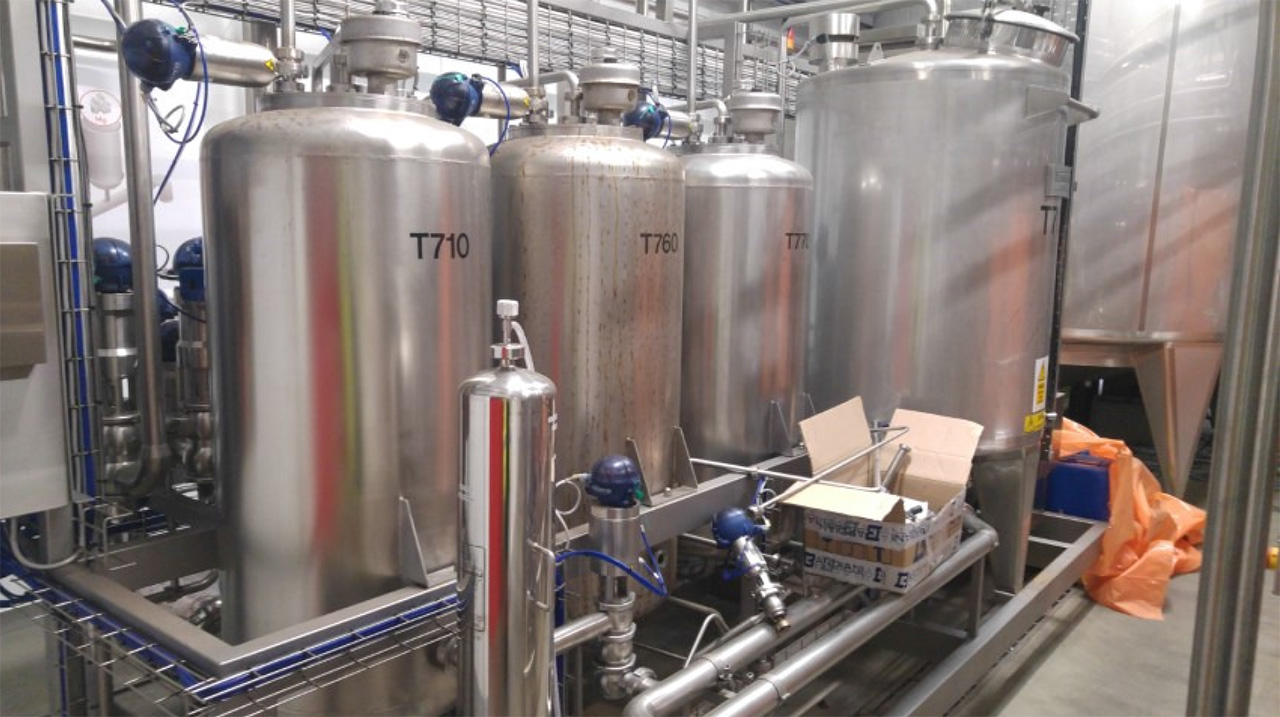

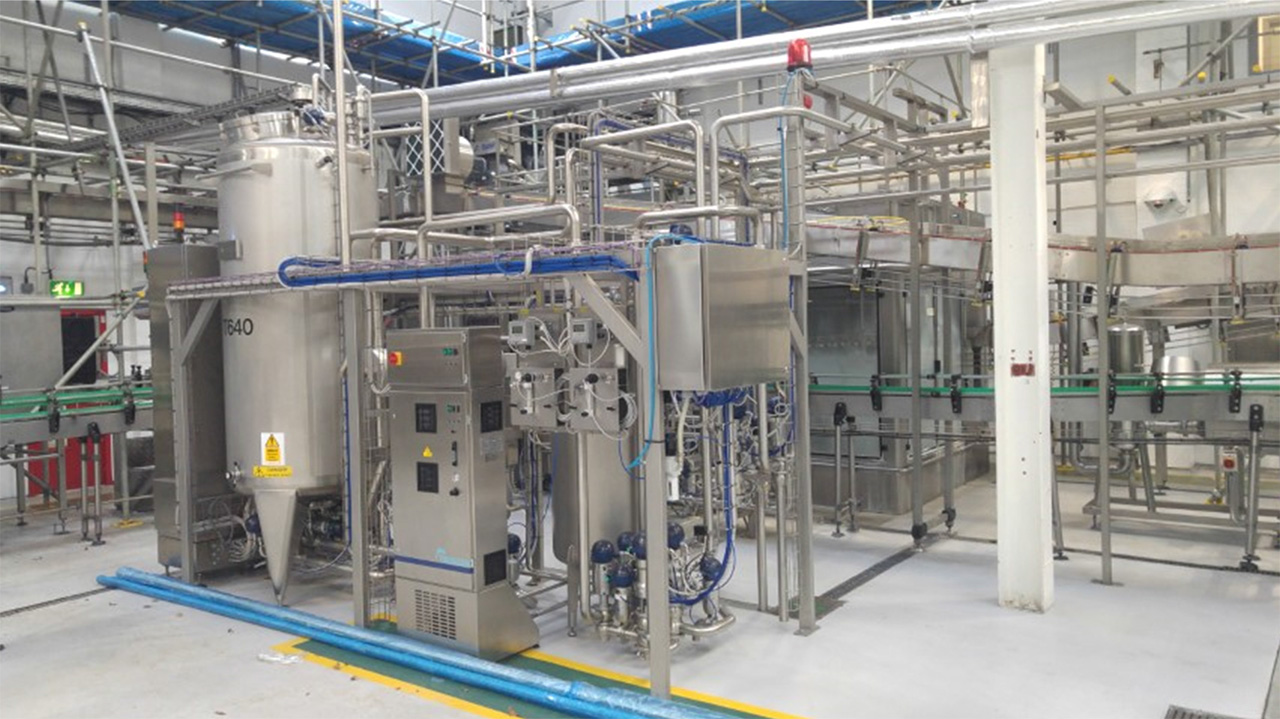

* Mix Plant and control comprising Siemens Simatic Touch control, with:
– 5 Miteco stainless steel pumps, valves
– APV pumps
– 2 x stainless steel tanks 1.8m dia x 2m high(T510 & T500) – all mounted on stainless steel skid frame.
– Miteco 2.8m dia x 3m high stainless-steel tank (T150)
– Miteco 1.6m dia x 1.8m high stainless-steel tank(T870)
– Pal stainless steel filter (2005)
– Stainless steel additive tank (T640)
– Stainless steel pressure vessel (T151)
– 2 pumps

* Central Bottling control panel
* Invertor control panel for compressor
* Air conveyor control panel
* Hiterma twin fan chiller

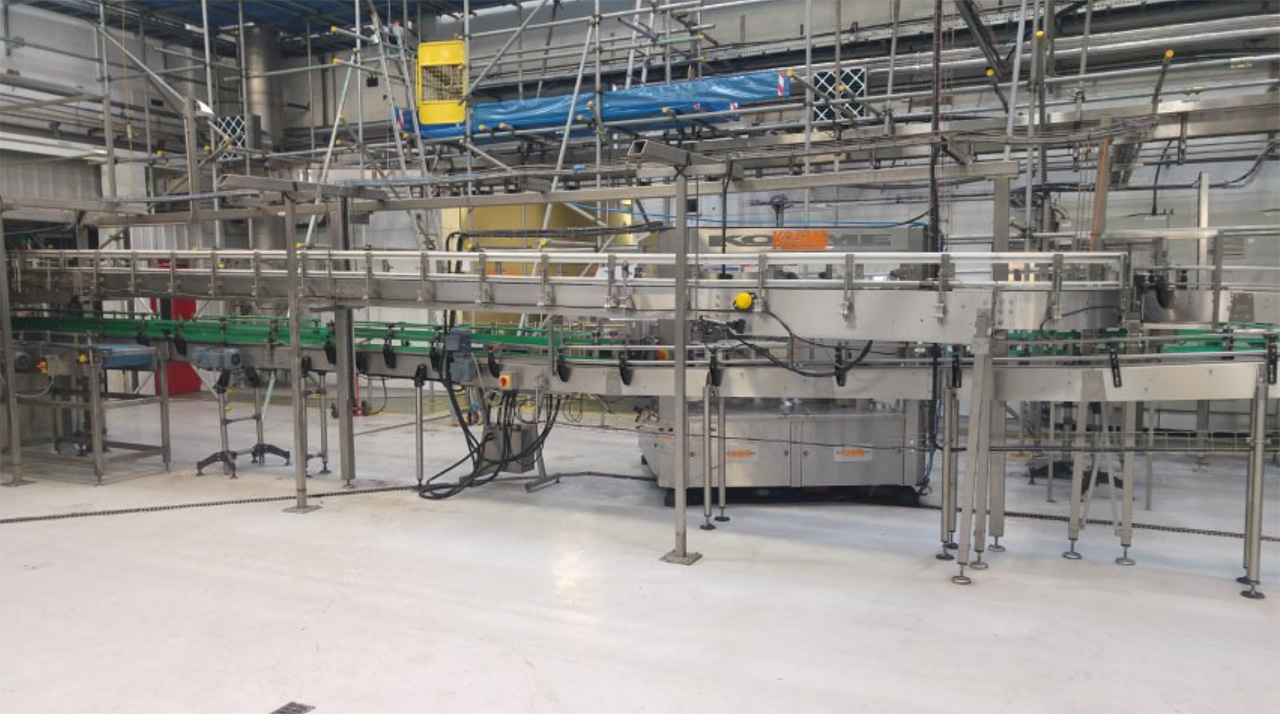

* Large quantity of stainless-steel air and slat transfer conveyor including 180 degree conveyor in yard
* Change parts with purpose-built racks
* 3 x Dalmec PMC manipulator reel lifters
* 6 Fan chiller with stainless steel buffer
* Reflex stainless-steel scanner unit with spectrum TX
* Large quantity of dismantled stainless-steel pipe work and valves
* Large quantity of dismantled stainless-steel air / slat transfer conveyor with fans and controls
* Pre-tray wrap batching conveyor
* Central bottling palletising conveyors with 4 section control (2005)
* Contents of two 40-foot shipping containers to include:
– Sidel infeed station
– machine panels and guards
– welded steel air receiver and sundry components from the line

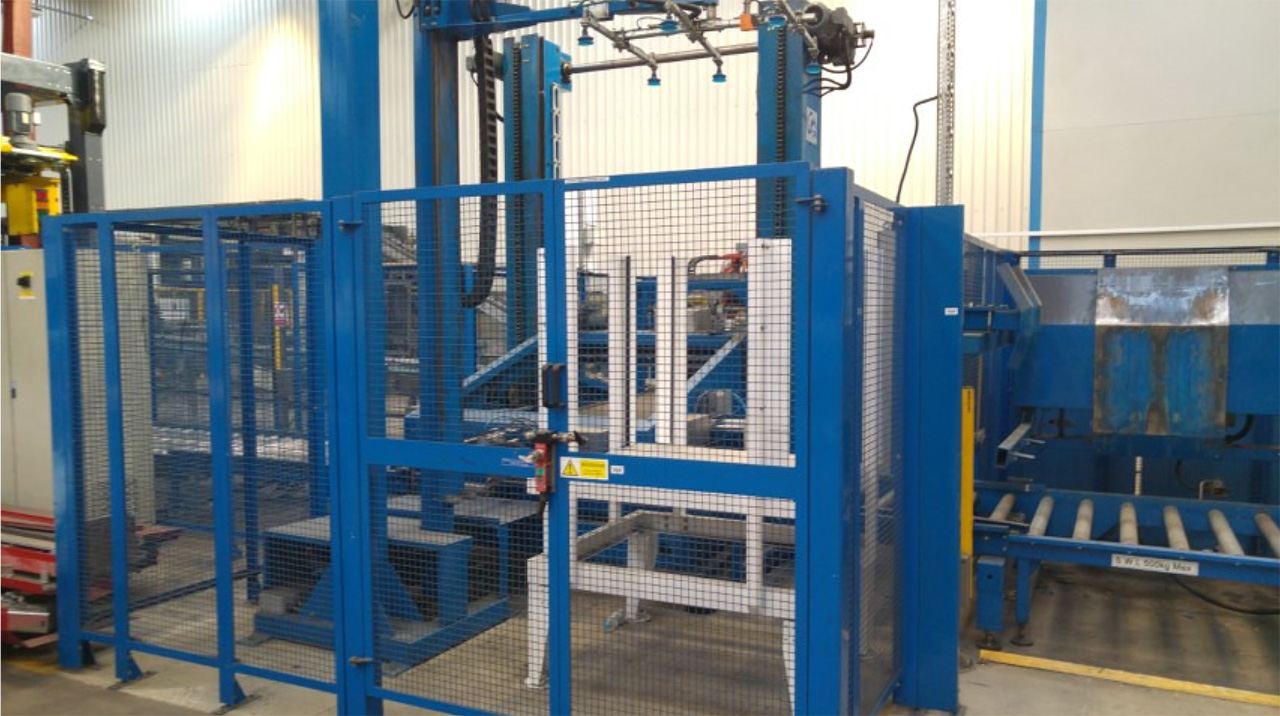

Photos are for illustration purposes only, the above line has been dismantled and put into storage. Inspection is possible upon appointment on May 21, 2019.
